Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 211
Axis Configuration Examples for the PowerFlex 527 Drive Chapter 10
6. Select the Motor category.
The Motor Device Specification dialog box appears.

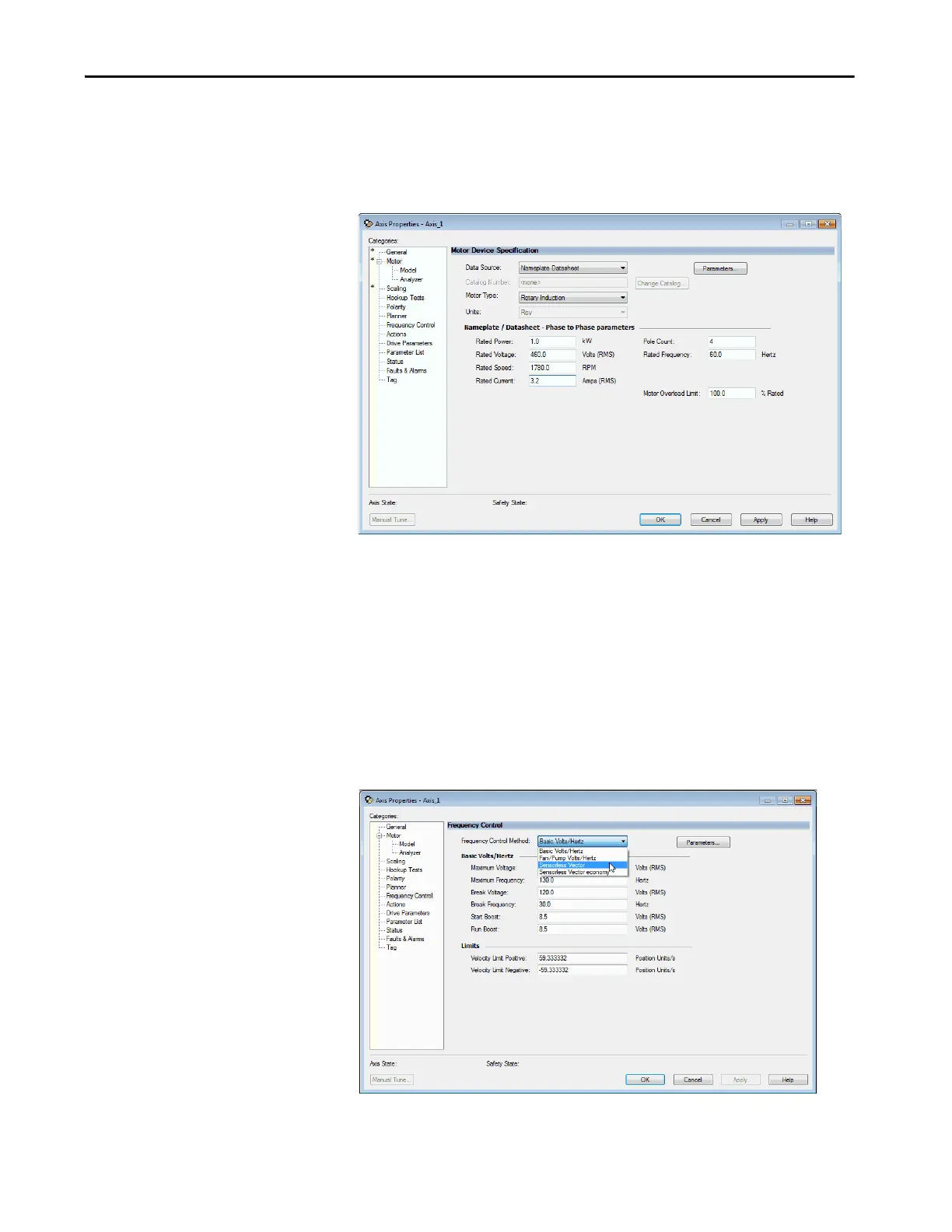

Figure 88 - Example 1: Frequency Control with No Feedback, Motor Device Specification Dialog
Box
7. From the Data Source pull-down menu, choose Nameplate data sheet.
This selection is the default setting.
8. From the Motor Type pull-down menu, choose Rotary Induction.
9. From the motor nameplate or data sheet, enter the phase-to-phase
values.
10. Click Apply.
11. Select the Frequency Control category.
The Frequency Control dialog box appears.
Figure 89 - Example 1: Frequency Control with No Feedback, Frequency Control Dialog Box
12. From the Frequency Control Method pull-down menu, choose the
method appropriate for your application.
