Appendix B Out of Box Configuration for PowerFlex Drives
PowerFlex Out-of-Box
Configuration
Apply these out-of-box settings first before configuring for your application.
This information applies to only the PowerFlex® drive.
Recommended Out-of-Box Settings

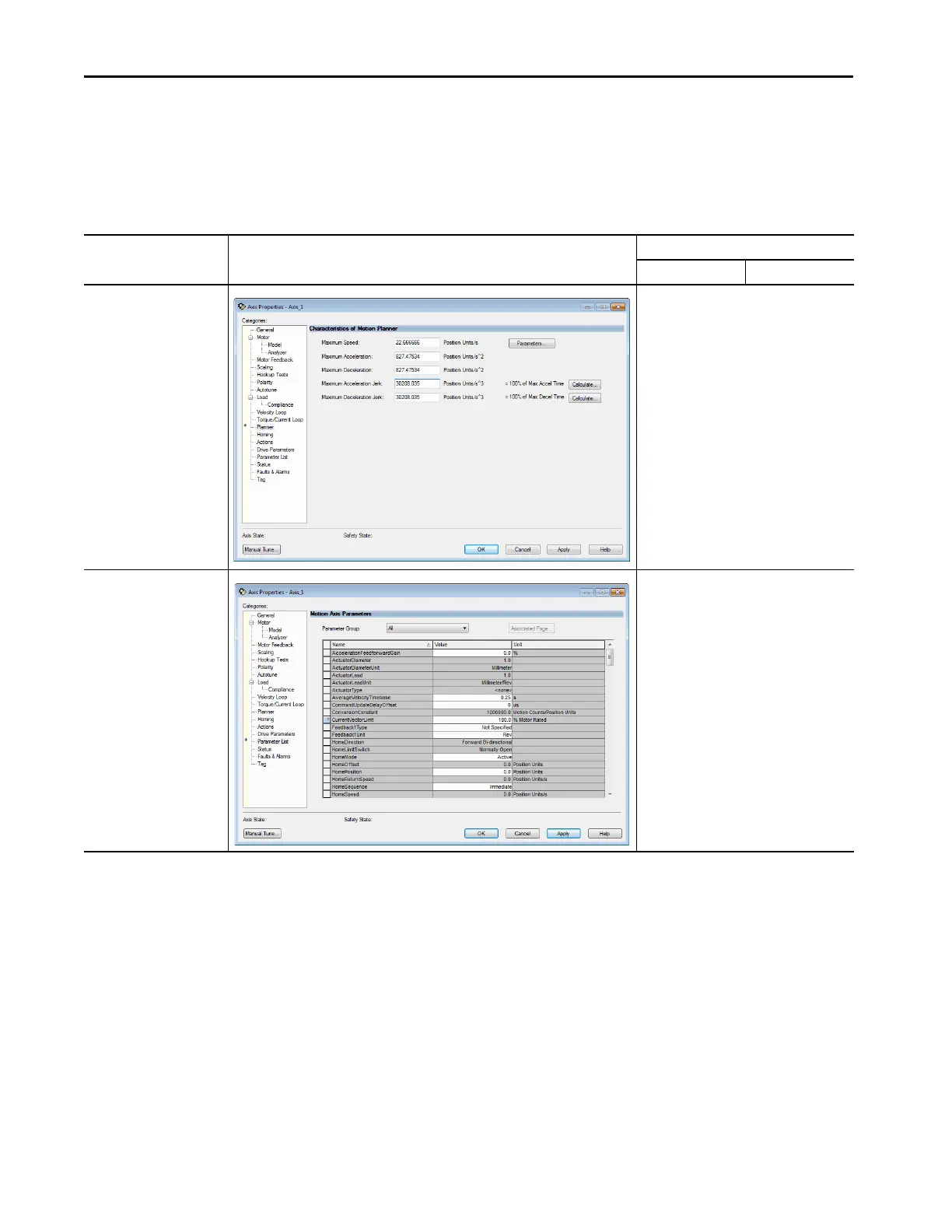

Settings in Studio 5000
Logix Designer Application
Example Recommended Configuration
PowerFlex 527 PowerFlex 755
Ramp Velocity Limit
120% of Motor Rated Speed for Induction
Motors
Current Vector Limit
180% of Motor Rated Current

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
