Allen-Bradley PowerFlex 755 User Manual

230 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 11 Commission an Axis
Run a Motor Feedback Test

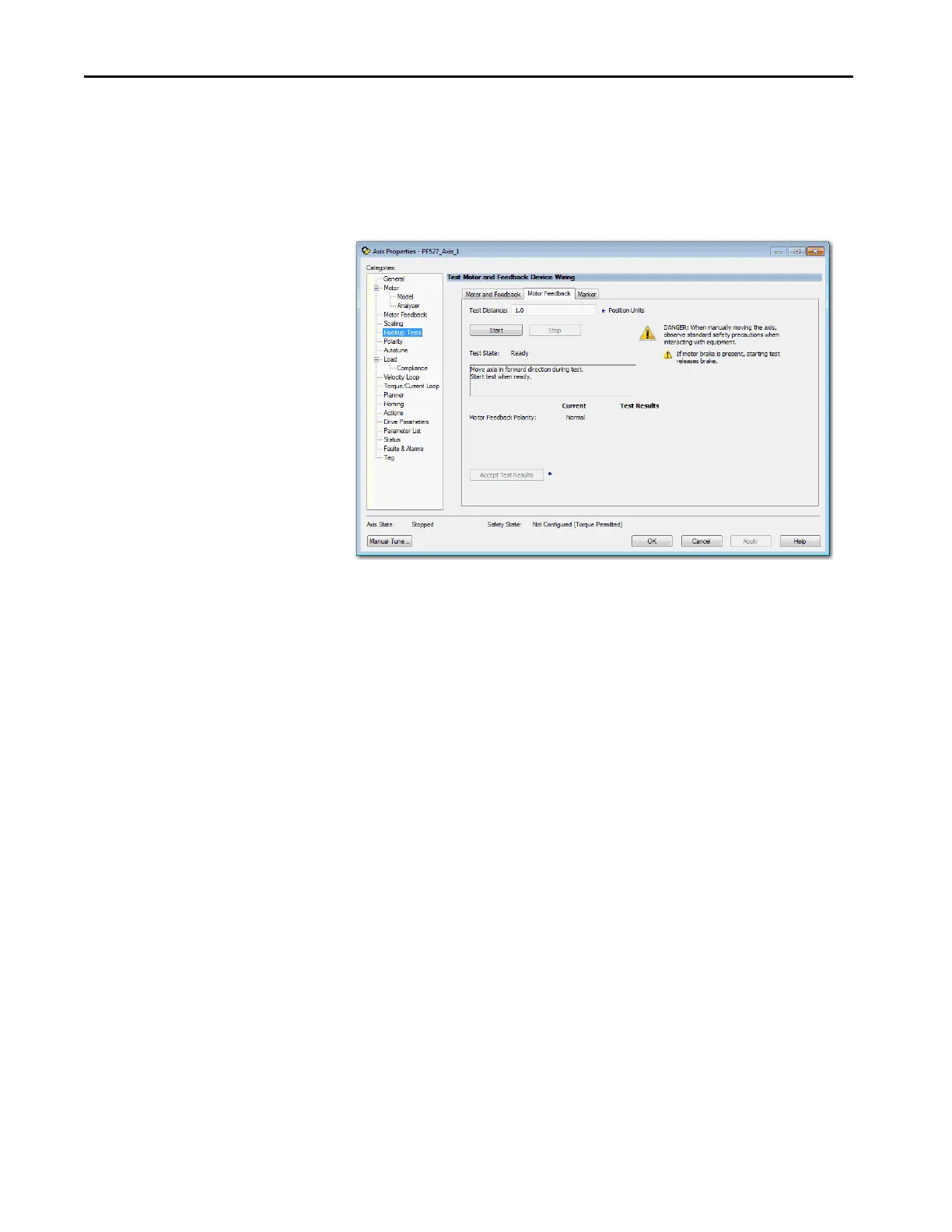

The Motor Feedback Test checks the polarity of the motor feedback. Follow
these steps to perform a Motor Feedback test.
1. From the Hookup Tests dialog box, click the Motor Feedback tab.
2. Enter the Test Distance.
3. Click Start.
Run a Marker Test
The Marker Test checks that the drive receives the marker pulse from the
position feedback device. You must manually move the axis for this test. Follow
these steps to perform a Marker test.
1. From the Hookup Tests dialog box.
2. Click the Marker tab.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
