Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 21
Chapter 2
Create a Project for Integrated Motion on the
EtherNet/IP Network
This chapter describes how to configure an integrated motion project in the
Logix Designer application.
Create a Controller Project
Follow these instructions to create a project.

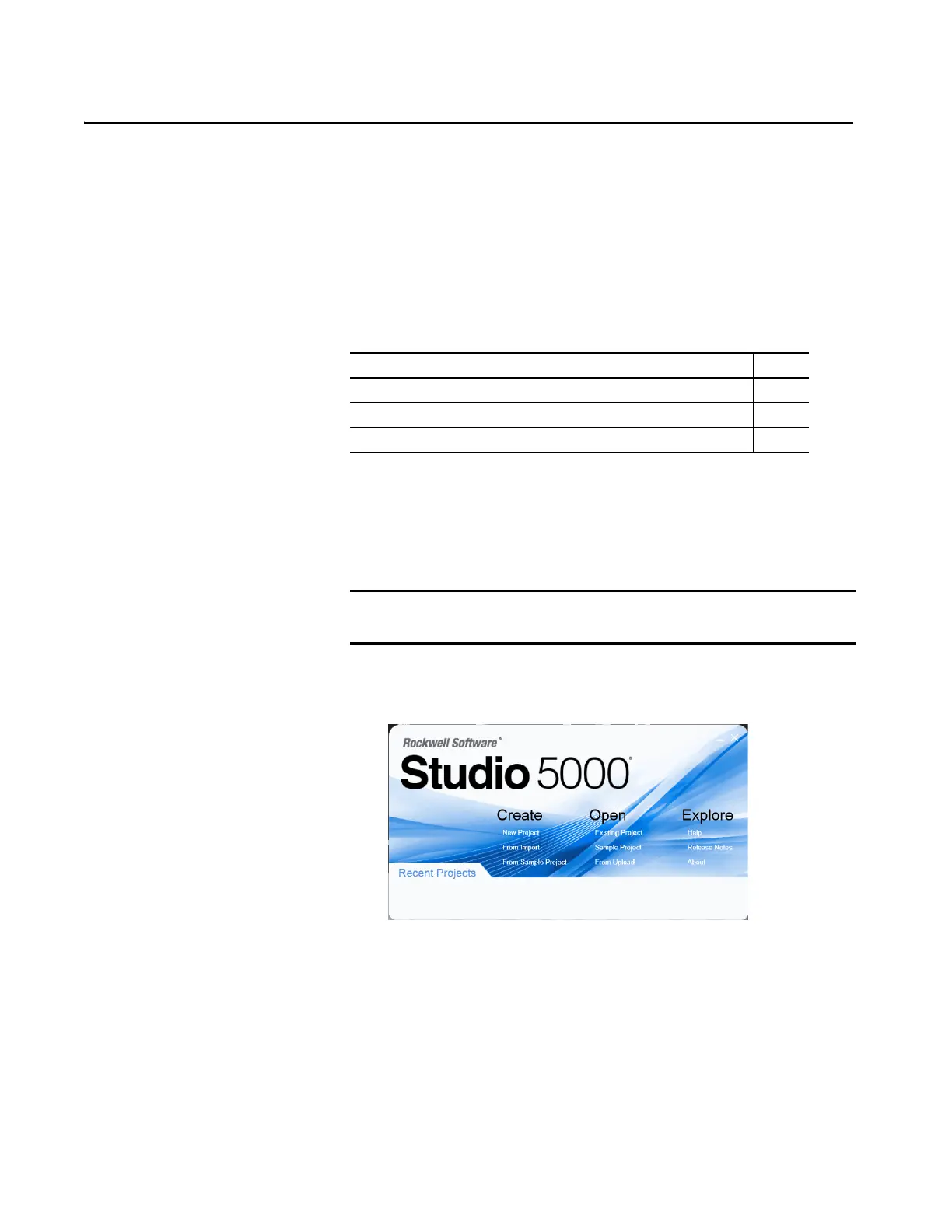

1. On the Studio 5000® dialog box, choose Create New Project.
Topic Page
Create a Controller Project 21
Set Time Synchronization 24
Add an Ethernet Communication Module 26
IMPORTANT For Motion and Safety applications, you must use a GuardLogix® or Compact
GuardLogix controller.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
