Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 279
Manual Tune Chapter 13

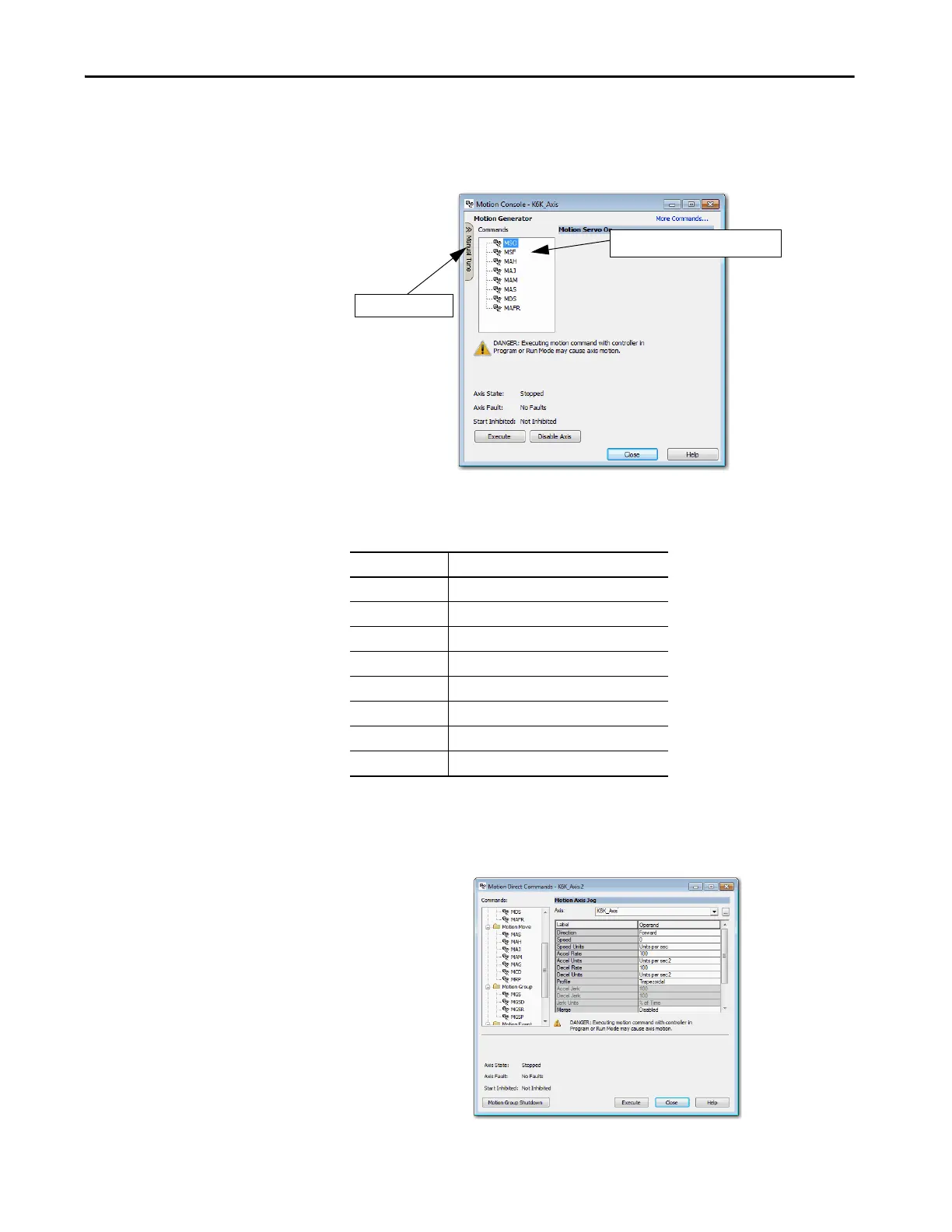

Motion Generator and Motion Direct Commands
The commands on the Motion Generator give you basic control of a closed-
loop servo axis.
The following instructions are available on the Motion Generator dialog box.
When you click the More Commands link on the Motion Generator, you are
taken to the Motion Direct Commands dialog box. In this dialog box, you can
observe the effects of the manual tune. You can turn the axis on and off, home
and move the axis, and reset faults.
Table 62 - Available Instructions
Command Description
MDS Motion Drive Start
MSO Motion Servo On
MSF Motion Servo Off
MAH Motion Axis Home
MAJ Motion Axis Jog
MAM Motion Axis Move
MAS Motion Axis Stop
MAFR Motion Axis Fault Reset
Commands, also called instructions.
Manual Tune Tab

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
