Axis Configuration Examples for the PowerFlex 527 Drive Chapter 10
Example 3: Position Control
with Motor Feedback
Follow these steps to configure the induction motor axis properties.
1. In the Controller Organizer, right-click an axis and choose Properties.
2. Select the General category.
The General and Associated Module dialog box appears.

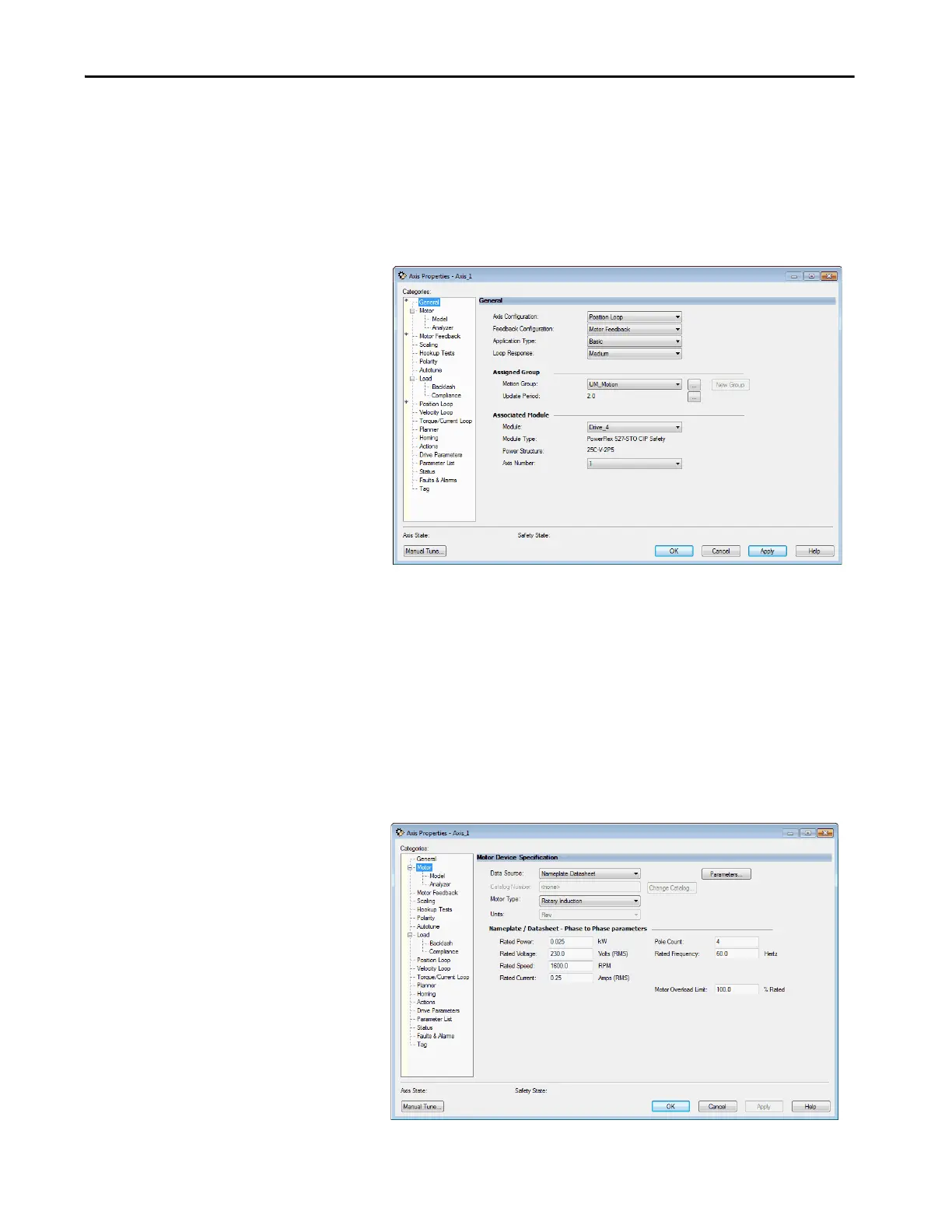

Figure 97 - Example 3: Position Control with Motor Feedback, General Dialog Box
3. From the Axis Configuration pull-down menu, choose Position Loop.
4. From the Module pull-down menu, your PowerFlex 527 drive.
The Module Type and Power Structure fields populate with the chosen
drive catalog number.
5. Click Apply.
6. Select the Motor category.
The Motor Device Specification dialog box appears.
Figure 98 - Example 3: Position Control with Motor Feedback, Motor Device Specification
Dialog Box
