Chapter 10 Axis Configuration Examples for the PowerFlex 527 Drive
14. Select the Scaling category and edit the values as appropriate for your
application.
15. If you changed any settings, click Apply.
16. Select the Actions category.
The Actions to Take Upon Conditions dialog box appears.
From this dialog box, you can program actions and change the action for
exceptions (faults).
Some out-of-box (OOB) settings must be applied here. See Appendix C
on page 339
for more information.
17. Select the Parameter List category.
The Motion Axis Parameters dialog box appears.

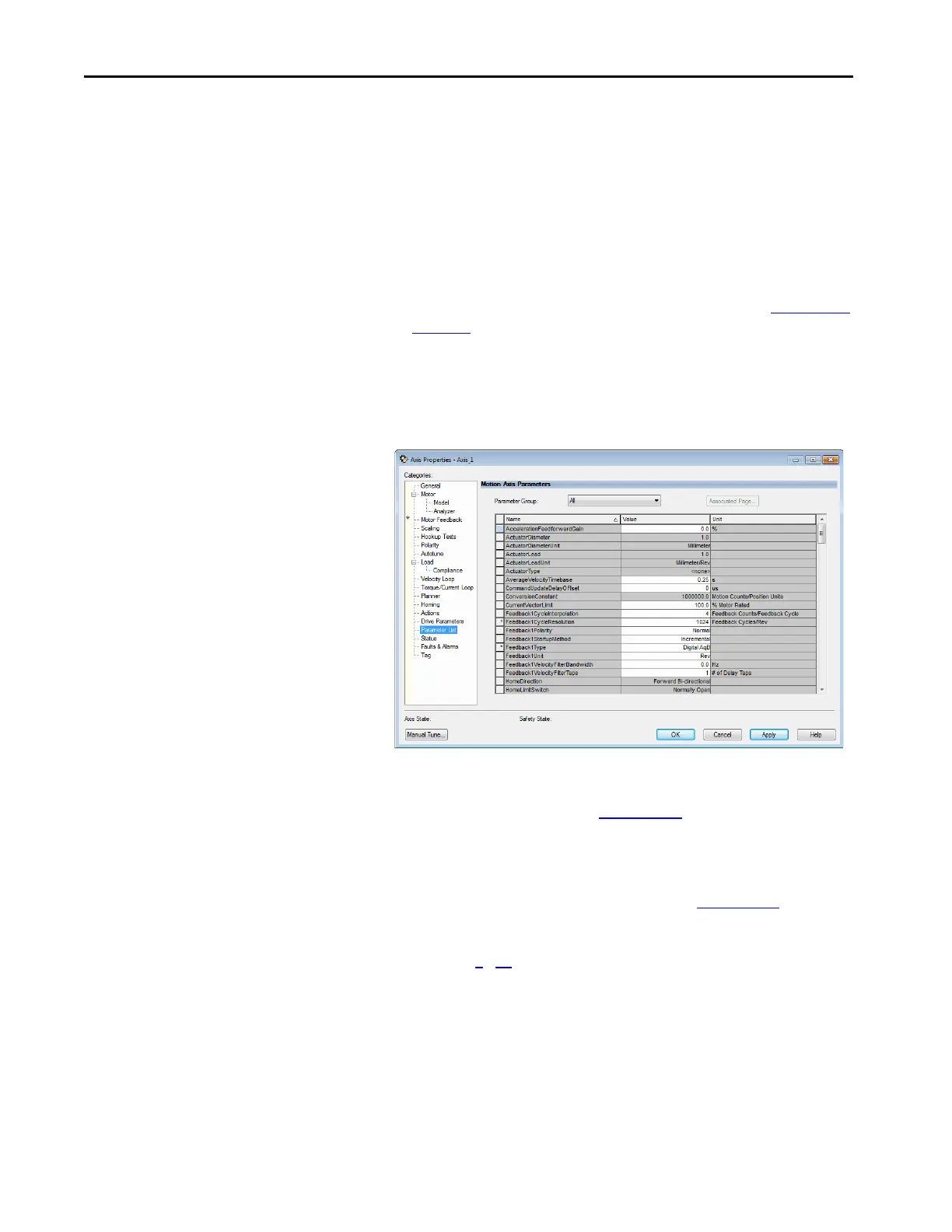

Figure 96 - Example 2: Velocity Control with Motor Feedback, Motion Axis Parameters Dialog
Box
From this dialog box, you can program actions and change the action for
exceptions (faults). See the PowerFlex 527 Adjustable Frequency AC
Drive User Manual, publication 520-UM002
for more information.
To obtain the best performance from the drive, regardless of which
control method you are using, configure the recommended out-of-box
settings. These settings are described in the PowerFlex 527 Adjustable
Frequency AC Drive User Manual, publication 520-UM002
.
18. Click OK.
19. Repeat steps 1
…18 for each induction motor axis.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
