Configure Integrated Motion Using a PowerFlex 755 Drive Chapter 5
Choose Nameplate as the Motor Data Source
The Nameplate option requires you to enter the motor specification
information. You can find the information on the hardware nameplate or
product data sheets.

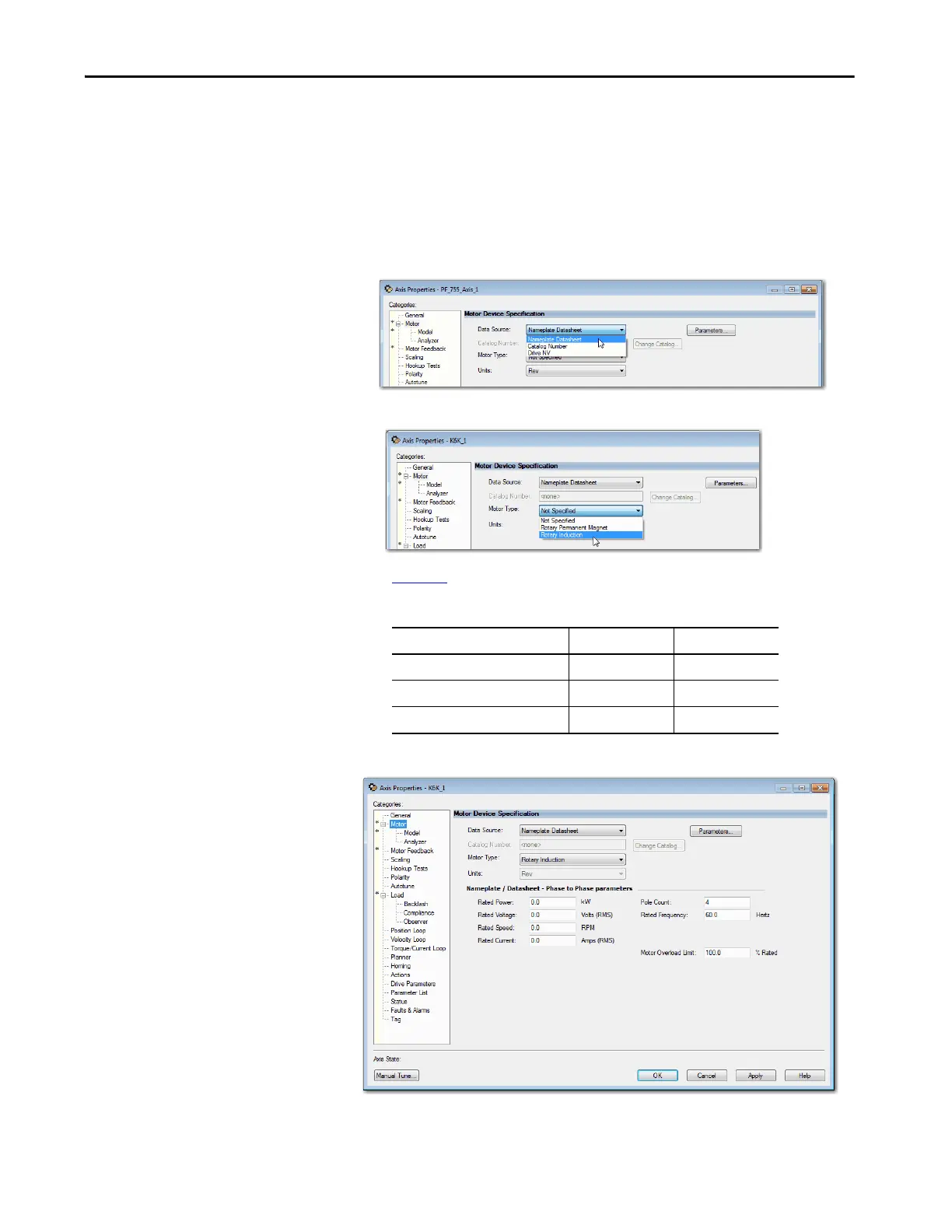

1. From the Motor dialog box of Axis Properties, choose Nameplate data
sheet.
2. Choose a motor type.
Table 37
shows the motor types that are available.
Notice that the motor information fields display zeros.
Table 37 - Motor Types
Motor Type PowerFlex 755 PowerFlex 527
Rotary Permanent Magnet Yes No
Linear Permanent Magnet No No
Rotary Induction Yes Yes
