Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 289
Chapter 14
Status, Faults, and Alarms
There are four ways to find and view faults and alarms:
• Fault and Alarm Log
•QuickView® Pane
• Tag Monitor, see the individual fault-related attributes
•Drive Status Indicators
Faults and Alarms Dialog Box
The Faults and Alarms dialog box displays the status of faults and alarms in the
controller for an axis. The display is read-only except for the ability to clear
logs. Fault and alarm entries are displayed only when you are online with a
controller.

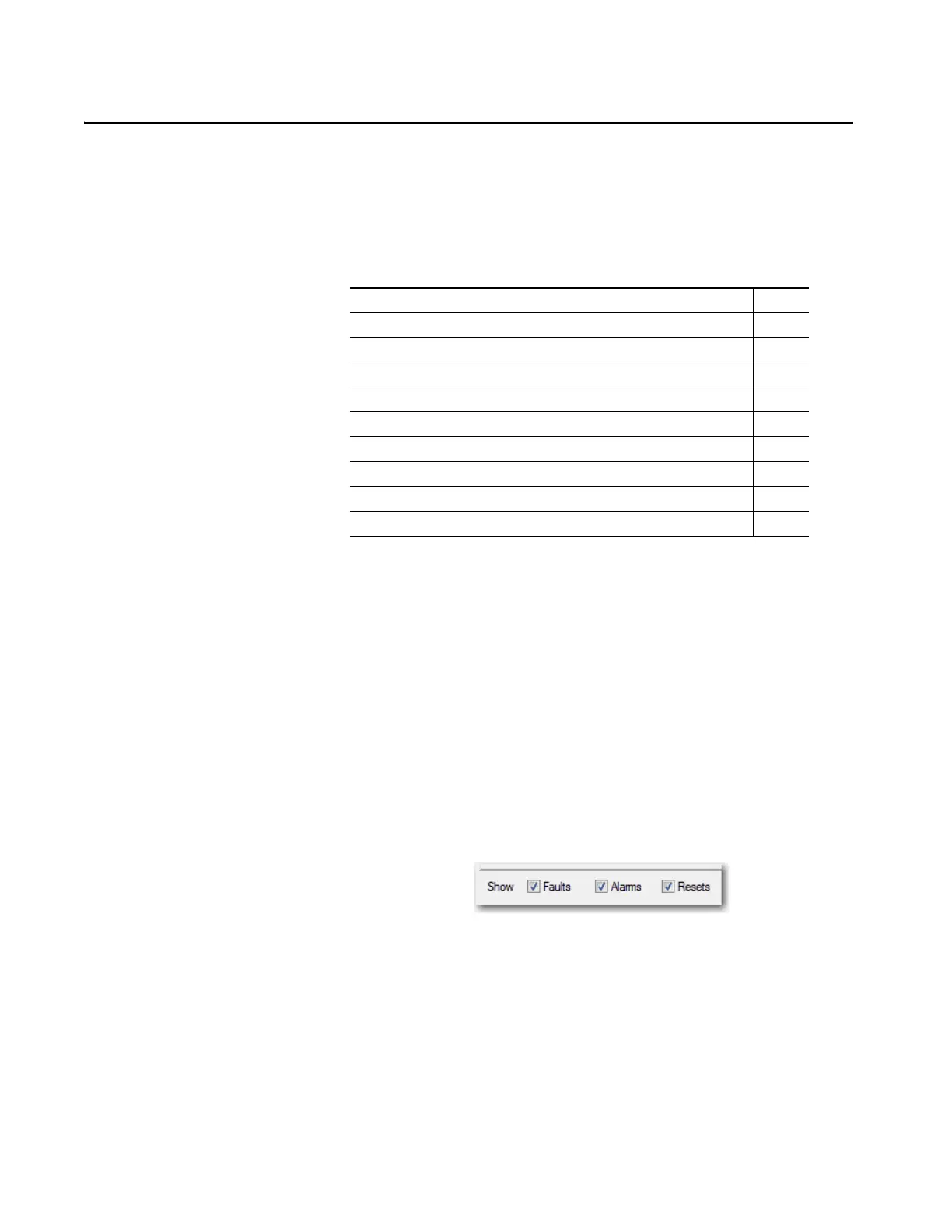

When online, check or clear the checkboxes in the Show row to show or hide
the specified group of entries. Only the last 25 faults and alarms display.
Topic Page
Faults and Alarms Dialog Box 289
QuickView Pane 291
Data Monitor 292
Drive Status Indicators 292
Connection Faults and Errors 292
Troubleshoot Faults 293
Manage Motion Faults 293
Configure the Exception Actions for AXIS_CIP_DRIVE 294
Inhibit an Axis 297

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
