Allen-Bradley PowerFlex 755 User Manual

288 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 13 Manual Tune
Some examples include the following:
•Watch-window:
Quick Watch tag name = Axis_y.ActualPosition or =
Axis_y.ActualVelocity
•New Trend with Tags:
Axis_y.ActualPosition or = Axis_y.ActualVelocity
• Axis Properties:
Status dialog box = Axis_y.ActualPosition or =
Axis_y.ActualVelocity
5. Click Execute.
The controller performs a controlled axis move.

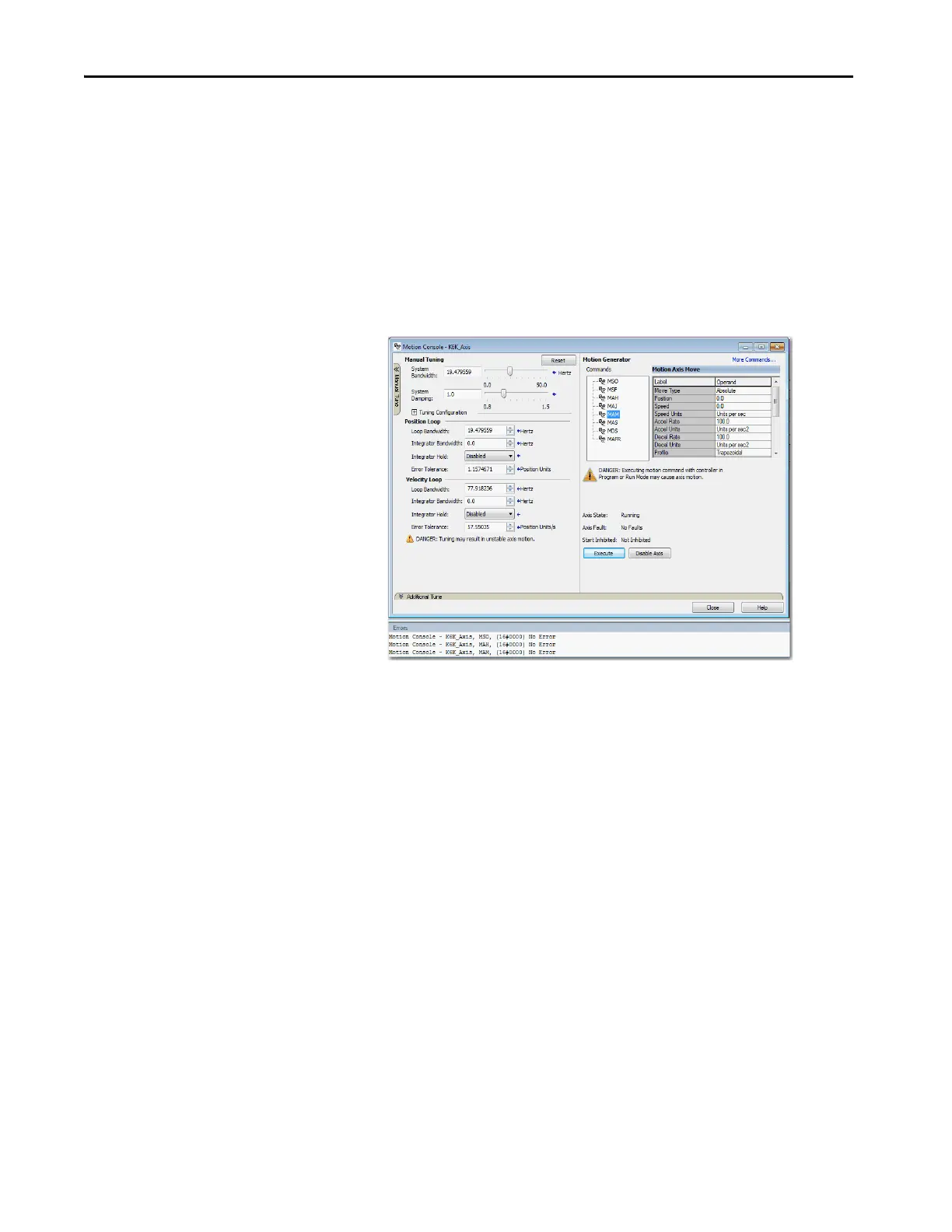

The Motion Console dialog box appears:
•Axis State: Running
• Axis Faults: No Faults
The Results window displays No Error.
6. Observe and verify the Axis response.
The axis motion moves according to the configured MAM settings:
– If the settings and response are satisfactory, then tuning is finished
and you can close Manual Tune.
– If the settings or responses are not satisfactory, stay in Manual Tune
and adjust the parameters.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
