Chapter 8 Configuration Examples for a Kinetix Drive

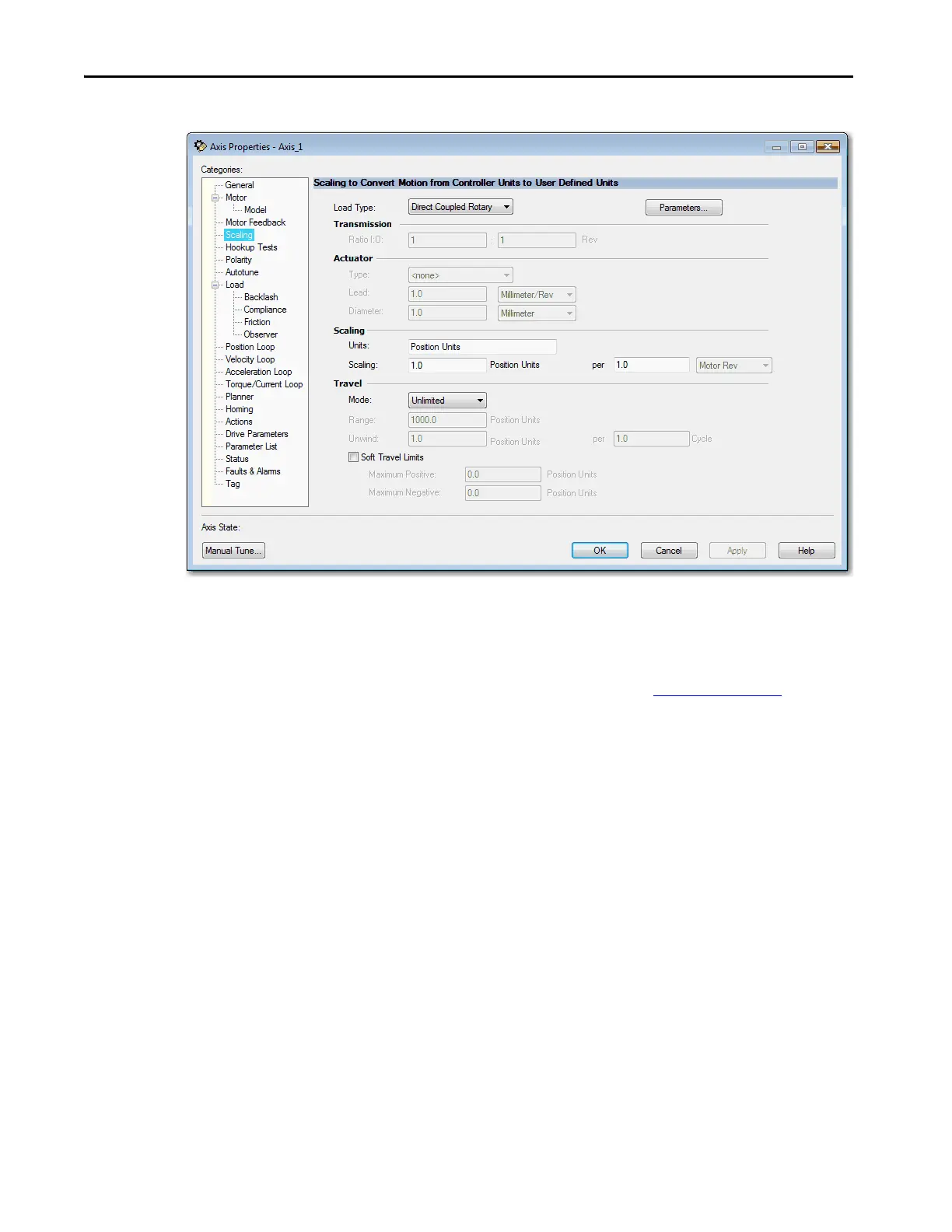

Figure 26 - Example 1: Position Loop with Motor Feedback Only, Scaling Dialog Box

6. Choose the Load Type.

7. Enter the Scaling Units.

8. Choose the Travel Mode.

For more information about Scaling, see Scaling on page 222

9. Click Apply.

You are now finished configuring the axis for Position Loop with Motor

Feedback.
