Configuration Examples for a Kinetix Drive Chapter 8
4. Click Change Catalog and choose your motor, for example, catalog
number VPL-B0631T-C.

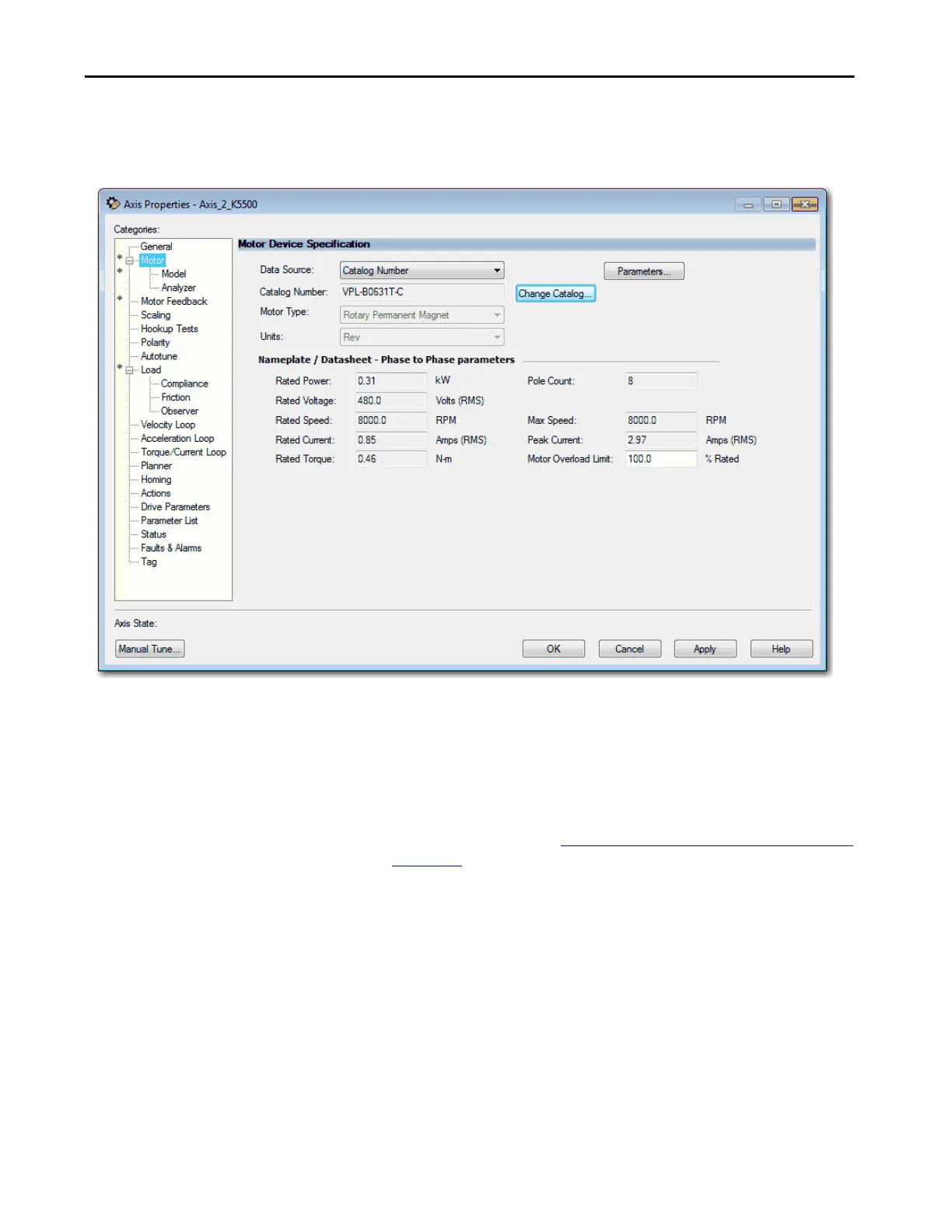

Figure 40 - Example 4: Velocity Loop with Motor Feedback, Motor Dialog Box
When you select the Catalog Number for the motor specification, the
VPL-B0631T-C motor is in the Motion Database. The specification
data for this motor is automatically completed for you.
If the motor you are using is not in the Change Catalog list, then it is not
in the Motion Database. You must input the specification data or add a
custom motor to the Motion Database that can be selected.
For more information, see Choose Nameplate as the Motor Data Source
on page 52.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
