Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 195
Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

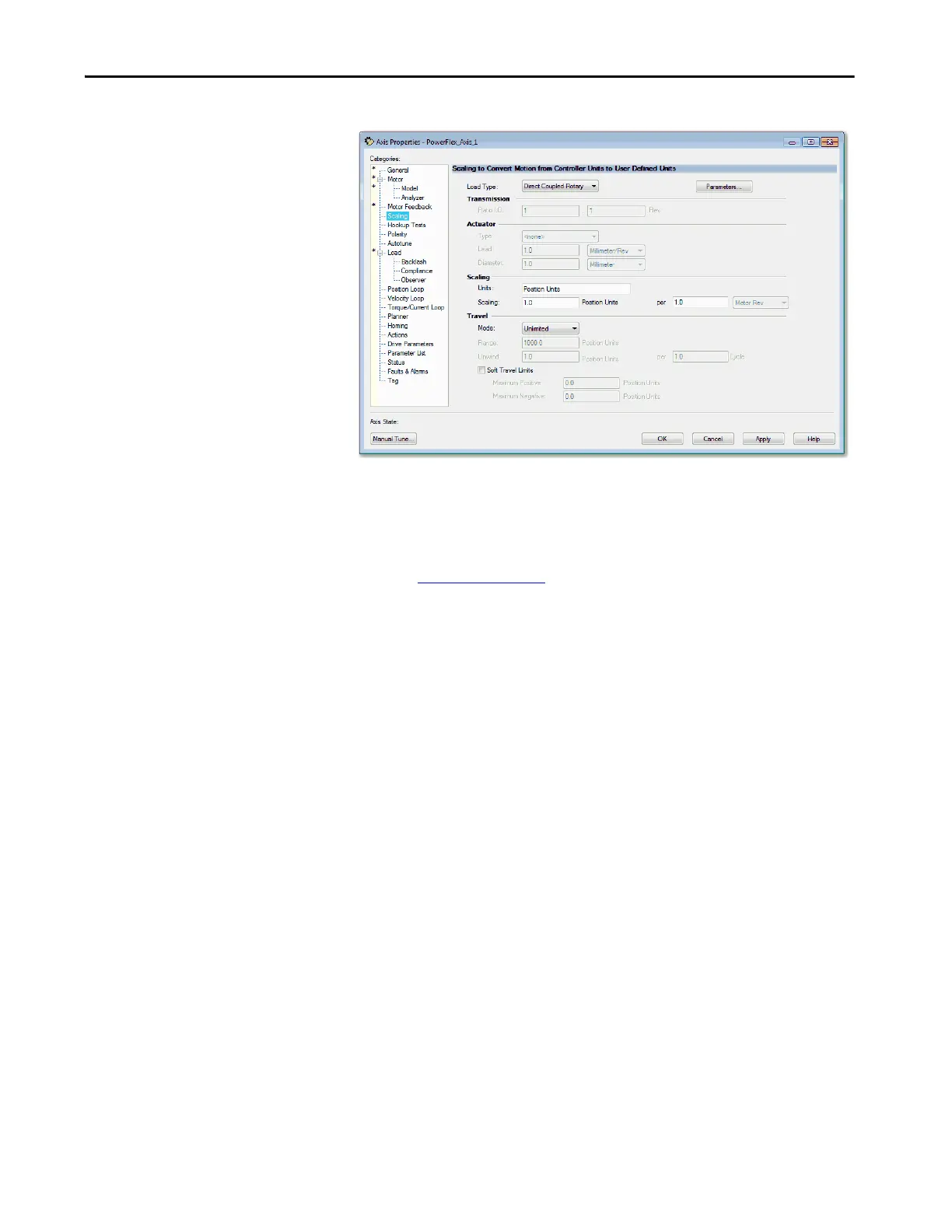

Figure 65 - Example 2: Position Loop with Dual Feedback, Scaling Dialog Box
7. From the Load Type pull-down menu, choose your load type.
8. Enter the Scaling Units.
9. From the Travel Mode pull-down menu, choose a Travel Mode.
See Scaling on page 222
for more information about Scaling.
10. Click Apply and OK to exit Axis Properties.
You are now finished configuring a PowerFlex 755 drive axis as Position Loop
with Dual Feedback.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
