Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 203
Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9
4. From the Data Source pull-down menu, choose a data source.
In this case, Nameplate data sheet is the Data Source.
See the Specify the Motor Data Source on page 50
for more information
about Data Sources.

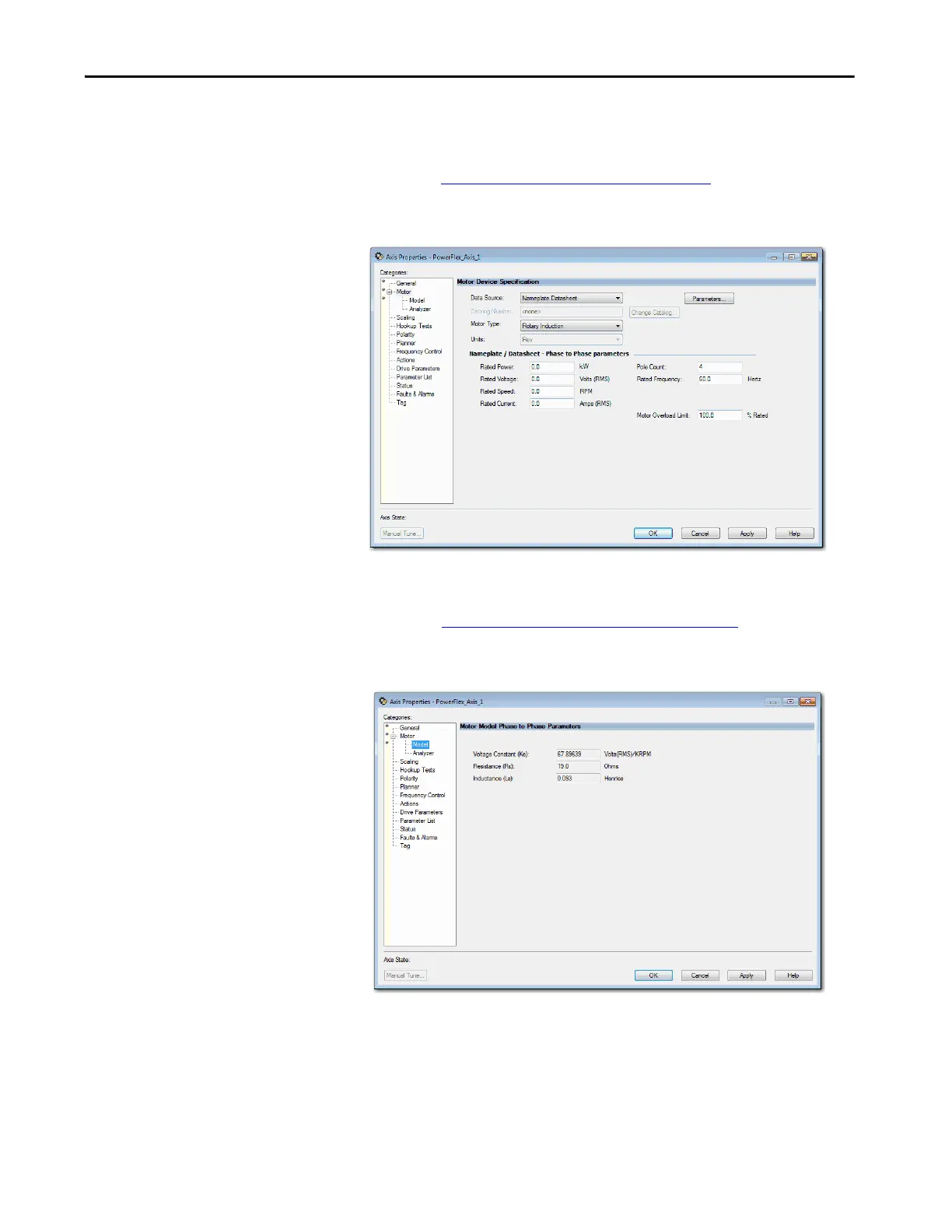

Figure 76 - Example 5: Frequency Control with No Feedback, Motor Dialog Box
In this case, the data source is Catalog Number and the Motion
Database provides values for these fields.
See the Display Motor Model Information on page 54
for more
information about data sources.
Figure 77 - Example 5: Frequency Control with No Feedback, Motor Model Dialog Box

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
