Out of Box Configuration for PowerFlex Drives Appendix B
Look For
Cause
When you use an S-curve profile, jerk determines the acceleration and
deceleration time of the axis:
• An S-curve profile has to get acceleration to 0 before the axis can slow
down.
• If you reduce the acceleration, it takes longer to get acceleration to 0.
• In the meantime, the axis continues past its initial target speed.
The following trends show how the axis stops with a trapezoidal profile and an
S-curve profile.

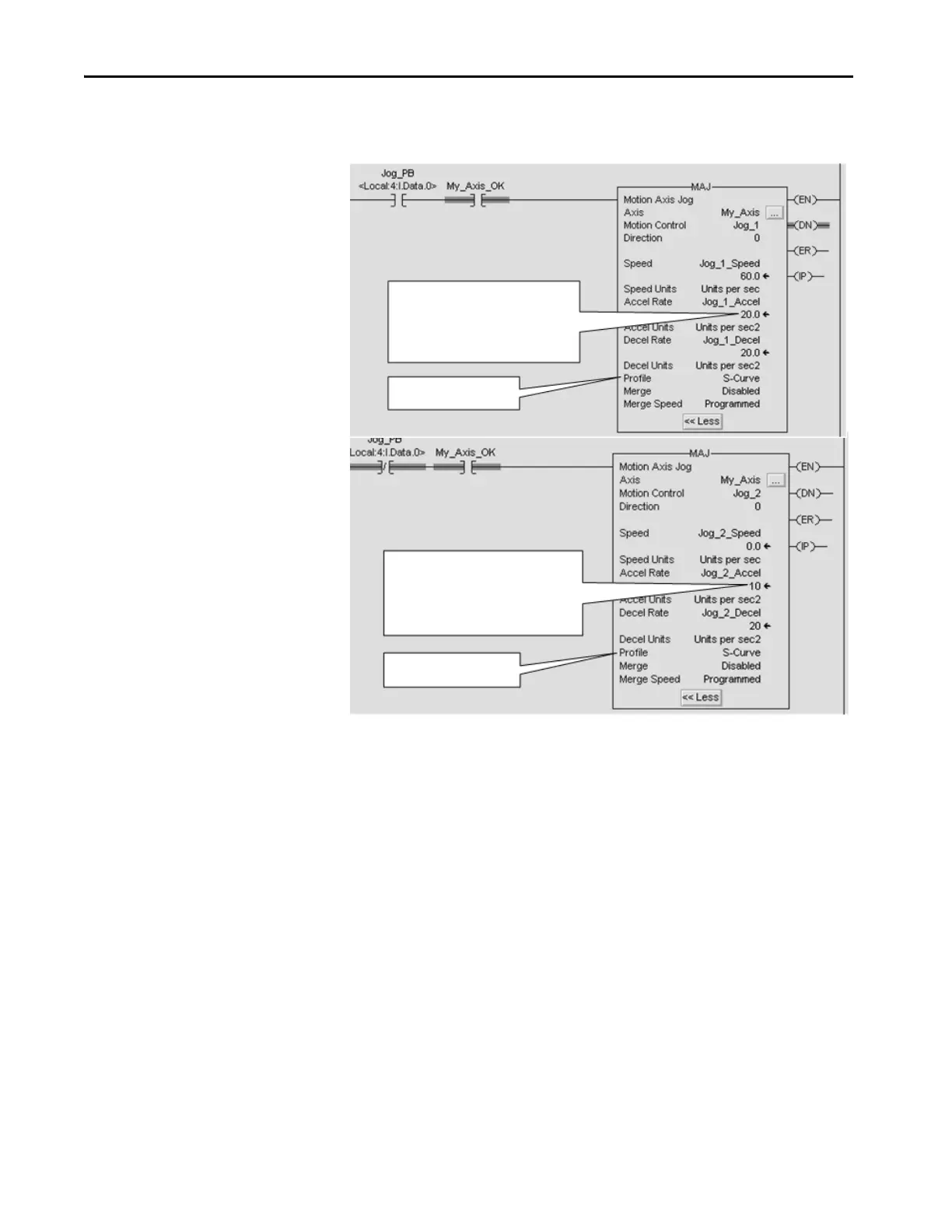

The MAJ instruction that starts the axis
has a higher acceleration rate than the
instruction that stops the axis.
The MAJ instruction that stops the axis has
a lower acceleration rate than the
instruction that starts the axis.
S-curve profile
S-curve profile

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
