Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4

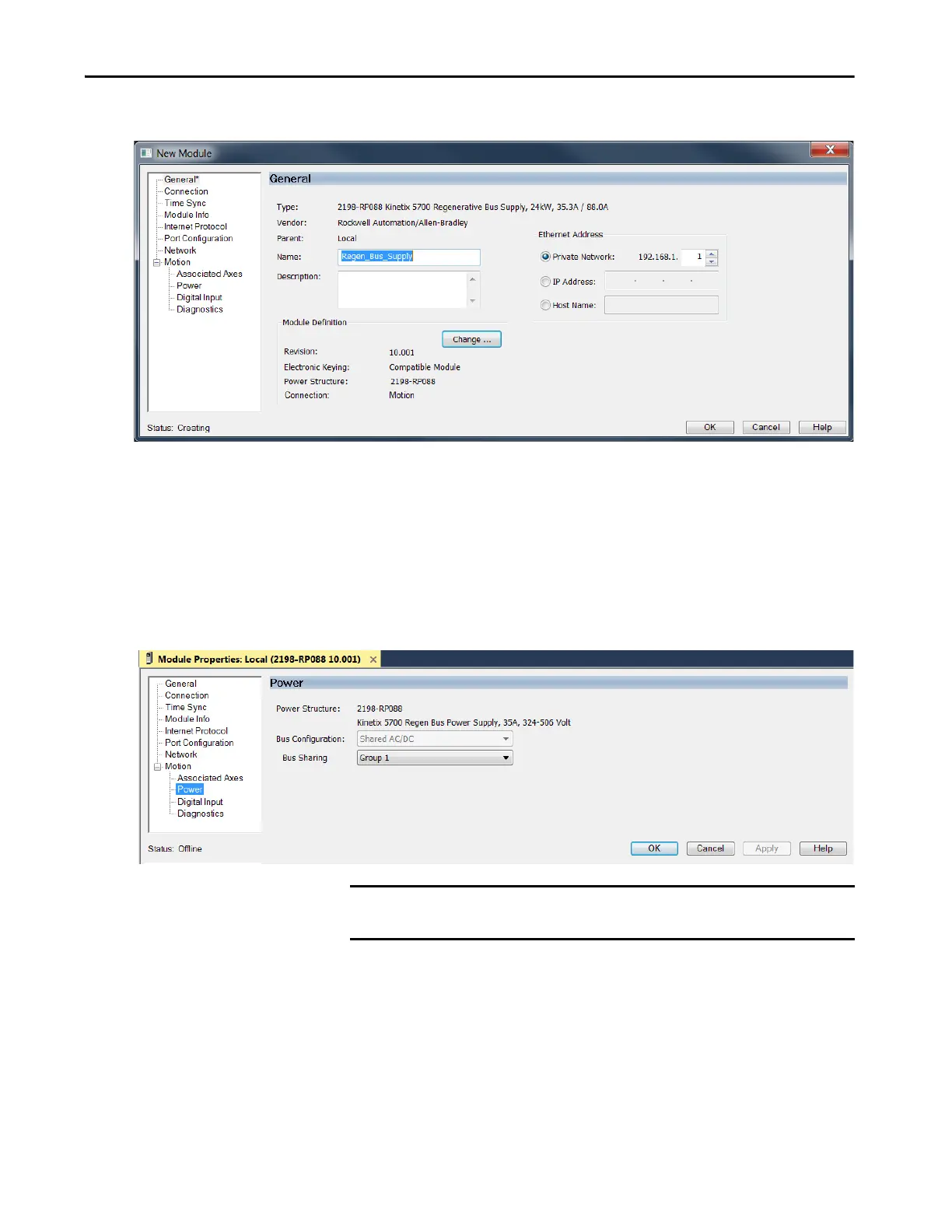

The New Module dialog box appears.
4. Configure the new module.
a. Type the module Name.
b. Select a EtherNet/IP address option.
In this example, the Private Network address is selected.
c. Enter the address of your 2198-RPxxx regenerative bus supply.
In this example, the last octet of the address is 1.
5. Click the Power category.
IMPORTANT The Logix Designer application enforces shared-bus configuration rules
for Kinetix 5700 drives.
