Spare parts
Sectional drawing for series AE1F, AE1L, AE1E,
AE2E, AE1N, AE2N, AE4N, AED1E, AED2N; ID
construction type
760.0002 GB - 150 500
BA-2011.11
Series AE1F, AE1L, AE.E, AE.N, AE.H, AE.V, AED1E,
AED2N ID, ZD construction types
43
11.2 Sectional drawing for series AE1F, AE1L, AE1E, AE2E, AE1N, AE2N,
AE4N, AED1E, AED2N; ID construction type

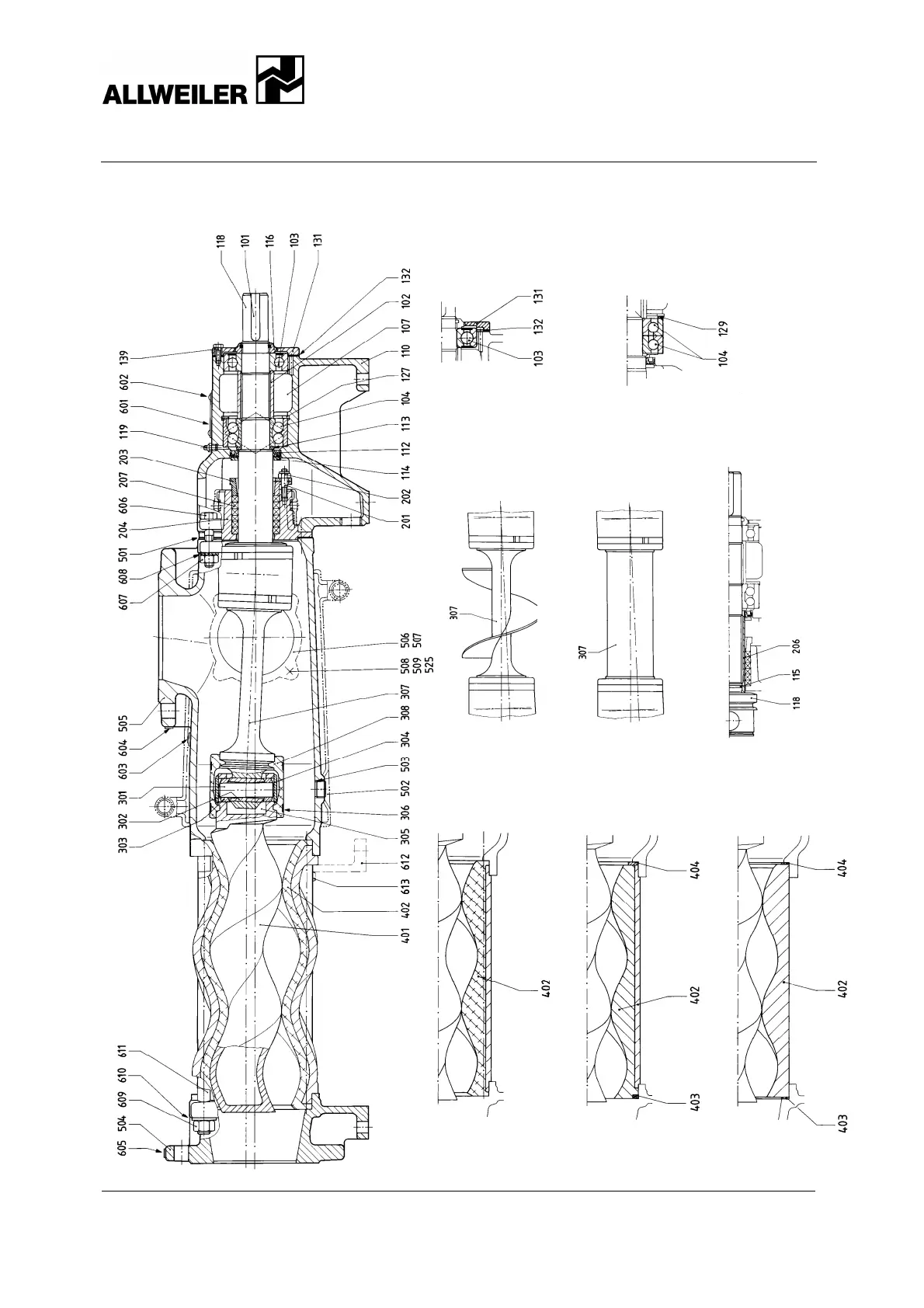

Fig. 24 Sectional drawing for series AE1F, AE1L, AE1E, AE2E, AE1N,
AE2N, AE4N, AED1E, AED2N; ID construction type
Stator with even elastomer wall thickness
Stator of plastic material
Metal stator
Worm on joint shaft
Winding protection on joint shaft
Shaft with shaft sleeve
Groove ball bearing in case
of vertical installation
Design with two single-row
angular contact ball bearings
