Spare parts
Sectional drawings of shaft seals
44
Series AE1F, AE1L, AE.E, AE.N, AE.H, AE.V, AED1E,
AED2N ID, ZD construction types
BA-2011.11 760.0002 GB - 150 500

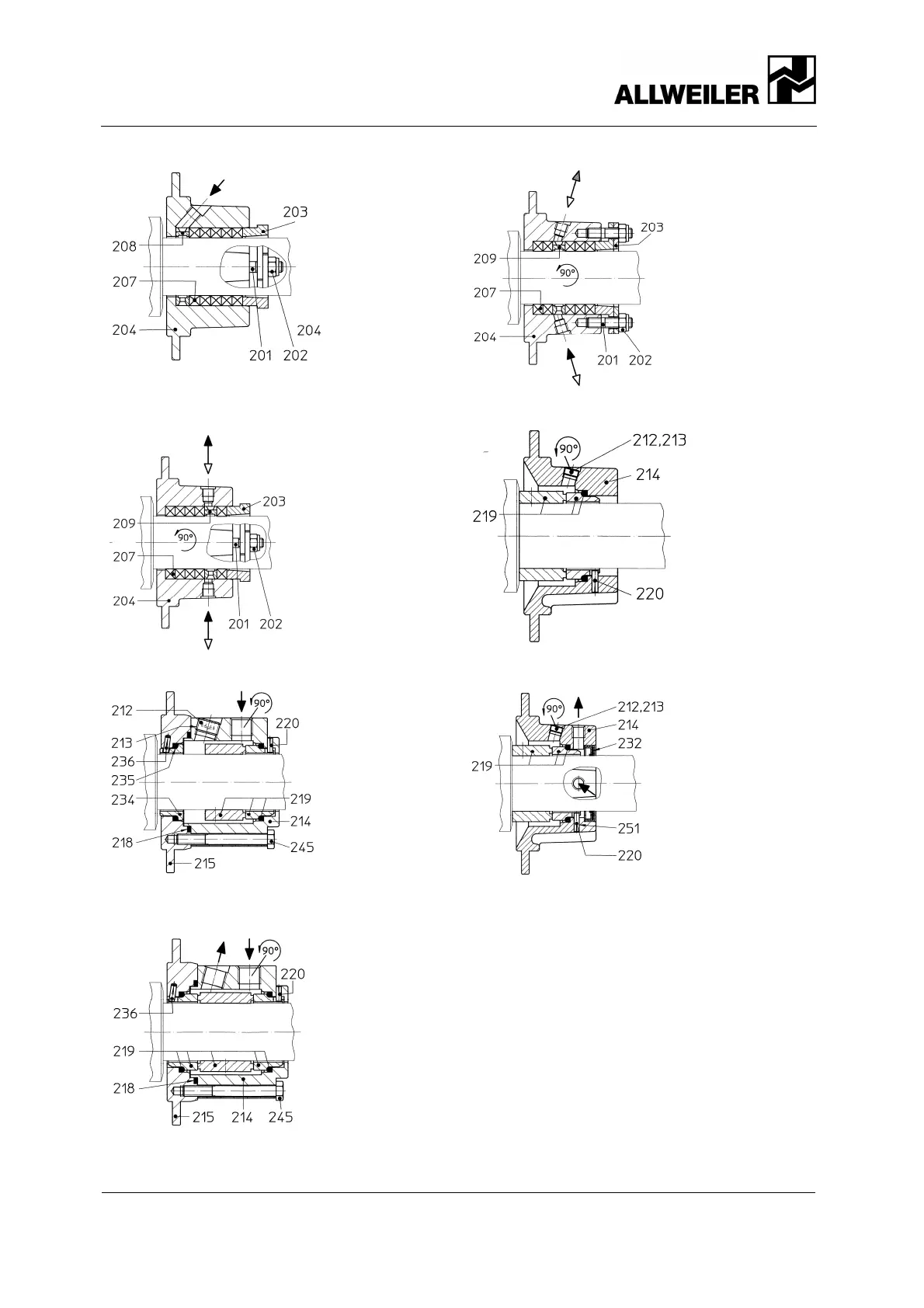

11.3 Sectional drawings of shaft seals
Fig. 25 P02 Stuffing box with flushing ring Fig. 26 P03 stuffing box with internal seal chamber ring
Fig.
27
P04 stuffing box with external seal chamber ring
Fig.
28
G0K and G0N mechanical seal, single
-
acting
Fig. 29 G0S and G0T, mechanical seal, single-acting with
throttle ring
Fig. 30 G0Q mechanical seal, single-acting with quench
Fig. 31 G0D double-acting mechanical seal
