Allweiler AE1F Series - Sectional Drawing for Series AE2 H, AE4 H; ZD Construction Type; Fig. 36 Sectional Drawings of Series AE2 H, AE4 H; ZD Construction Type

Spare parts
Sectional drawing for series AE2H, AE4H; ZD
construction type
760.0002 GB - 150 500 BA-2011.11
Series AE1F, AE1L, AE.E, AE.N, AE.H, AE.V, AED1E,
AED2N ID, ZD construction types
49

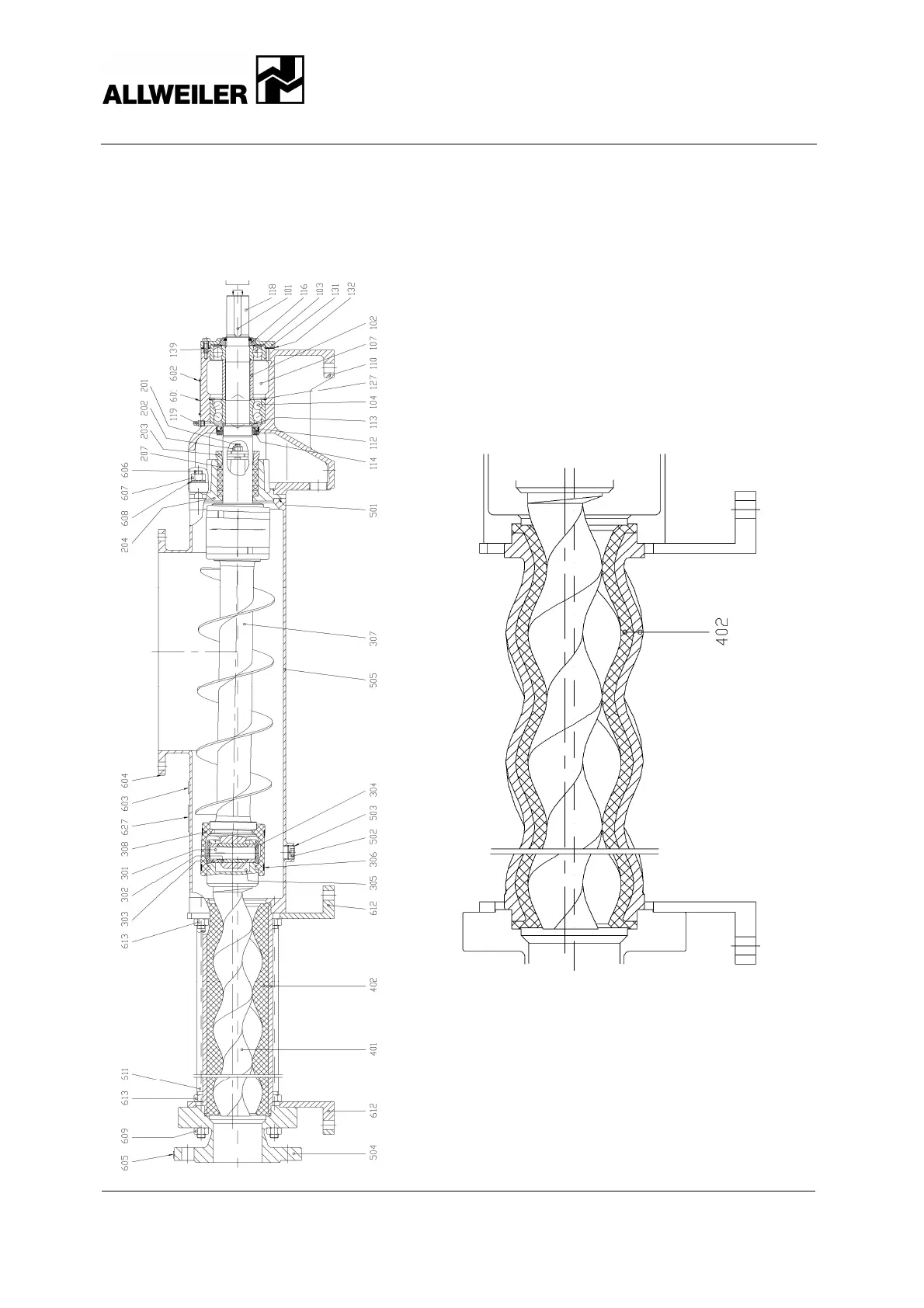

11.8 Sectional drawing for series AE2H, AE4H; ZD construction type
Fig. 36 Sectional drawings of series AE2H, AE4H; ZD
construction type
Stator with even elastomer wall thickness
Part 101 secured with two puncher blows
