Spare parts
Sectional drawings for series AE2H, AE4H; ID
construction type
46
Series AE1F, AE1L, AE.E, AE.N, AE.H, AE.V, AED1E,
AED2N ID, ZD construction types
BA-2011.11
760.0002 GB - 150 500
11.5 Sectional drawings for series AE2H, AE4H; ID construction type

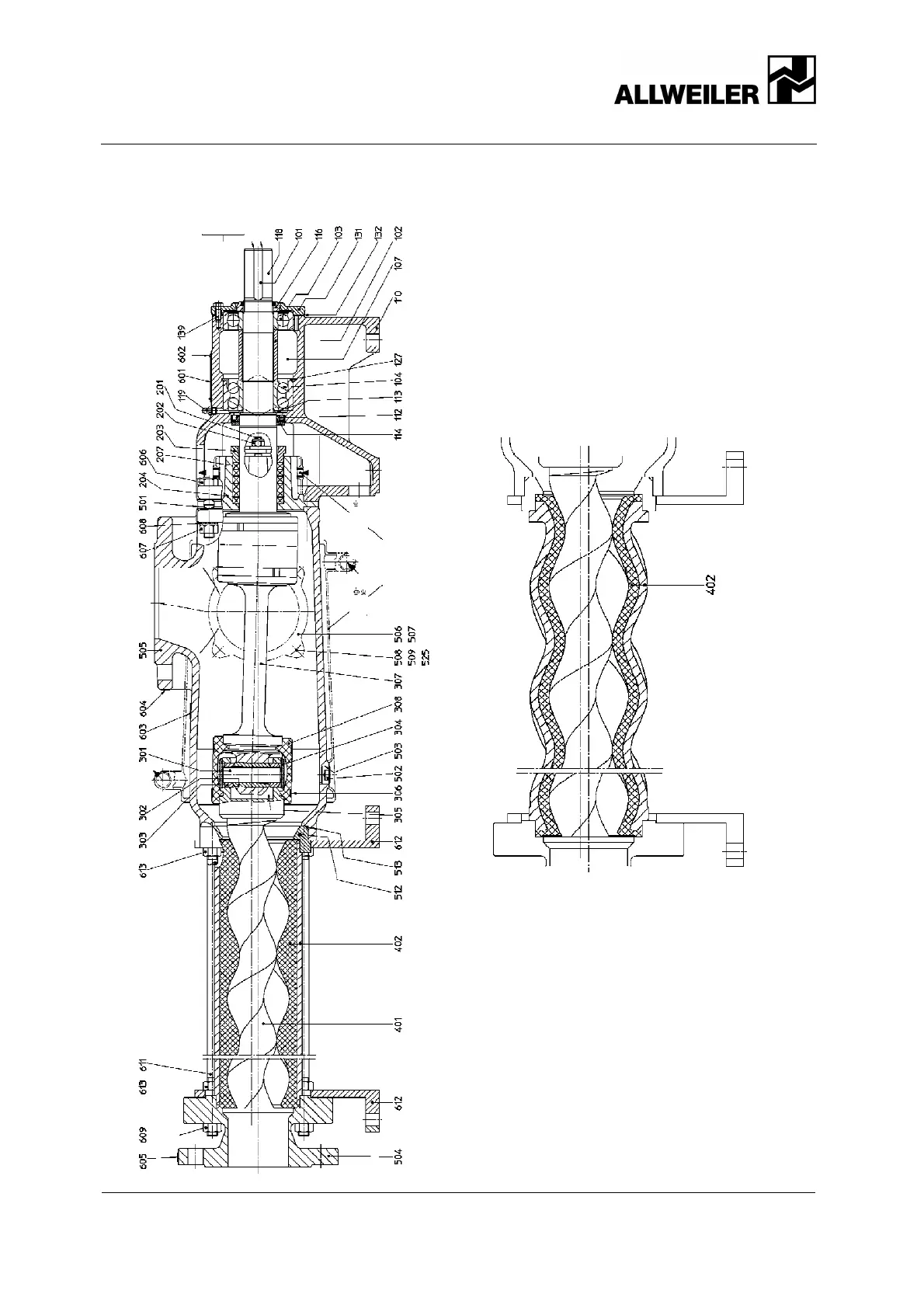

Fig. 33 Sectional drawings for series AE2H, AE4H; ID
construction type
Part 101
secured with
two puncher
blows
Stator with even elastomer wall thickness
double-jacket
for suction
casing
for stuffing
box casing
