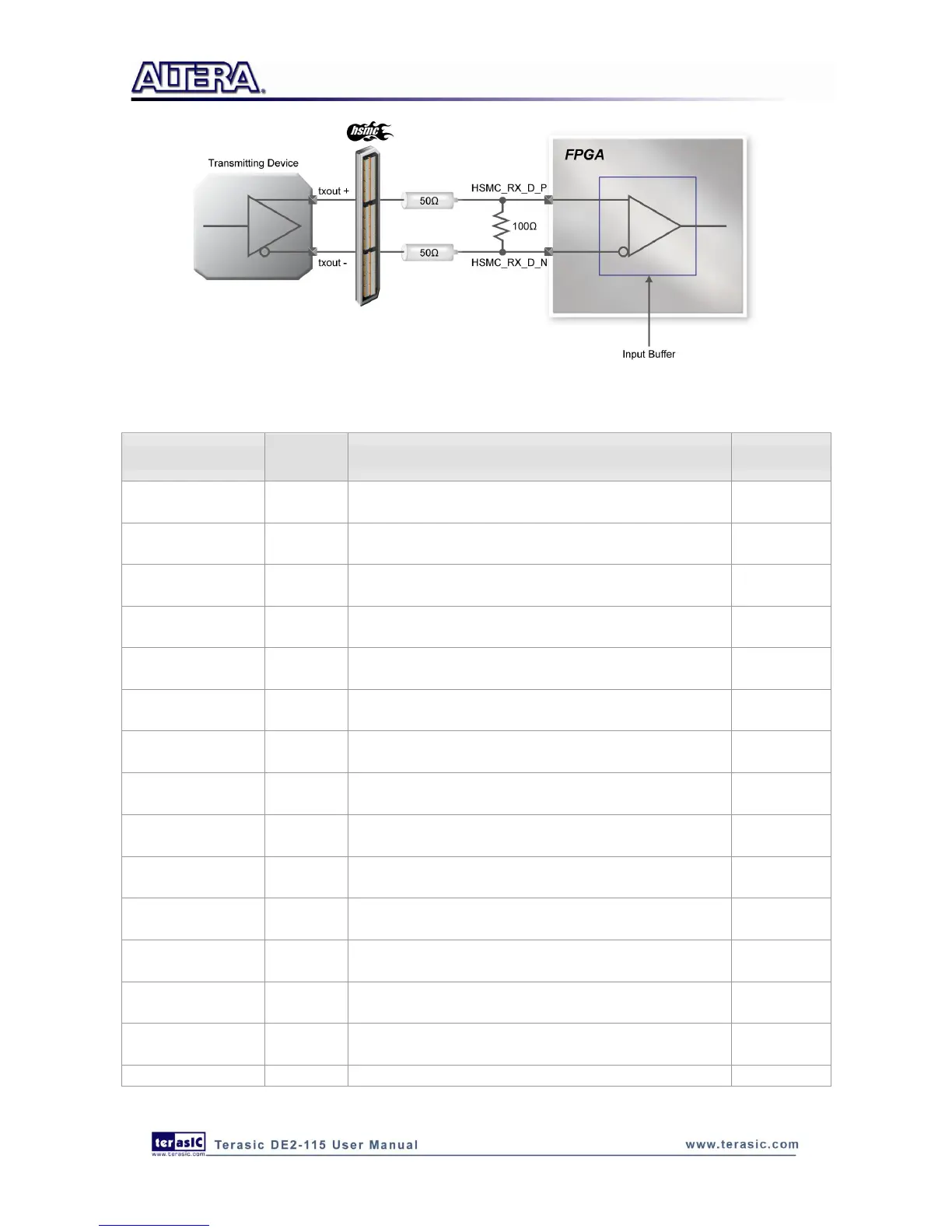

Figure 4-14 LVDS interface on HSMC connector and Cyclone IV E FPGA
Table 4-9 Pin Assignments for HSMC connector
Signal Name
FPGA Pin
No.
Description
I/O Standard
HSMC_CLKIN0
PIN_AH15
Dedicated clock input
Depending
on JP6
HSMC_CLKIN_N1
PIN_J28
LVDS RX or CMOS I/O or differential clock input
Depending
on JP7
HSMC_CLKIN_N2
PIN_Y28
LVDS RX or CMOS I/O or differential clock input
Depending
on JP7
HSMC_CLKIN_P1
PIN_J27
LVDS RX or CMOS I/O or differential clock input
Depending
on JP7
HSMC_CLKIN_P2
PIN_Y27
LVDS RX or CMOS I/O or differential clock input
Depending
on JP7
HSMC_CLKOUT0
PIN_AD28
Dedicated clock output
Depending
on JP7
HSMC_CLKOUT_N1
PIN_G24
LVDS TX or CMOS I/O or differential clock input/output
Depending
on JP7
HSMC_CLKOUT_N2
PIN_V24
LVDS TX or CMOS I/O or differential clock input/output
Depending
on JP7
HSMC_CLKOUT_P1
PIN_G23
LVDS TX or CMOS I/O or differential clock input/output
Depending
on JP7
HSMC_CLKOUT_P2
PIN_V23
LVDS TX or CMOS I/O or differential clock input/output
Depending
on JP7
HSMC_D[0]
PIN_AE26
LVDS TX or CMOS I/O
Depending
on JP7
HSMC_D[1]
PIN_AE28
LVDS RX or CMOS I/O
Depending
on JP7
HSMC_D[2]
PIN_AE27
LVDS TX or CMOS I/O
Depending
on JP7
HSMC_D[3]
PIN_AF27
LVDS RX or CMOS I/O
Depending
on JP7
HSMC_RX_D_N[0]
PIN_F25
LVDS RX bit 0n or CMOS I/O
Depending
