5000KIT | 5000KIT AUTOMATION SET74
MOUNTING
1

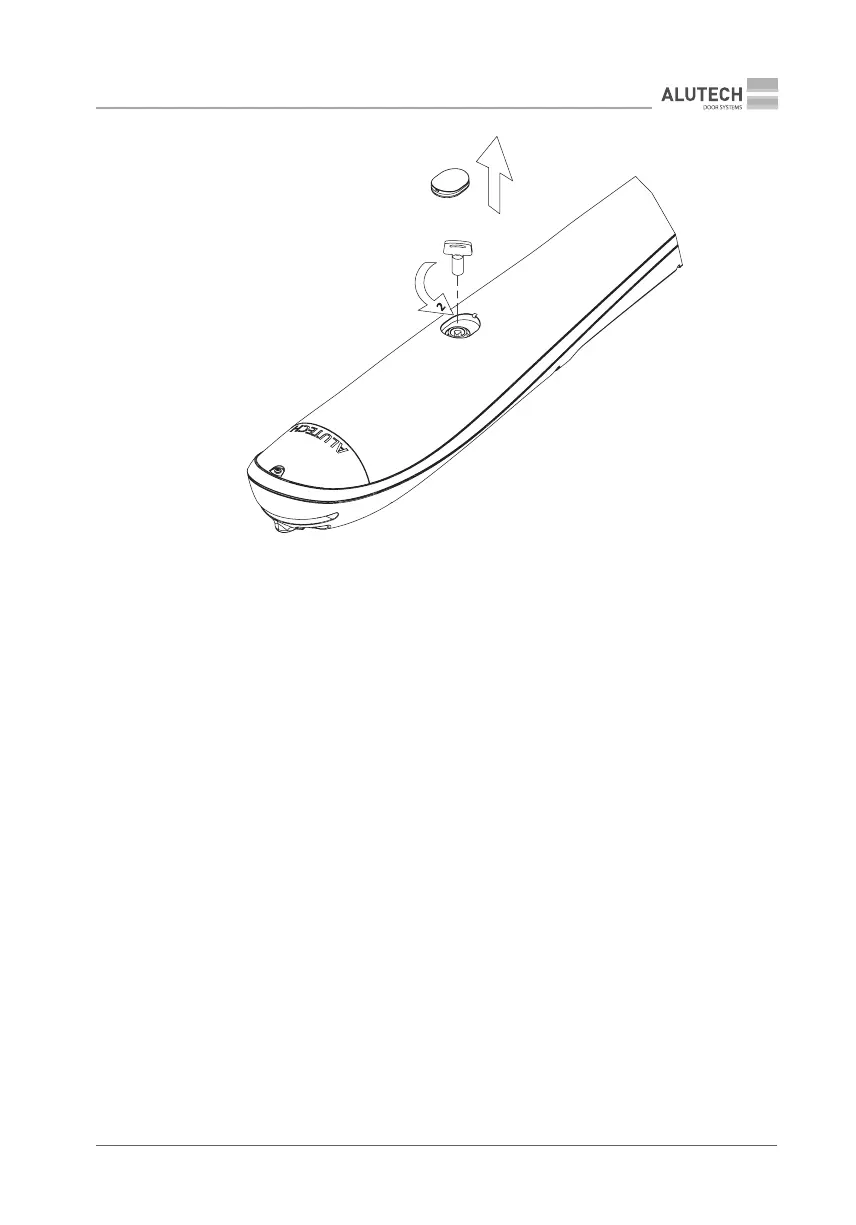

Figure 15. Manual release
Y
Prior to releasing / locking a drive, disconnect the power supply to make sure the drive will not
start accidentally after receiving an unintended command.
Please, be careful when using the manual release, because uncontrolled leaf motion is possible,
which could cause loss of balance or mechanical impact resulting in damage or injury.
Use the manual release only during installation, in case of a drive failure, or loss of electric power.
Move the gate leaves slowly, without shocks or impacts. Never apply force when pushing a leaf.
4.4 SETTING UP FINAL POSITIONS
Y
Final positions should be set up by qualied personnel only in compliance with safety rules.
When a gate is started, make sure you stay out of the motion area and monitor the leaves moving.
Avoid grabbing a moving gate or any moving parts.
Make sure to disconnect the power supply to the wiring, when establishing electrical connections.
To avoid the gate leaves moving beyond the operation limits, provide mechanical stops for gate
opening and closing operations.
• Release the drive as shown in fig. 15.
• Move a gate leaf manually to the gate opening position, then move the corresponding stop
until the stop switch is activated (disengaged / with a distinctive click) (fig. 16).
• Move the leaf manually to the gate closing position, then move the corresponding stop until
the stop switch is activated (disengaged / with a distinctive click).
• Lock the drive.
• Complete several full cycles. Make sure the final position switches are activated as appropriate.
In case the final positions of the leaves are not as required, adjust the positions of the stop.
