5000KIT | 5000KIT AUTOMATION SET 81
PROGRAMMING REMOTE CONTROL UNITS
Lc
NC
NO
X10
LNPE
T Lock
Lc
NC
NO
X10
LNPE
Lock
T

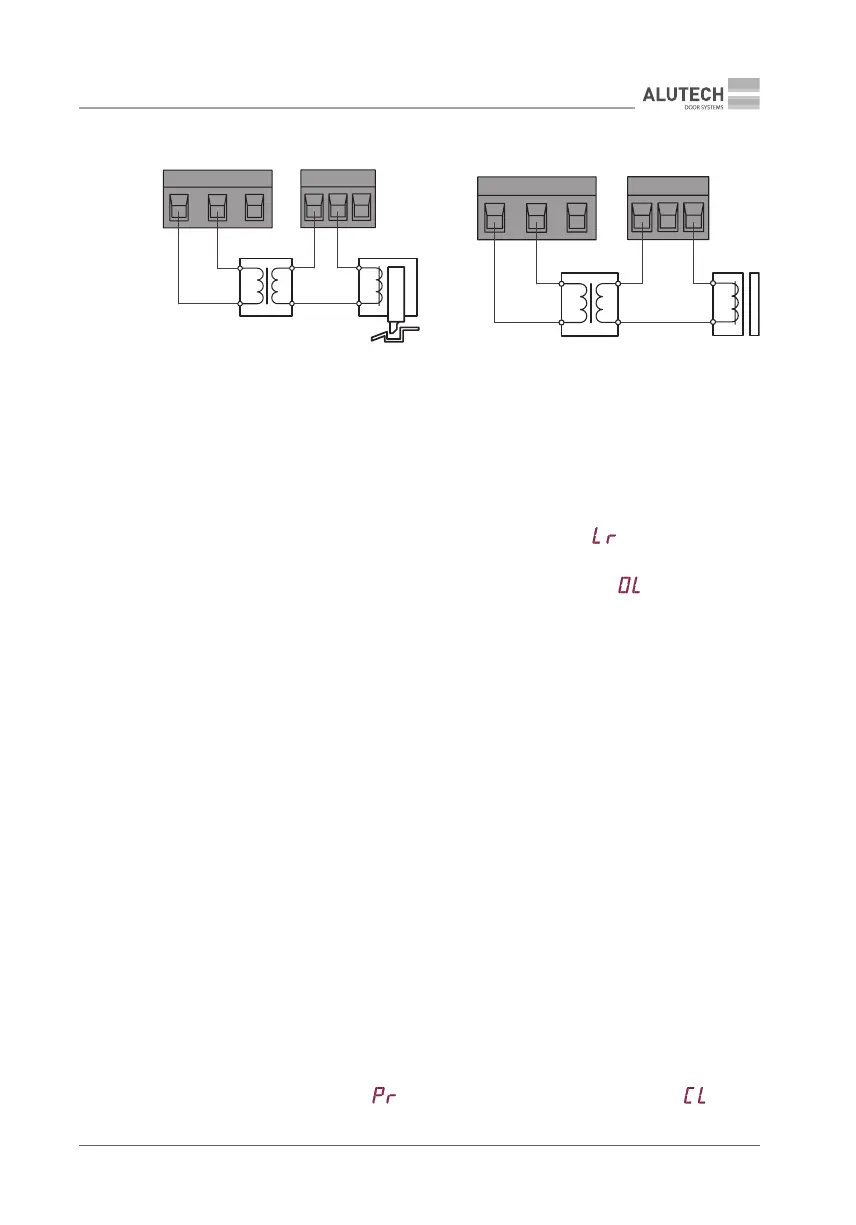

Figure 21. Connection diagram
for an electric lock
Figure 22. Connection diagram
for an electromagnetic lock
T — power supply to the electric lock (e.g., a transformer). Selected to match the electric lock model.
Lock — electric lock
6. PROGRAMMING REMOTE CONTROL UNITS
Remote controls are recorded and deleted (AT-4, AT-4N, AT-4A) via the ‘ ’ setting, using the dis-
play unit and the buttons on the control unit module (section 7 ‘Setting up operating parameters).
The remote-control operation logic is in accordance with the selected ‘ ’ operation mode
(section 7 ‘Setting up operating parameters’).
Y
Before the initial programming of remote controls, delete previously saved remote control
codes from the module memory.
Before recording a remote control, remove the 9 connector (g. 18) together with the antenna.
Once the remote control has been recorded, reinsert the 9 connector .
If a remote control is lost, delete the number (code) of the lost remote control from the module
memory to prevent unauthorised access to the premises. If the number of a lost remote control
is unknown, make sure to delete all the numbers (codes) of remote controls and record them
once again.
After a module is connected to the mains supply, the rst command from the remote control
will open the gate.
7. SETTING UP OPERATING PARAMETERS
To set up the operating parameters for a drive, use the display unit and the buttons on the control
unit (g. 18). To enter the mode for setting up the drive operating parameters, press the ‘F’ button
on the control module and hold it for, at least, 3 seconds. Press the ‘F’ button once to select the
required setting (tab. 11). To select a value for the setting, press and hold the ‘+’ button or the ‘−’
on the control unit module. To conrm the selected value, press the ‘F’ button. To exit the setup
mode, press the ‘F’ button and hold it for, at least, 3 seconds. All the selected settings will be
saved. When in the setup mode, all control commands to initiate the gate motion are ignored.
To reset to default settings (manufacturer’s settings) of the control unit module, enter the setup
mode (the display unit will indicate ‘ ’), press and hold for, at least, 3 seconds the ‘ ’ button
