 5000KIT | 5000KIT AUTOMATION SET82

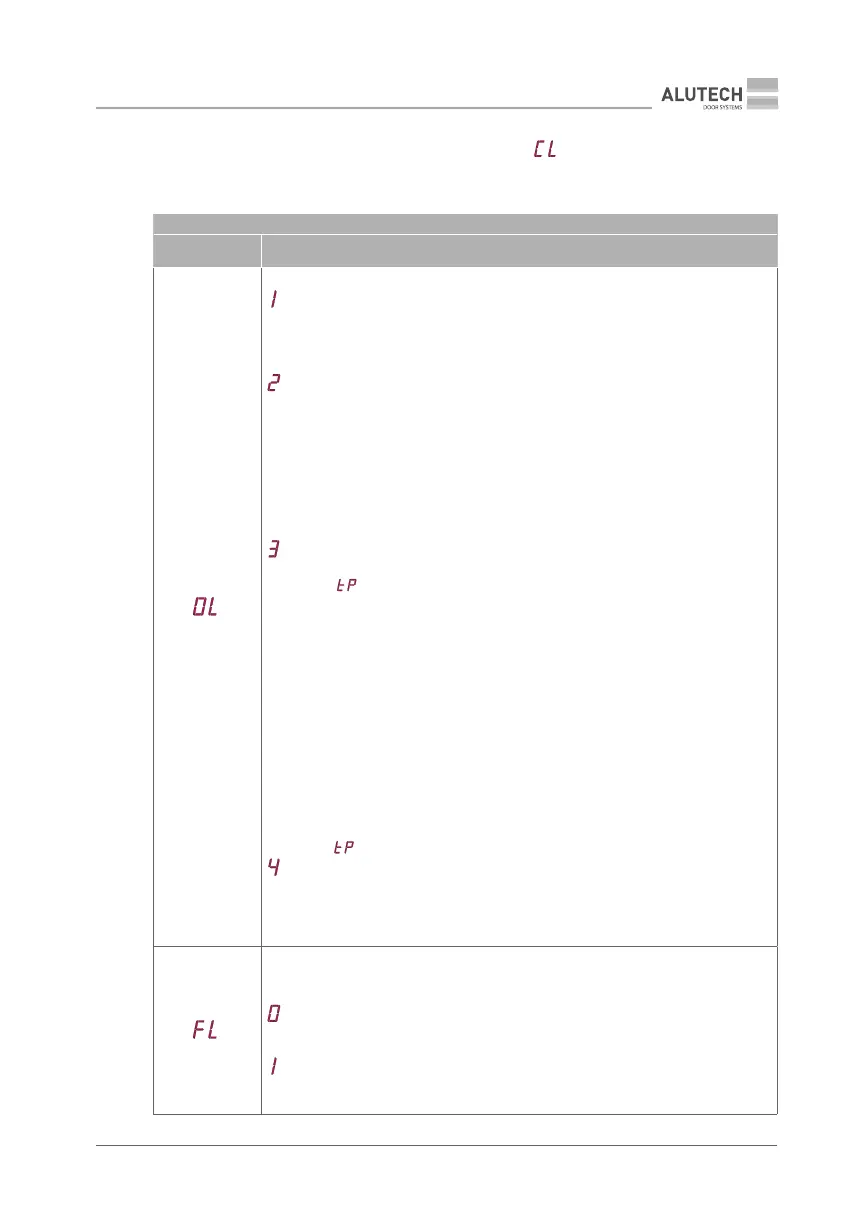

SETTING UP OPERATING PARAMETERS
on the control unit module. When the display indicates ‘ ’ for a short period, it means the
previously saved settings are deleted and reset to defaults.
SETTINGS
SETTING
INDICATION
SETTING DETAILS
Operating mode
— manual.
The gate can be closed and opened only by pressing and holding the control devices
connected to the ‘OP’, ‘ CL’ and ‘PED’ inputs (g. 18) in accordance with their intended use.
Commands from the remote control and the control device connected to the ‘SBS’ input are
ignored. Safety devices are active ‘S’, ‘ PH1’, ‘ PH2’ inputs).
— semiautomatic.
When the control device is pressed for a short time, the gate will move according to the
following sequence:
• ‘OP’ input—‘Open—Stop—Open—Stop…’;
• ‘CL’ input—‘Close—Stop—Close—Stop…’;
• ‘SBS’ input—‘Open—Stop—Close—Stop…’;
• ‘PED’ input—‘Open partially—Stop—Open partially—Stop…’;
• Remote control (AT-4, AT-4N, AT-4A)—‘Open—Stop—Close—Stop…’
Safety devices are active (‘S’, ‘ PH1’, ‘ PH2’ inputs).
Default setting.
— automatic.
The gate is rst fully opened and then closed automatically upon expiration of the preset
delay time ( ‘ ’), setting). If the gate is double-leaf, the second leaf of the gate will open
last. The control devices connected to the ‘OP’, ‘ CL’ and ‘PED’, inputs function the same way as
in the semiautomatic mode.
Activation of the control device connected to the ‘SBS’ input or a remote control causes
the gate to fully open (commands are ignored while the gate is opening); activation of
the control device during the delay countdown will cause the delay time to reset and the
countdown to start anew; when the gate is closing, the control command will cause the
motion to stop. Activation of the remote control that initiated the opening will cause the
delay time to reset and the gate to close. Activation of another recorded remote control
during the delay countdown will cause the delay time to reset and the delay countdown to
start anew.
The safety devices are active (‘S’, ‘ PH1’, ‘ PH2’ inputs). Activation of the photocells (beam
breaking) connected to the ‘PH1’ input will cause the delay time before automatic closing
to reset and the delay countdown to start anew after the release of the photocells (beam
recovery). Or else, activation of the photocells connected to the ‘PH1’ input during the delay
countdown will cause the gate to close automatically 5 seconds after the release of the
photocells (‘ ’ setting).
— automatic + always closed.
The dierence from the automatic mode is that, if the power supply is disconnected while
the gate is in an intermediate position, the gate will automatically close as soon as the power
supply is restored. The automatic closing is delayed for 3 seconds. The lamp connected to the
‘FL’ output will be on for the 3 seconds of delay.
Motion start delay
When the setting is enabled, the gate will start moving 3 seconds after a control
command is given:
— Disabled.
The lamp connected to the ‘FL’ output will be on while the gate is moving.
Default setting.
— Enabled.
The lamp connected to the ‘FL’ output will be on for the 3-second delay before the start of the
gate motion and will remain illuminated as the gate will be subsequently moving.
Table 11
