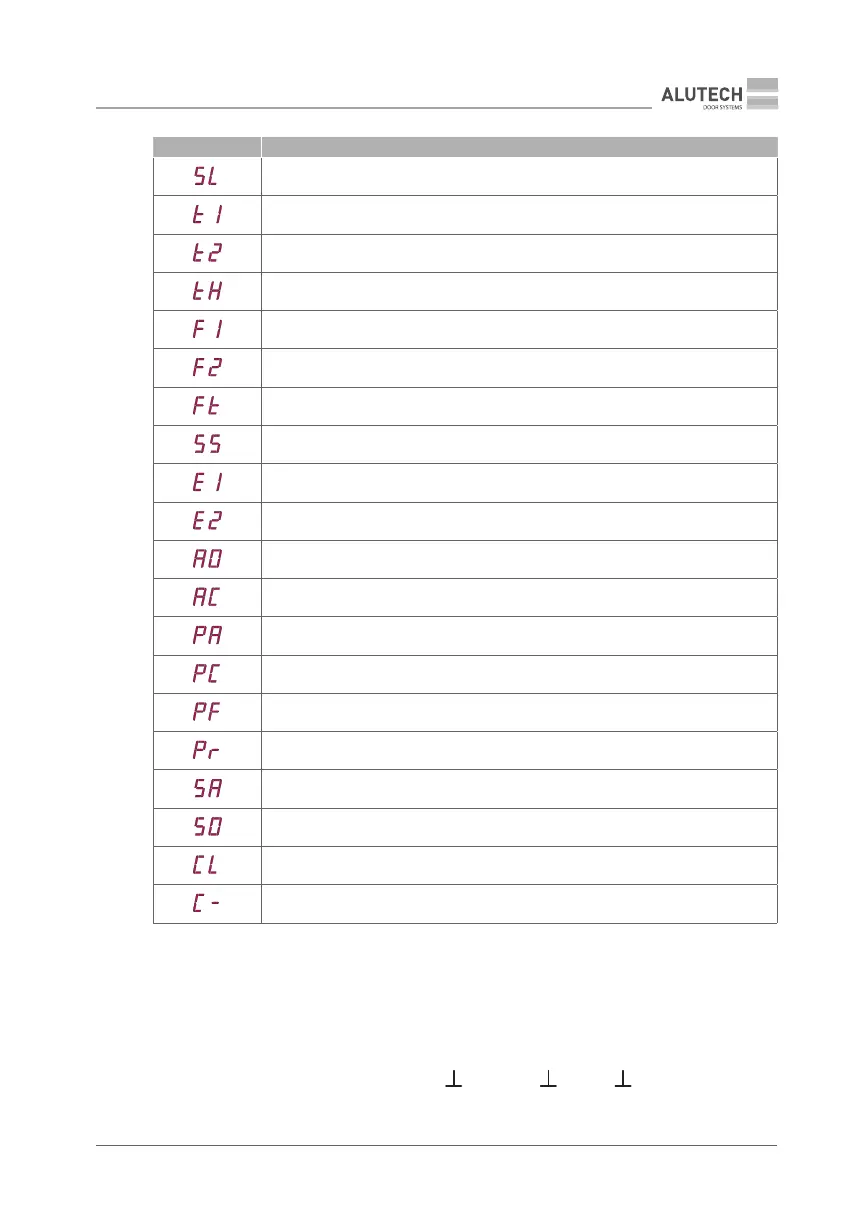

CONTROL UNIT
INDICATION MEANING
Drive 1 leaf fully opened or closed
Drive M1 leaf stopped upon expiration of the preset operation time
Drive M2 leaf stopped upon expiration of the preset operation time
Drive M1 leaf stopped upon expiration of the preset partial opening time
Activation of the safety device connected to the PH1 input
Activation of the safety device connected to the PH2 input
PHOTOTEST testing revealed faulty or activated safety devices (or, at least, one) connected
to the PH.T input
Activation of the STOP safety device connected to the S input
Activation upon the preset drive 1 force (rst leaf)
Activation upon the preset drive 2 force (second leaf)
Automatic opening
Automatic closing
Countdown of delay before automatic closing
Gate automatically closing upon expiration of the delay
Reset delay before automatic closing after activation of the safety device connected
to the PH1 input
Switching to the operating parameter setup mode
Saving the values when exiting the operating parameter setup mode
Safety device circuits are normal
Reset to default settings (manufacturer’s settings)
Wrong command
5.2 ELECTRICAL CONNECTIONS
Y
Prior to commencing the wiring operation, make sure that the wire is not ‘live’.
When using and installing additional electrical devices (accessories), follow the manuals supplied.
Incorrect connection can result in a failure of the drive.
If no devices are connected to the ‘PH1’ and ‘ ’, ‘ PH2’ and ‘ ’, ‘ S’ and ‘ ’ terminals, crossovers
should be installed. If a safety device is connected to the terminals mentioned, remove the
crossover.
