5000KIT | 5000KIT AUTOMATION SET 75
MOUNTING

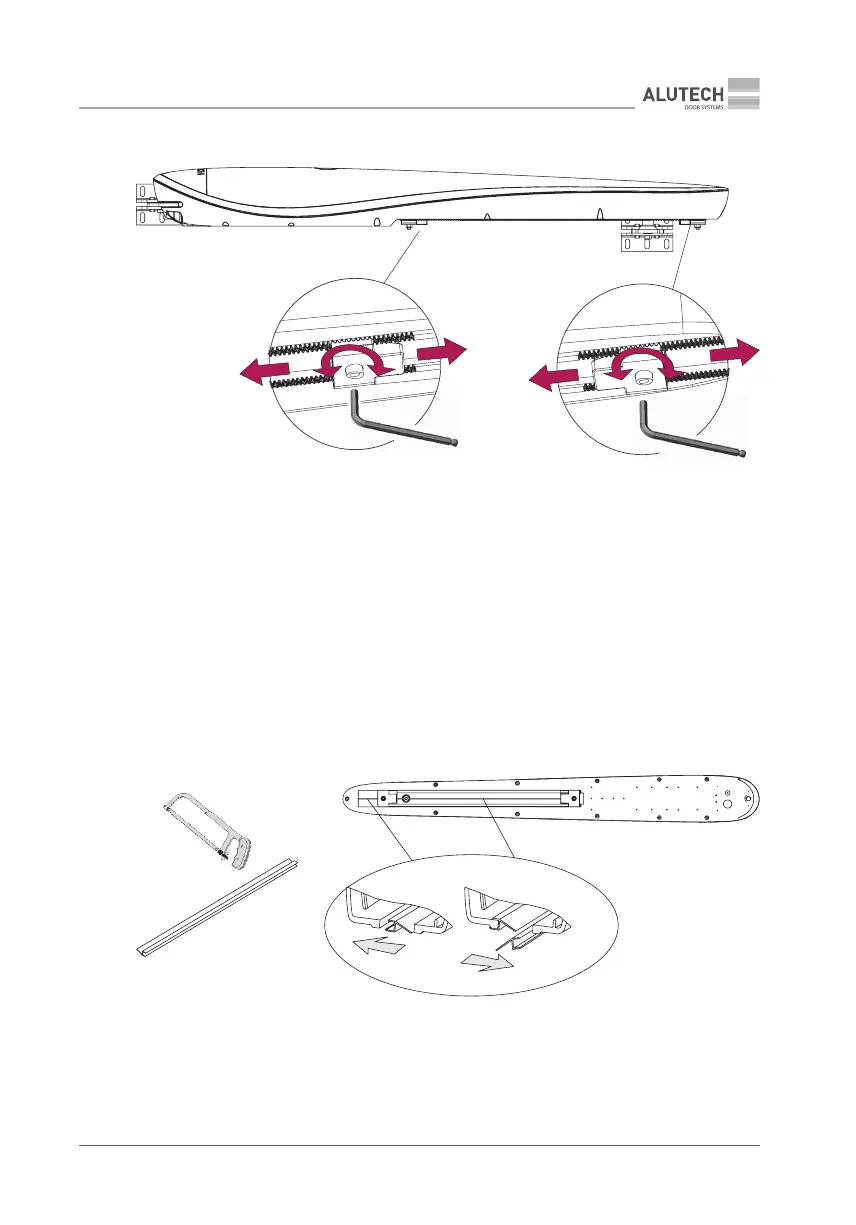

Figure 16. Adjusting the mechanical stops of a drive
4.5 INSTALLING A GUARD BAR
• Disconnect the power supply to the drive.
• Reduce the section to the required length
(distance between the rear and the front mechanical stops).
• Fit the guard bar to the edge of the drive groove; use the remaining bar for mounting to the
exposed groove portions (fig. 17).
• Make sure the installed bar does not impair the normal operation of the drive and activation
of the switches for the mounted mechanical stops.
Figure 17. Mounting a guard bar
