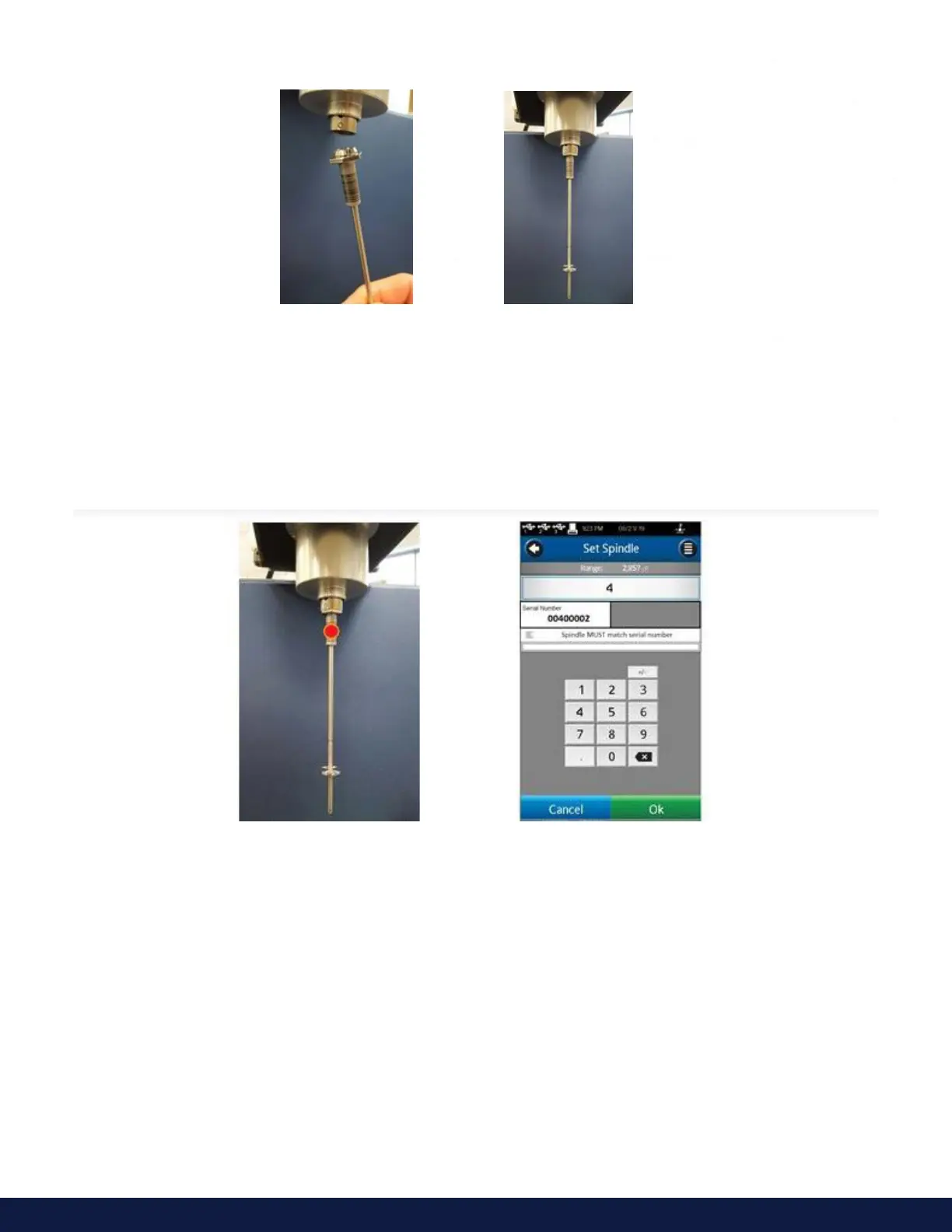

Attach the Spindle to the DVNX magnetic coupling (see Figures 3-16 and 17).
Figure 3-16 Figure 3-17
Hold the barcode scanner approximately 3-5 inches from the spindle at a slight upward angle of 10-20°. Aim the
barcode scanners red dot at the spindle barcode (see Figure 3- 18).
Squeeze the barcode scanner trigger until it beeps and the Spindle field on the DVNext screen populates (see Figure
3-19). Verify the correct spindle and serial number were scanned.
Figure 3-18 Figure 3-19
3.7.2 Scanning cone/plate spindles
Plug the barcode scanner into one of the USB ports on the back panel of the DVNext. Wait for the barcode scanner
to beep. On the Configure Viscosity Test screen, touch the blue arrow in the Spindle field to open Set Spindle. Place
the Cone/Plate Spindle on a clean, flat surface (see Figures 3-20 and 21).
