M19-2101 REVISION 2.0 DVNEXT RHEOMETER - OPERATIONAL MANUAL
3.7.4 Scanning sample barcodes (standard & compliant instruments)
Plug the barcode scanner into one of the USB Ports on the back panel of the DVNext. Wait for the barcode scanner
to beep. On the Configure Viscosity Test screen, touch the Blue Arrow (see Figure 3-26) in the Sample ID field to
open the Enter Sample ID screen (see Figure 3-27).

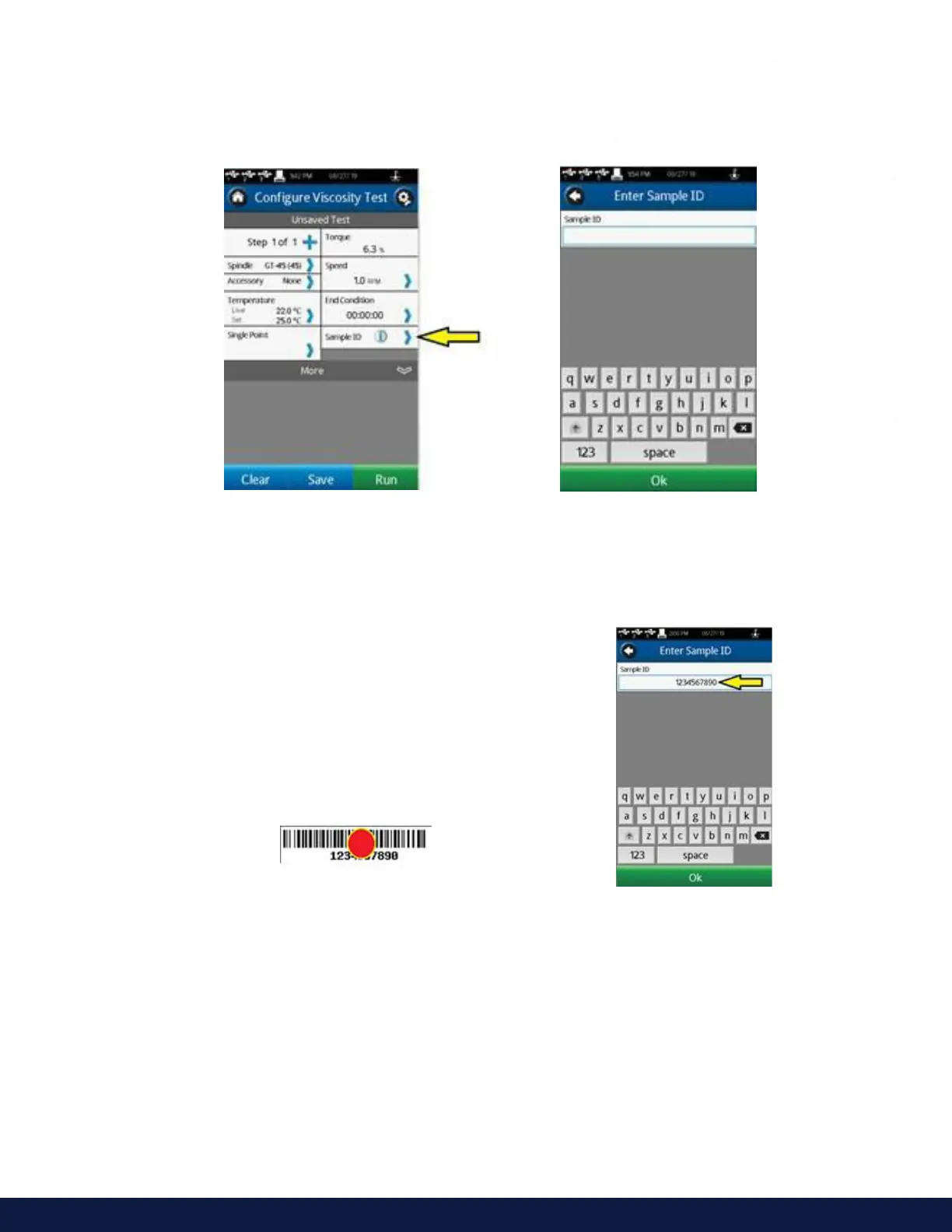

Figure 3-26 Figure 3-27
Hold the barcode scanner approximately 4-6 inches from your sample barcode. Aim the barcode scanner red dot at
the sample barcode (see Figure 3-28). Squeeze the barcode scanner trigger until it beeps and the Sample ID field on
the DVNX screen populates (see Figure 3-29). Verify the correct sample number was scanned.
Figure 3-28 Figure 3-29
3.7.5 Scanning accessory barcodes (compliant instruments only)
Plug the barcode scanner into one of the USB Ports on the back panel of the DVNext. Wait for the barcode scanner
to beep. On the Configure Viscosity Test screen touch the blue arrow in the accessory field to open the Set
Accessory screen (see Figure 3-30).
Hold the barcode scanner approximately 3-6 inches from the accessory barcode angled left or right at 0-20°. Aim
the barcode scanner red dot at the accessory barcode. Squeeze the barcode scanner trigger until it beeps and the
Accessory field on the DVNX screen populates (see Figure 3-31). Verify the correct sample number was scanned.
Examples of some accessories is shown in Figure 3-32 and Figure 3-33.
