M19-2101 REVISION 2.0 DVNEXT RHEOMETER - OPERATIONAL MANUAL
Figure 3-39

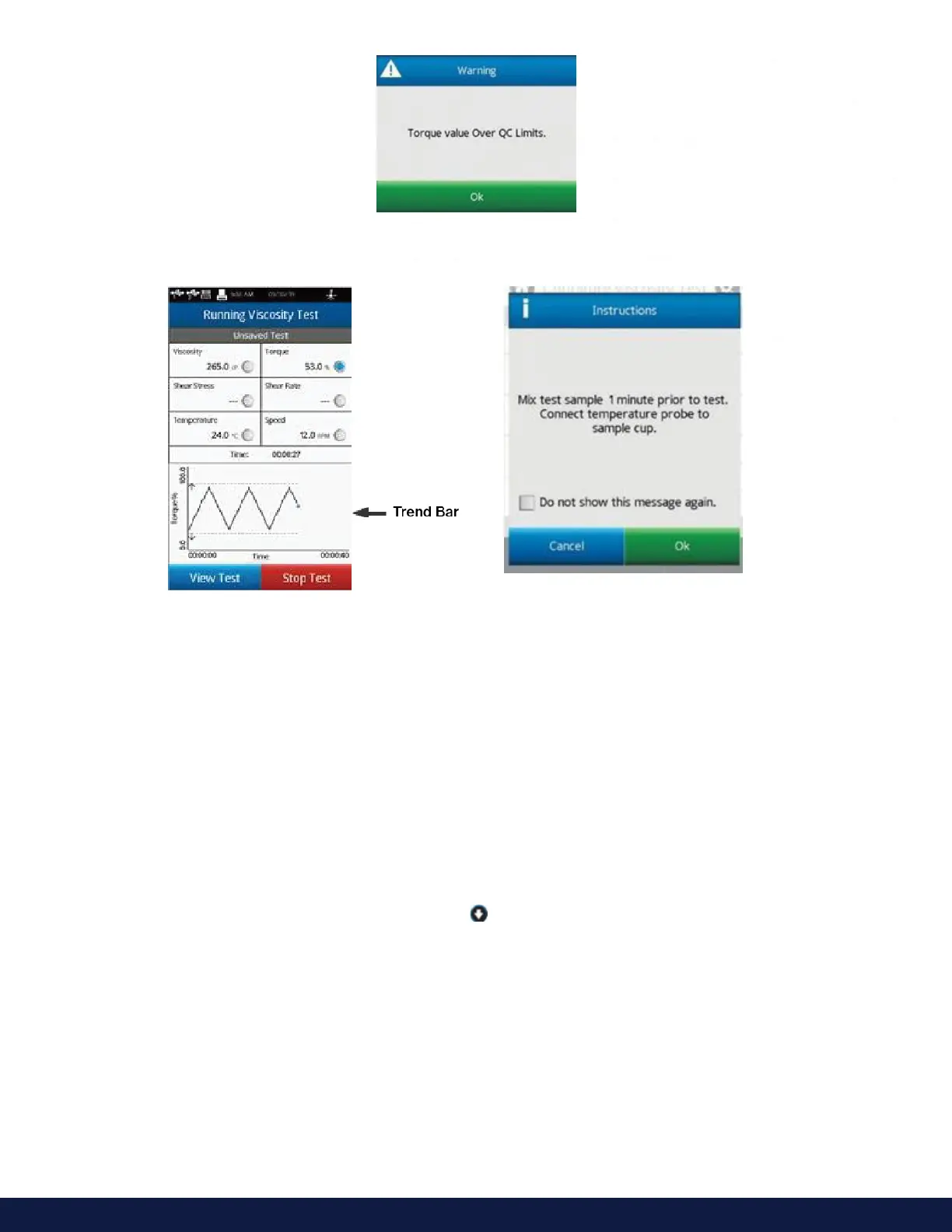

Figure 3-40 Figure 3-41
Instructions
Record specific instructions to the operator. This information will be presented immediately when the program is Run
(see Figure 3-41). The operator is required to acknowledge the message before the program will continue.
TIP: If the operator selects “Do not show this message again” within the Instructions message box, then
Instructions will no longer be displayed for any test. This condition can be reset to allow Instructions to be
displayed in the Display section of User Setting.
TIP: Instructions can be viewed during the test by selecting instructions (more/less bar) in the View Test screen.
Reports
Define how data will be presented at the conclusion of the test and specify the path for saving data files. Upon the
conclusion of a test, the user can be presented with either: a Graph, Table, Math Model, or an Average of collected
data points. Once in the Results section, the down arrow can be used to change the view.
Post Test Averaging can be specified as either Test Averaging or Step Averaging. Test Averaging allows you to select
which step from the program (created with PG Flash) is to be averaged and displayed. Step Averaging is used when
there is a single test step. See Section 3.11 for more detail relating to Data Averaging.
The data path for saving data can be preselected as part of the test report.
TIP: Selecting a data path can help to organize data storage in the internal memory of DVNext. By preselecting the
data path, operators are directed to put data from specific tests into specific areas.
TIP: If you select a data path that includes a USB Flash Drive location and the USB Flash Drive has been removed,
an error message will be displayed.
