Ametek Thermox TM2000 User Manual

3-16 | Thermox TM 2000 Oxygen Analyzer
General Purpose - Panel

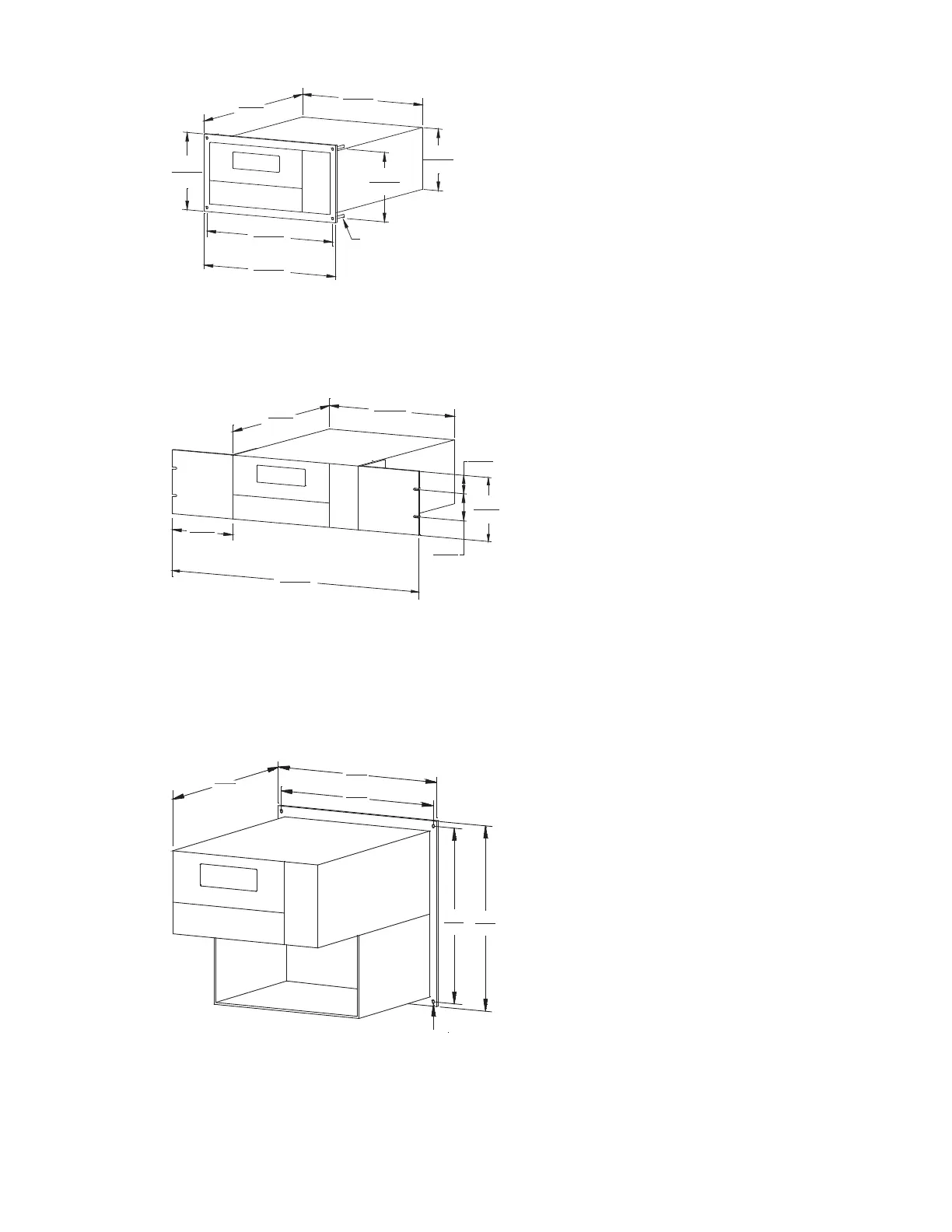

Figure 3-13 shows the panel-mounting
dimensions for the Series 2000 general
purpose enclosure. This version can be
mounted in panels up to 1” thick.
General Purpose - 19” Rack
Figure 3-14 shows the mounting dimen-
sions for the Series 2000 general purpose
19” rack mount enclosure. Use #10
screws to mount the control unit to a
rack whose holes are spaced per E.I.A.
standards RS-310-C (universal spacing).
General Purpose - Wall
Figure 3-15 shows the mounting dimen-
sions for the Series 2000 general purpose
wall enclosure. Use ¼”-diameter fasten-
ers to mount the control unit to the wall.
Figure 3-15.
Series 2000, general purpose wall mount.
Figure 3-14.
Series 2000, general purpose rack mount.
Figure 3-13.
Series 2000, general purpose panel mount.
10-32
3.8 cm (1.5 in.)
4 places
5.00
12.70
5.22
13.26
9.10
23.11
12.6
32.0
10.00
25.40
6.57
16.69
10.45
26.54
1.48
3.76
5.22
13.26
2.25
5.72
12.6
32.0
9.10
23.11
19.00
48.26
4.95
12.57
4 Holes for
1/4" fasteners
10.38
26.37
11.38
28.90
11.5
29.21
10.26
26.06
7.65
19.43
