Appendix D – Cable Details and Pinout Info

128

Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver

HD-15 Connector Cable Pinout

HD-15 connectors are found on the Multi-Format TX, Wallplate TX, and Decor Wallplate TX. These

connectors are used to accept a variety of analog video signals from a source device. The following table

provides cable pinout details for HD-15 connections for VGA, component, S-Video, and composite.

HD-15 Connector Cable Pinout

Input Pin # VGA Component S-Video Composite

1 Red Pr n/c n/c

2 Green Y Y CVBS

3Blue Pb C n/c

4 n/c n/c n/c n/c

5GND n/c n/c n/c

6 GND - Red GND - Pr n/c n/c

7 GND - Green GND - Y GND - Luminance GND - CVBS

8 GND - Blue GND - Pb GND - Chrominance n/c

9 +5 VDC n/c n/c n/c

10 GND n/c n/c n/c

11 n/c n/c n/c n/c

12 DDC_SDA n/c n/c n/c

13 H Sync n/c n/c n/c

14 V Sync n/c n/c n/c

15 DDC_SCL n/c n/c n/c

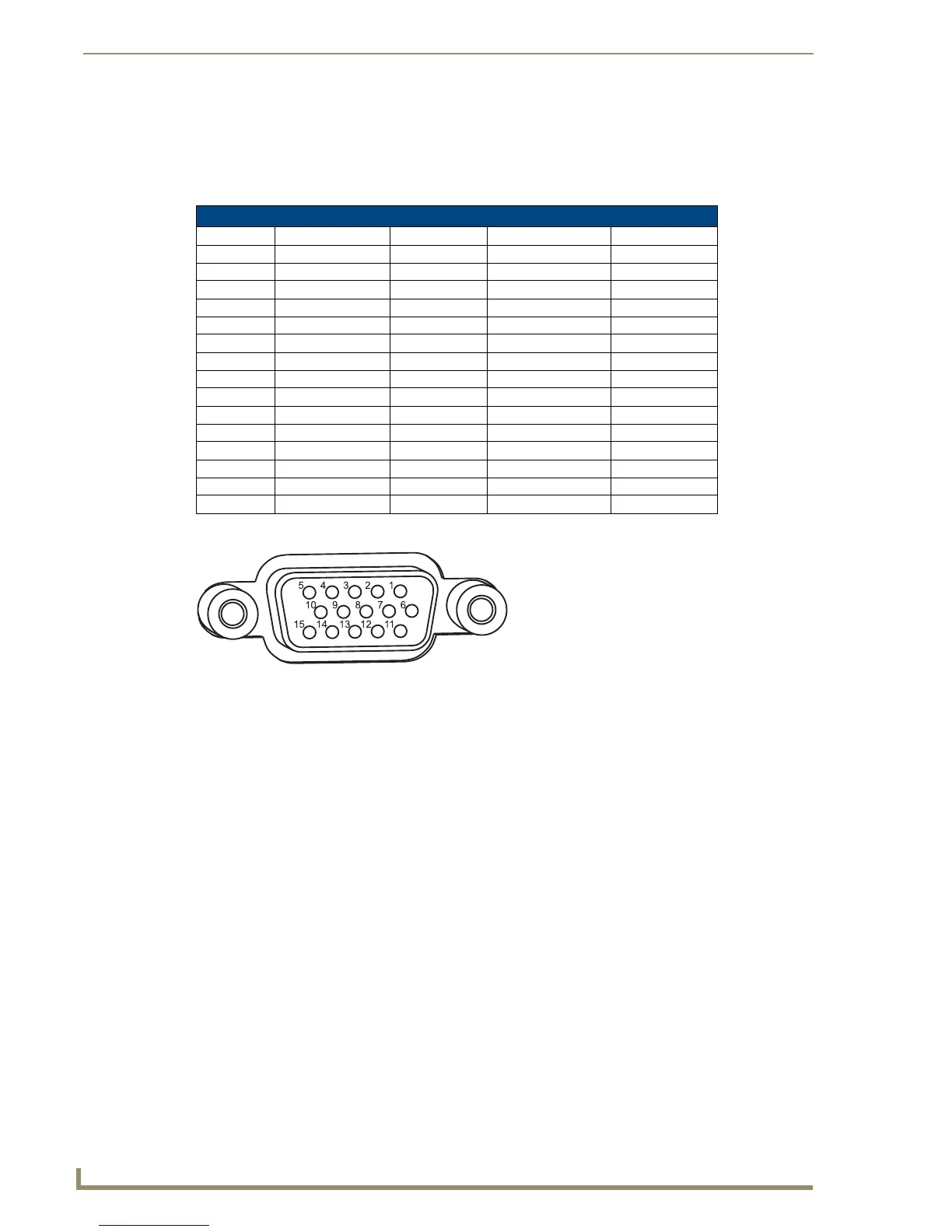

FIG. 42 HD-15 Connector pins
