Product Overview and Specifications

Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver

Common Applications

DXLink Transmitters and Receivers are designed to send audio, video, and control to a remote display

across the room, on the other side of the house, or to a classroom down the hall. The installation’s

requirements dictate the system setup which generally takes one of the following three forms.

Endpoint Mode (Switcher) – One or more Transmitters and/or Receivers are connected to a

switcher* containing an integrated Master (see page 34).

Endpoint Mode (Standalone) – A standalone DXLink TX/RX pair** are connected directly

to each other but, in addition, either the TX or RX is connected to a NetLinx Central

Controller via a LAN or directly to the Controller (see page 37).

Extender Mode (Standalone) – A standalone DXLink TX/RX pair** are connected directly

to each other as a simple extender solution (see page 38).

* The switcher can be either an Enova DGX Switcher or an applicable Enova DVX Solution (see page 8).

** A wallplate in a standalone configuration requires power via a DXLink power injector.

Transmitters

Note: If a DVI-D signal is used (via a DVI-to-HDMI cable adapter), the advanced audio support from

HDMI will not be available.

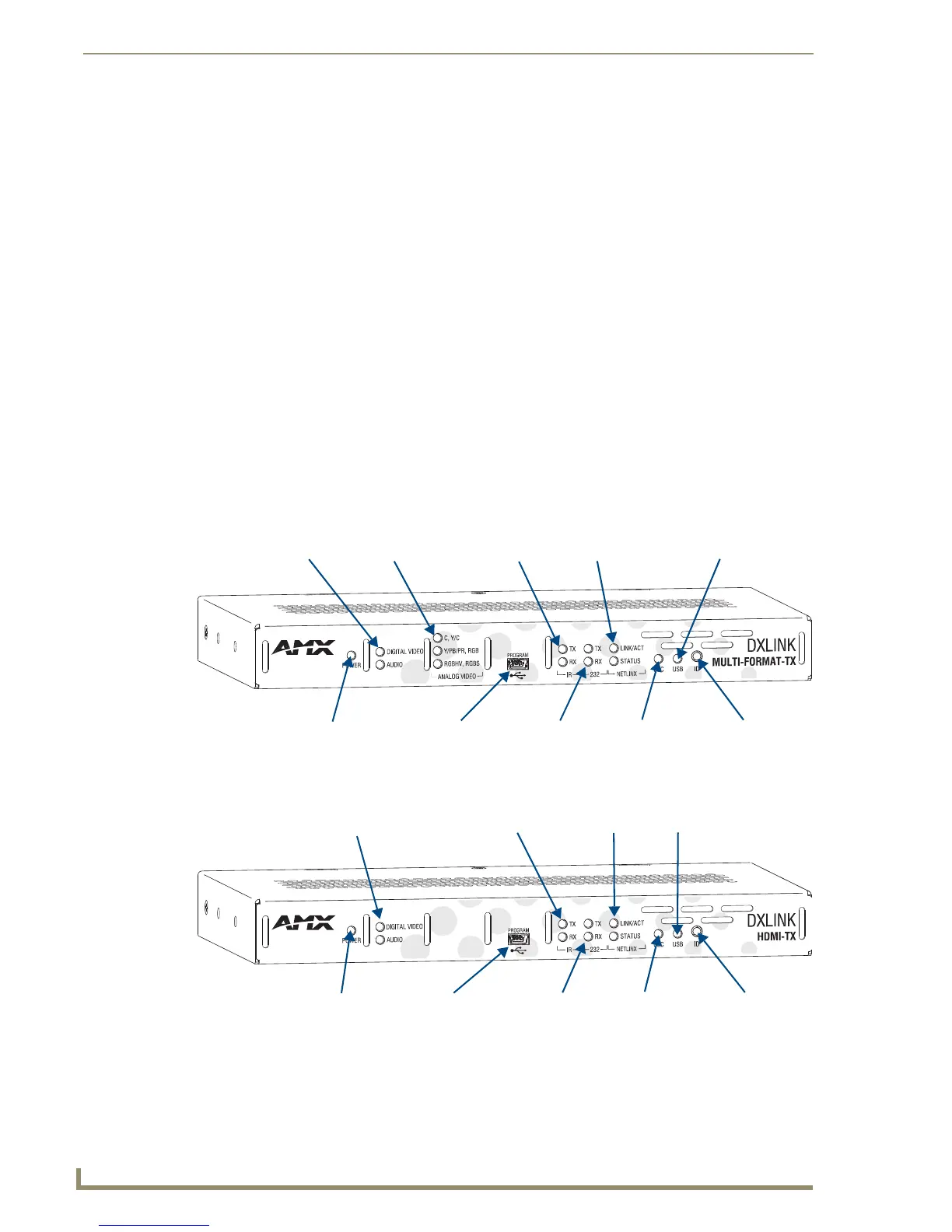

DXLink Multi-Format TX (AVB-TX-MULTI-DXLINK) Front View

DXLink HDMI TX (AVB-TX-HDMI-DXLINK) Front View (product discontinued)

FIG. 1 Multi-Format TX front view

FIG. 2 HDMI TX front view

Digital Video and Audio LEDs

Power LED

CEC LED

IR LEDs

232 (serial) LEDs

NetLinx LEDs USB LED

ID Pushbutton

Analog Video LEDs

Program port
