Appendix G - Ground Wire Attachment
142
Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver
Attaching a Ground Wire to Module without Designated Ground
Earlier model DXLink Transmitter and Receiver Modules without a designated location support chassis
ground attachment through the HDMI jackscrew on the rear of the chassis.
Important: Before attaching the ground wire to the chassis, ensure all connectors are clear.
To attach a ground wire to a module with a jackscrew:
1.
If powered, power down the DXLink Module.
2. Remove the jackscrew and silver washer above the HDMI connector.
3. Secure the ring terminal of the ground wire against the chassis with the jackscrew and washer.
4. Ensure the ground wire is positioned so that it does not interfere with any of the connectors.
5. Attach the ground wire to a common earthed ground (see “Attaching a Ground Wire to a Common
Earthed Ground” on the previous page).
6. Continue the installation process (or reapply power to the module).

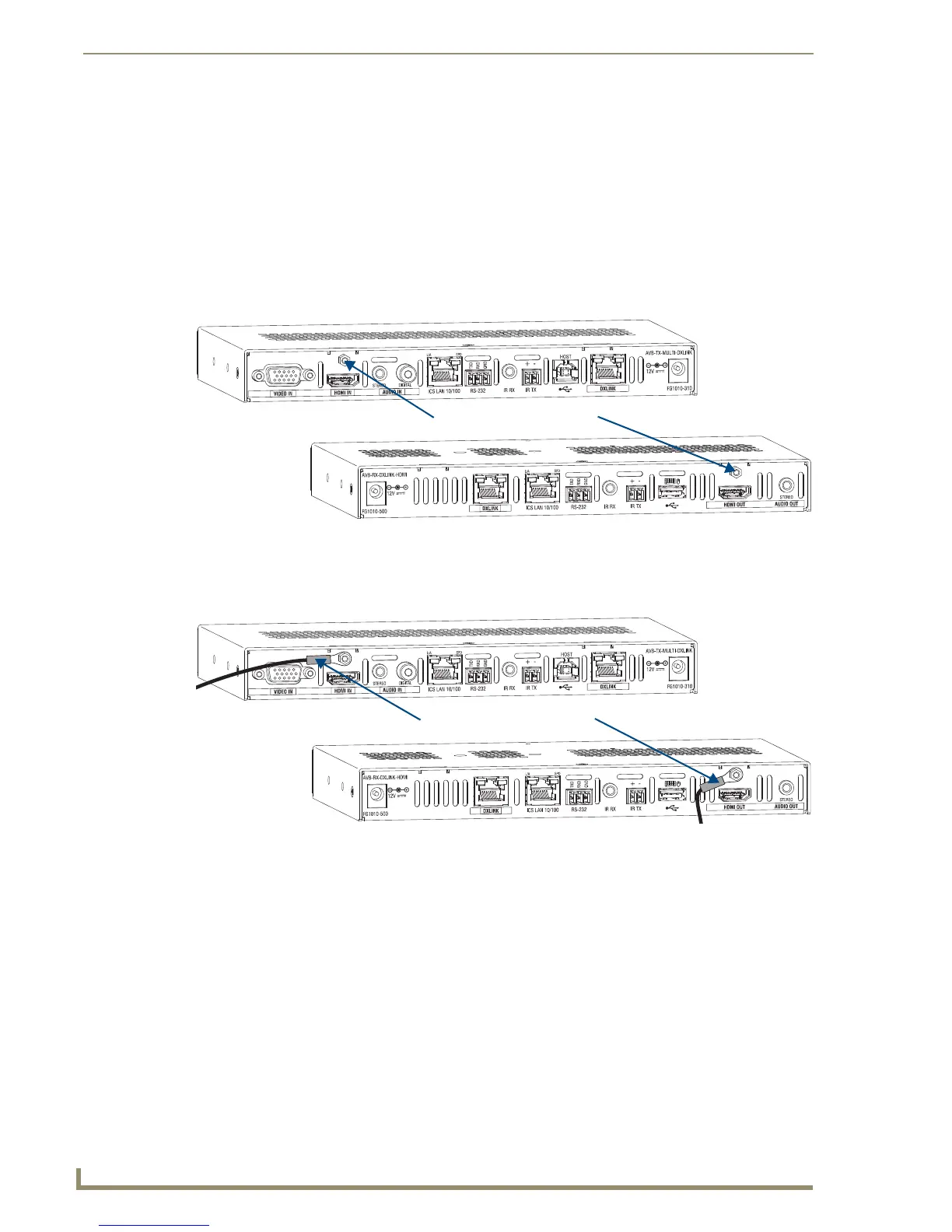

FIG. 44 Remove jackscrew and washer above HDMI connector
FIG. 45 Position ground wire away from connectors
Remove jackscrew and washer
Correctly positioned ground wires
