Appendix D – Cable Details and Pinout Info
Overview
The DXLink units; Multi-Format TX, HDMI TX, Wallplate TX, Decor Wallplate TX, and HDMI RX;
all have connectors for HDMI. The Multi-Format units have an additional port for HD-15 connectors.
The following table shows the video connections available on each of the DXLink units.
Important: System configurations will vary, necessitating different cable requirements for each
system. Cables not available through AMX should come from a trusted cable supplier.
Note: When cabling video through either the HDMI port or HD-15 port, installers should be aware of
how cabling will affect audio signals. For information on audio precedence, see “Audio Type
Precedence” on page 50.
HDMI Connector Cable Pinout
HDMI connectors are found on all DXLink units. These connectors are used to pass HDMI or DVI-D
signals (using a DVI-to-HDMI cable adapter) from a source device to a DXLink Transmitter or from a
DXLink Receiver to a destination device. The following table provides cable pinout details for HDMI
connections.
Connection Type by DXLink Unit
Connection
DXLink Units
HDMI TX Multi-Format TX Wallplate TX Decor Wallplate TX HDMI RX
HDMI
HD-15
Note: DVI-to-HDMI cables may be required for
particular system needs (see page 129).

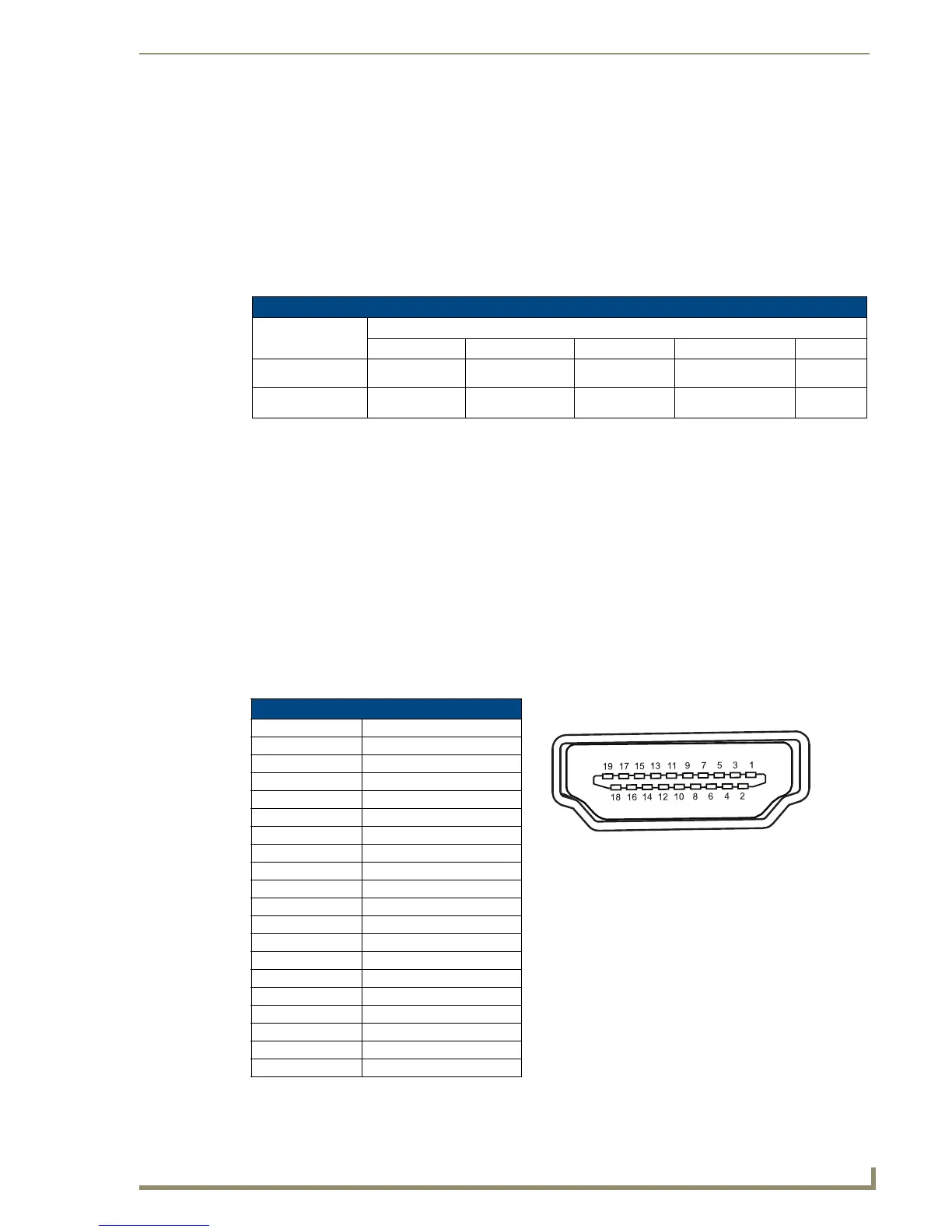

FIG. 41 HDMI pinout information and connector pins
HDMI Connector Cable Pinout
HDMI Input Pin # Signal Name
1TMDS Data2+
2 TMDS Data2 Shield
3TMDS Data2-
4TMDS Data1+
5 TMDS Data1 Shield
6TMDS Data1-
7TMDS Data 0+
8 TMDS Data 0 Shield
9TMDS Data 0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 Reserved, HEC Data
15 SCL
16 SDA
17 DDC/ CEC/ HEC Ground
18 +5 V Power (max 50mA)
19 Hot Plug Detect, HEC Data+
To Next Page
