Product Overview and Specifications
21
Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver
Stereo Audio Out Connector
The Stereo Audio Out connector is a 3.5 mm stereo jack. This connector has an analog audio signal
available for output whether the embedded audio over the DXLink cable originated as 2 channel digital
or analog stereo. If encoded digital audio or multi-channel audio paths are embedded on the HDMI path,
then the local analog out will not be available.
Common Features/Functionality
This section covers the DIP switches, the USB port, HDCP compliance, and IR functionality.
DIP Switches
Tip: For easiest access to the DIP switch toggles, we recommend setting them before installation.
A four-toggle DIP switch is on the bottom of the DXLink Modules, on the rear of the Wallplate TX, and
on the front of the Decor Wallplate TX (the front can be covered with a customer provided standard
decor style front cover plate).
#1 Toggle is used for enabling/disabling the physical ICS LAN 10/100 port (see page 41).
#2 Toggle is used for setting the DXLink Modules to either automatically or manually
determine the DXLink Mode (see page 41).
#3 Toggle is used for enabling/disabling network connectivity of the DXLink Transmitter or
Receiver to a connected NetLinx Central Controller (used for IR ports, serial ports, and
commands to the DXLink unit); see page 42.
#4 Toggle is not functional.
Note: The mounting bracket on the Wallplate TX must be removed (unscrew the four screws from
the bracket and set it aside) before the DIP switch toggles can be set.
For complete information on setting DIP switches (including settings for common scenarios), see the
section starting on page 40.

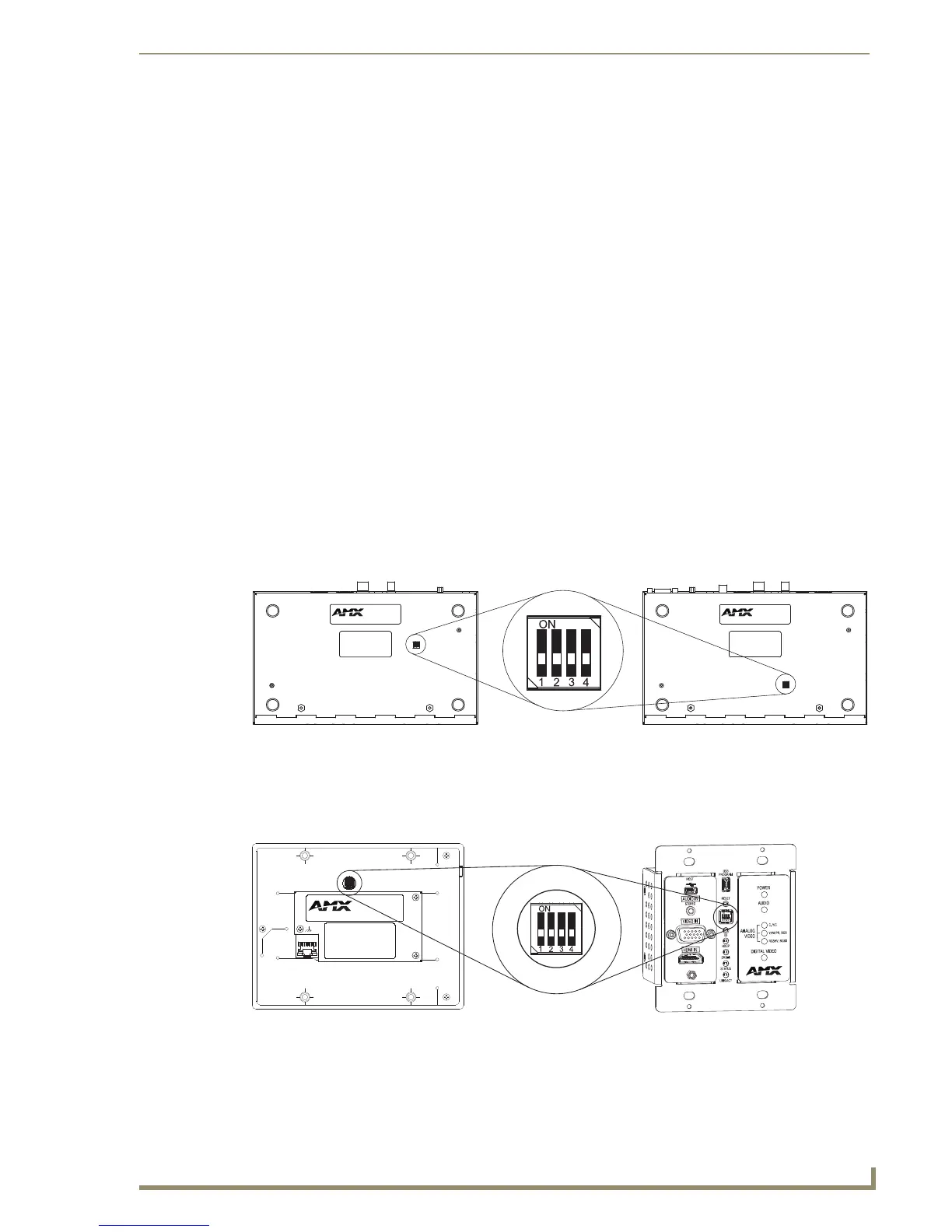

FIG. 10 DIP switch location on DXLink Modules
FIG. 11 DIP switch on Wallplate TX (remove mounting bracket) and on Decor Wallplate TX
Transmitter
Receiver
DIP switch
DIP switch
Decor Wallplate TX
Wallplate TX
