Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver
DXLink Multi-Format Wallplate TX (AVB-WP-TX-MULTI-DXLINK) Front View
Components located on front of Wallplate TX:
HDMI In – HDMI connector (with locking center screw) for digital video and embedded
digital audio (supports a DVI-D signal with use of DVI-to-HDMI cable adapter). When more
than one audio signal is present, HDMI embedded audio takes precedence over analog audio.
Digital Video LED – Indicates the unit is configured to pass HDMI with embedded audio
(default).
Video In – An HD-15 connector for analog video: C (composite), Y/c, Y/Pb/Pr, RGB,
RGBHV, or RGBS. Pinouts for analog video are on page 128.
Analog Video LEDs – Illuminates when the Wallplate TX is configured to pass analog video:
composite or Y/c; Y/Pb/Pr or RGB; RGBHV or RGBS.
Audio In Stereo – Audio connector is a 3.5 mm stereo jack. An analog audio signal is only
available when HDMI embedded digital audio is not present (or configured for analog audio).
Audio LED – Indicates the unit is configured to pass analog audio (coupled with digital or
analog video path).
USB Host port – Mini-B USB connector (supports USB host) for receiving keyboard / mouse
commands from a specific RX. (USB port will be supported in a future firmware upgrade.)
Power LED – Indicates when the Wallplate TX is powered on.
Components located on left and bottom edges of Wallplate TX:
Reset button (left) – Resets the Wallplate TX’s CPU (acts like a power cycle soft reboot).
Program port (left) – This port (USB mini-B connector) supports DGX Configuration
software for programming a customer VGA EDID.
ID Pushbutton (left) – Places the Wallplate TX in ID Mode for setting the NetLinx ID (device
only) and provides additional functionality, such as placing the device in Static IP Mode or
DHCP Mode.
NetLinx LEDs (bottom) – Left green LED (L = Link/Act) indicates network communication
activity; right green LED (S = Status) indicates unit status
.
DXLink LEDs (bottom) – Left yellow LED indicates HDCP status; right green LED indicates
that a valid DXLink connection has been established.

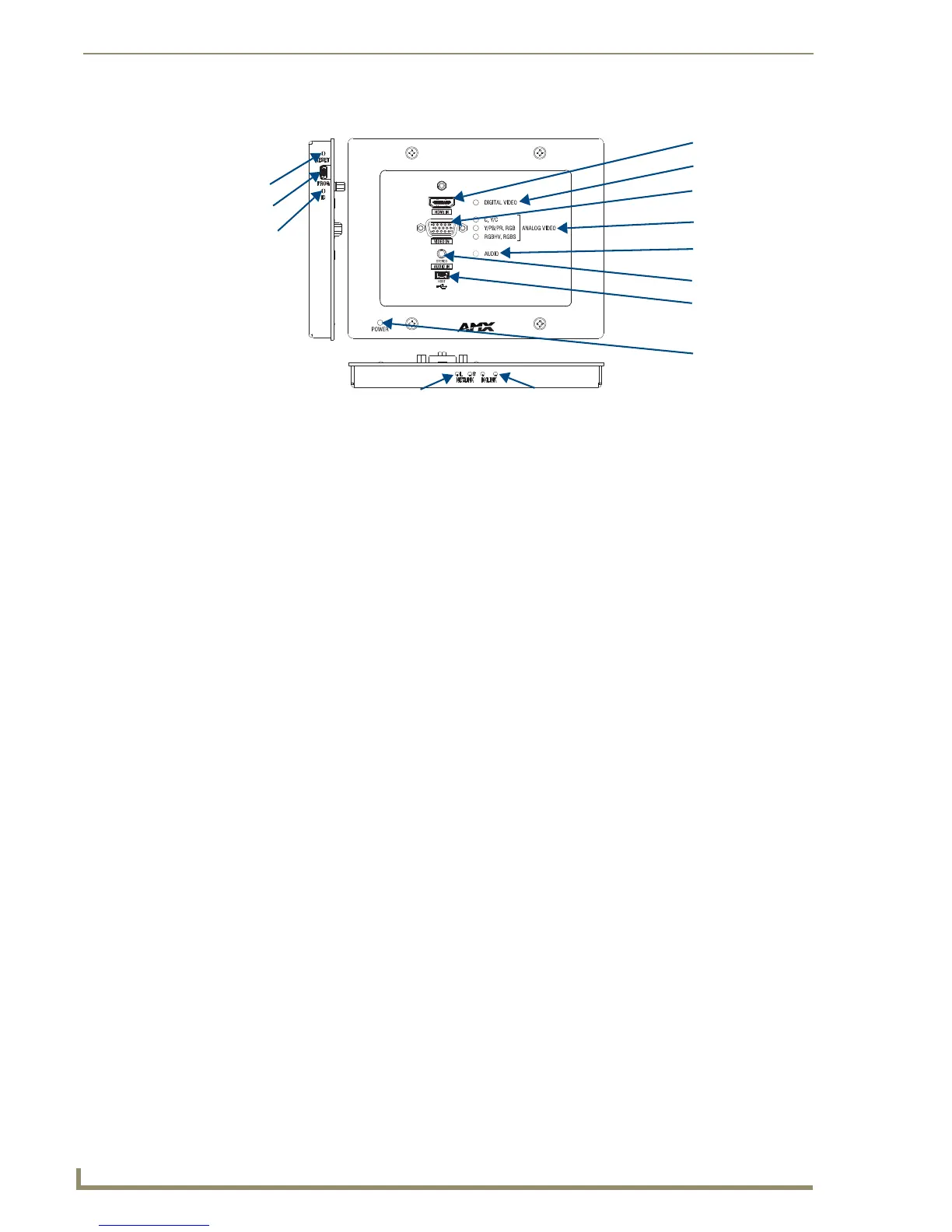

FIG. 3 Multi-Format Wallplate TX front view, plus left edge and bottom edge views
Left edge
Reset button
Program port
ID Pushbutton
Analog Video LEDs
HD-15 Input
Digital Video LED
Audio LED
HDMI Input
USB Host
Stereo Audio Input
Power LED
DXLink LEDs
Bottom edge
NetLinx LEDs

AMX DXLink Specifications

General

Category	Receiver
Dimensions	Varies by model
Weight	Varies by model
HDCP Compliance	Yes
Video Input Signal	HDMI
Control	RS-232, IR, Ethernet
Input Connector	HDMI
Output Connector	HDMI
Operating Temperature	0° to 50° C
Humidity	10% to 90% non-condensing
Storage Temperature	-20° to 70° C
