Product Overview and Specifications
19
Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver
Receiver Module LEDs
* When the output cable is disconnected from the HDMI RX or if no EDID can be found on the destination device,
the last used Scaling Mode LED will be ON. In either case, the HDMI RX will continue to hold its output resolution
to the last known preferred resolution until a power cycle or reconnection of a sink with a valid EDID. On power
up without a valid EDID, the default preferred output resolution presented will be 1280x1024 @ 60 Hz until a
different EDID is detected.
Note: For detailed behavior of the NetLinx Link/Act and Status LEDs on the module’s front, see
page 61. For detailed behavior of the RJ-45 connectors’ LEDs on the module’s rear, see page 48
through page 48.
Receiver Rear View
The following components are located on the rear of the HDMI RX (left to right):
Power Jack
Important: If desktop power is used to power the Receiver, only the provided desktop power supply
should be used and it must not
be altered in any way. Remote power can also be provided via a
switcher, PDXL-2 (FG1090-170), or PS-POE-AT-TC (FG423-84).
The power receptacle is a 2.1 mm DC jack for connecting power. Power can come from a locally
connected DC supply of 12 V. An automatically adjusting universal 110/220 IEC power supply is
provided. The power supply is ENERGY STAR
®
qualified to ensure maximum efficiency and savings.
HDMI RX Indicator LEDs
LED Normal Display Indicates
Power Green Power is applied to the Receiver
Video Green A video signal is present through the Receiver
Audio Green An embedded audio signal is present through the Receiver
Scaling:
– Bypass
– Auto
– Manual
One LED is green
The other two are off
The Receiver is in one of the three modes for scaling
• At initial power up, the Receiver defaults to the Auto scaling
option*
• Pressing the Scaling button cycles the module through the
options: Bypass, Auto, and Manual
• If Bypass is solid and Auto is flashing, then the RX is trying to read
EDID from the sink
IR TX Red IR TX active communication
IR RX Yellow IR RX active communication
Serial TX Red Serial TX active communication
Serial RX Yellow Serial RX active communication
NetLinx Link/Act Green Active LAN connection to an AMX Network
(Blinking = #3 Toggle OFF)
NetLinx Status Green LAN connection is active
CEC OFF CEC is not currently supported
USB Yellow USB is not currently supported (this functionality will be
available in a future firmware upgrade)

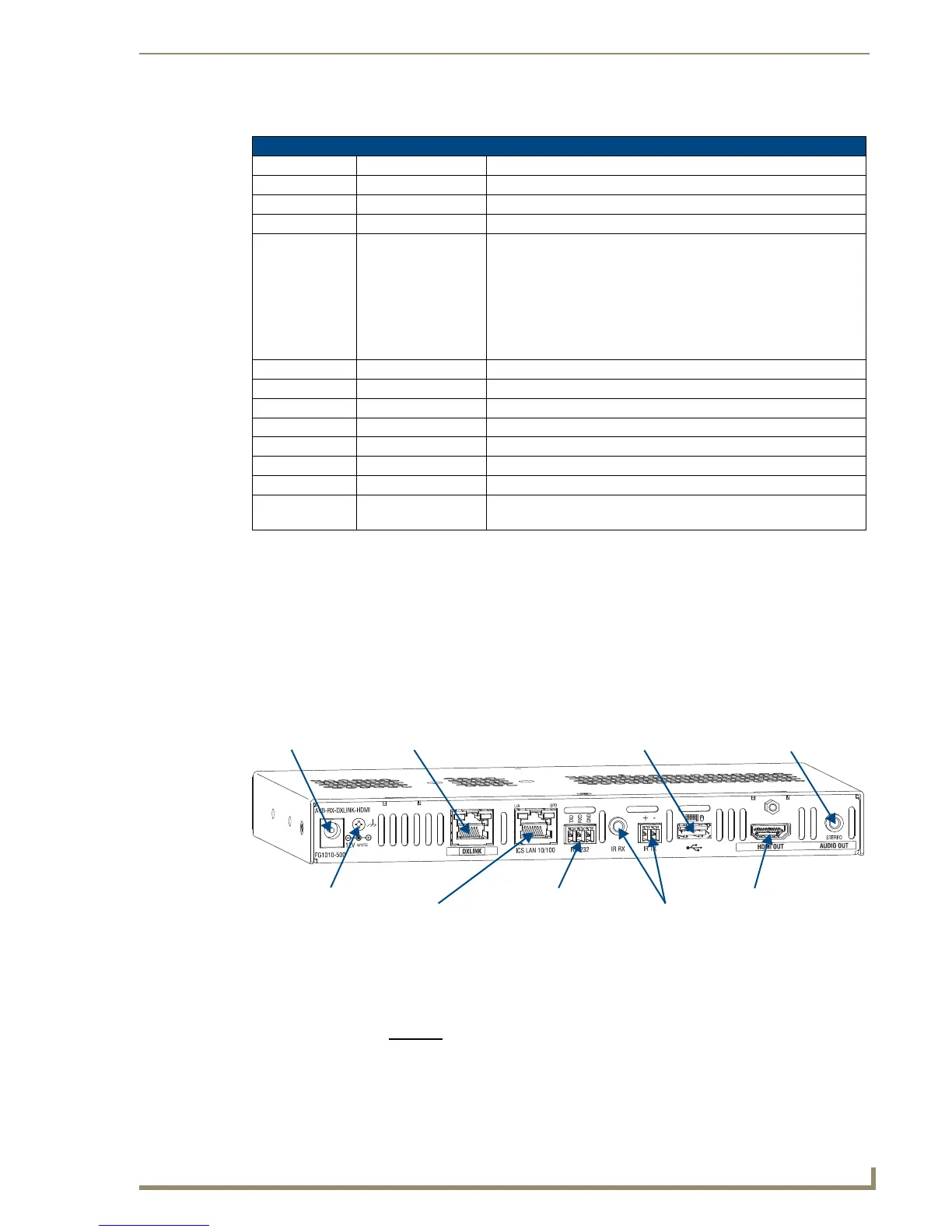

FIG. 9
HDMI RX rear view
IR ports
RS-232 port
HDMI Out connector
Stereo Audio Out connector
USB port
ICS LAN 10/100 connector
Power jack DXLink input connector
Ground screw
