IRL File Transfers
78
Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver

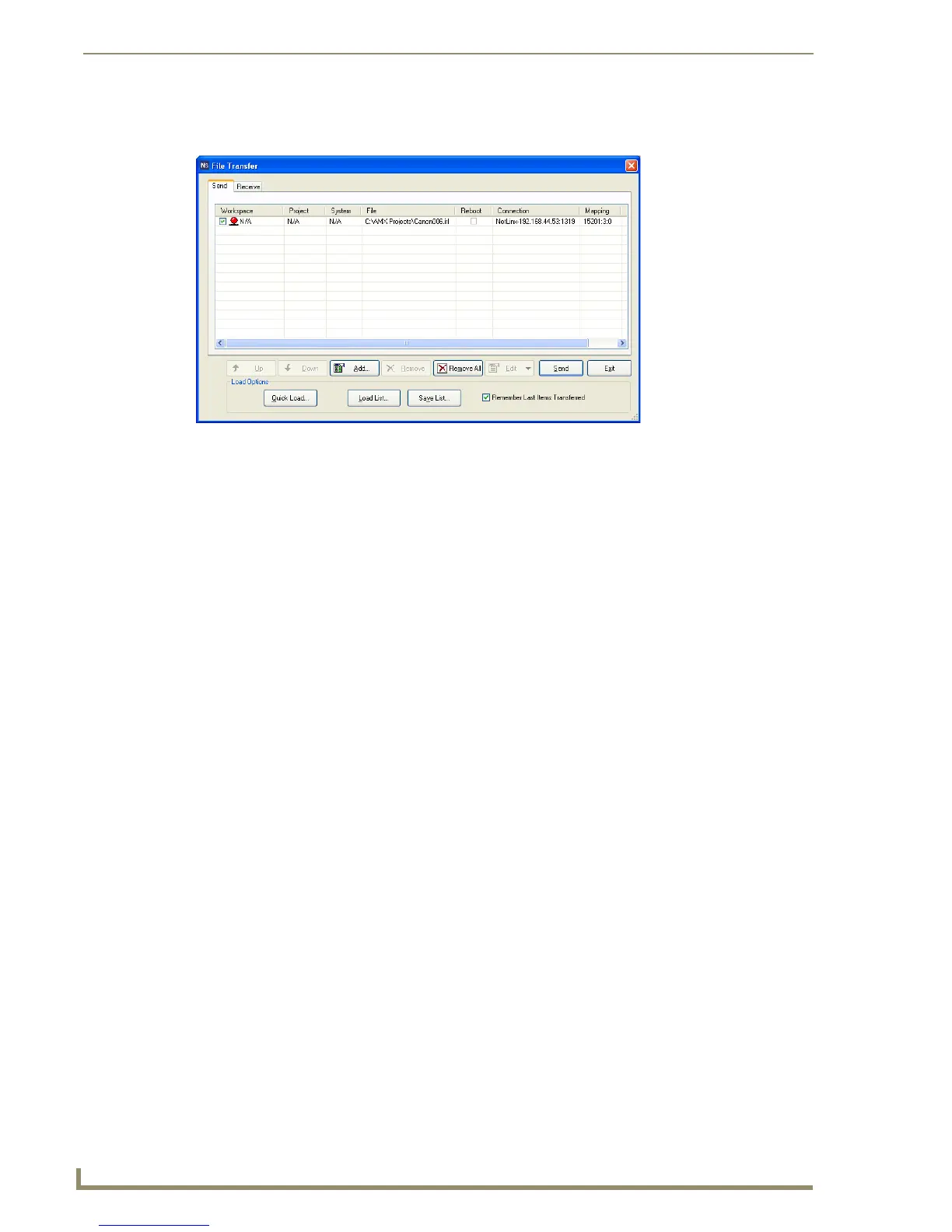

10. Click OK to close the Select Files for File Transfer dialog box and return to the File Transfer dialog
box. The IRL file appears in the File queue.
11. Click Send to transfer the file to the Transmitter or Receiver that the file is mapped to.
Additional Documentation
For additional information on using NetLinx Studio, refer to the Operation/Reference Guide – NetLinx
Studio v3.3 and the WebConsole & Programming Guide – NetLinx Integrated Controllers (available at
www.amx.com).

AMX DXLink Specifications

General

Category	Receiver
Dimensions	Varies by model
Weight	Varies by model
HDCP Compliance	Yes
Video Input Signal	HDMI
Control	RS-232, IR, Ethernet
Input Connector	HDMI
Output Connector	HDMI
Operating Temperature	0° to 50° C
Humidity	10% to 90% non-condensing
Storage Temperature	-20° to 70° C
