NetLinx Programming of DXLink Transmitters and Receivers
80
Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver
In NetLinx Studio’s OnLine Tree, the DXLink Transmitters and Receivers each display their ports.
Note: For additional information on using NetLinx Studio, refer to the “Operation/Reference Guide –
NetLinx Studio v3.3” and the “WebConsole & Programming Guide – NetLinx Integrated Controllers”
(available at www.amx.com).
Note: All command text is based on a Unicode index.
Tip: Occasionally new firmware versions affect SEND_COMMANDs. If a command does not
produce the expected results, we suggest checking the product’s current firmware version against
the information in the “Firmware Version” table on page 108.

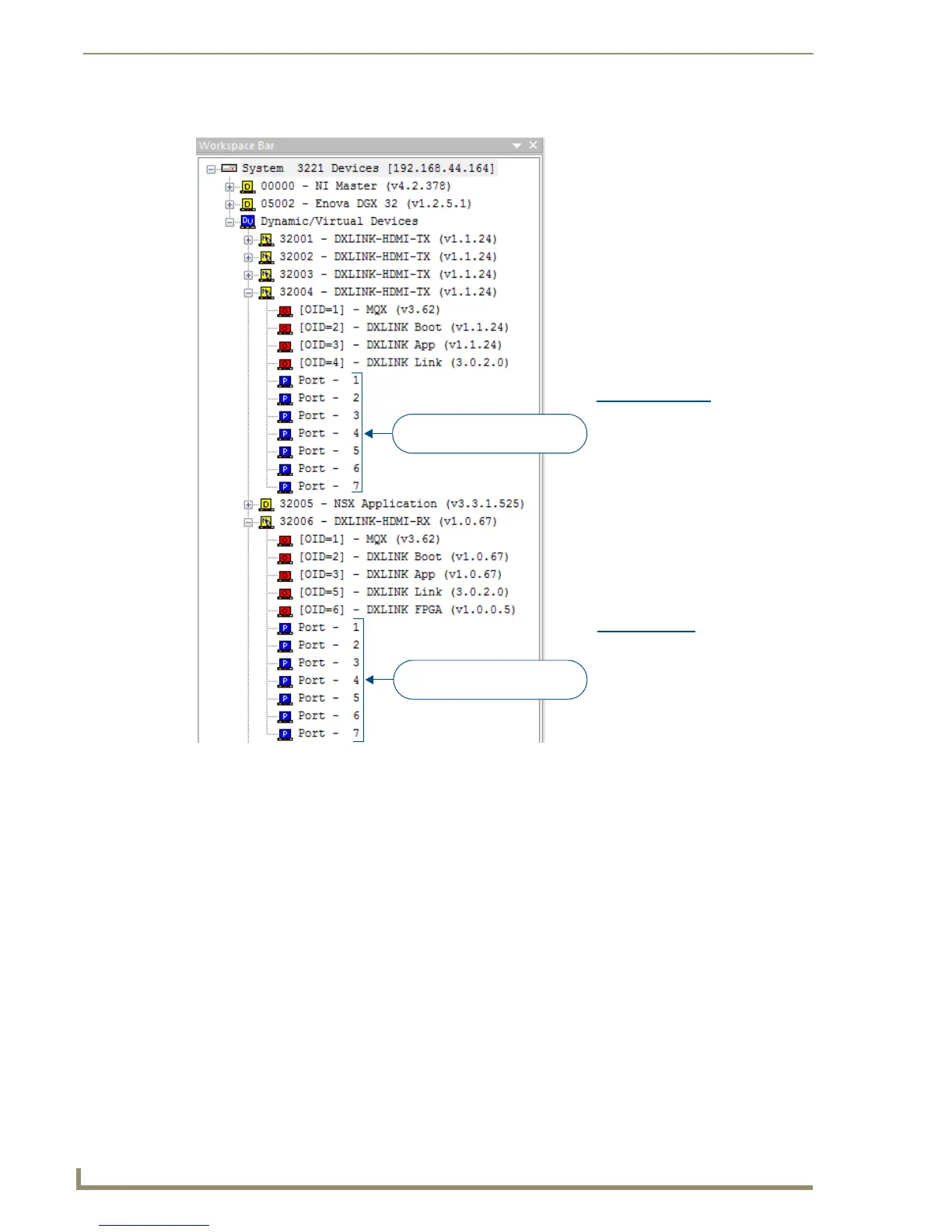

FIG. 39 NetLinx Studio OnLine Tree - Ports 1 through 7 on a DXLink HDMI Transmitter and Receiver
Ports 1-7 on DXLink Transmitter
(device number 32004)
Port 1 - Serial ICSP (COM)
Port 2 - Not used
Port 3 - IR Output*
Port 4 - IR Input*
Port 5 - USB (HID) input and output
Port 6 - Audio/Video Output
Port 7 - Audio/Video Input
Ports 1-7 on DXLink Receiver
(device number 32006)
Port 1 - Serial ICSP (COM)
Port 2 - Not used
Port 3 - IR Output
Port 4 - IR Input
Port 5 - USB (HID) host data
Port 6 - Audio/Video Output
Port 7 - Audio/Video Input
* IR Input and Output ports are
not used on the Wallplate TX
DXLink Transmitter
DXLink Receiver
Port 8 - Analog Video Input**
**Multi-Format TX, Wallplate TX,
or on the Decor Wallplate TX.
and Decor Wallplate TX
Port details for TX and RX in NetLinx Studio
