Anderson Group Self-loading Bale Carrier TSR-3450 – Operator's Manual 35

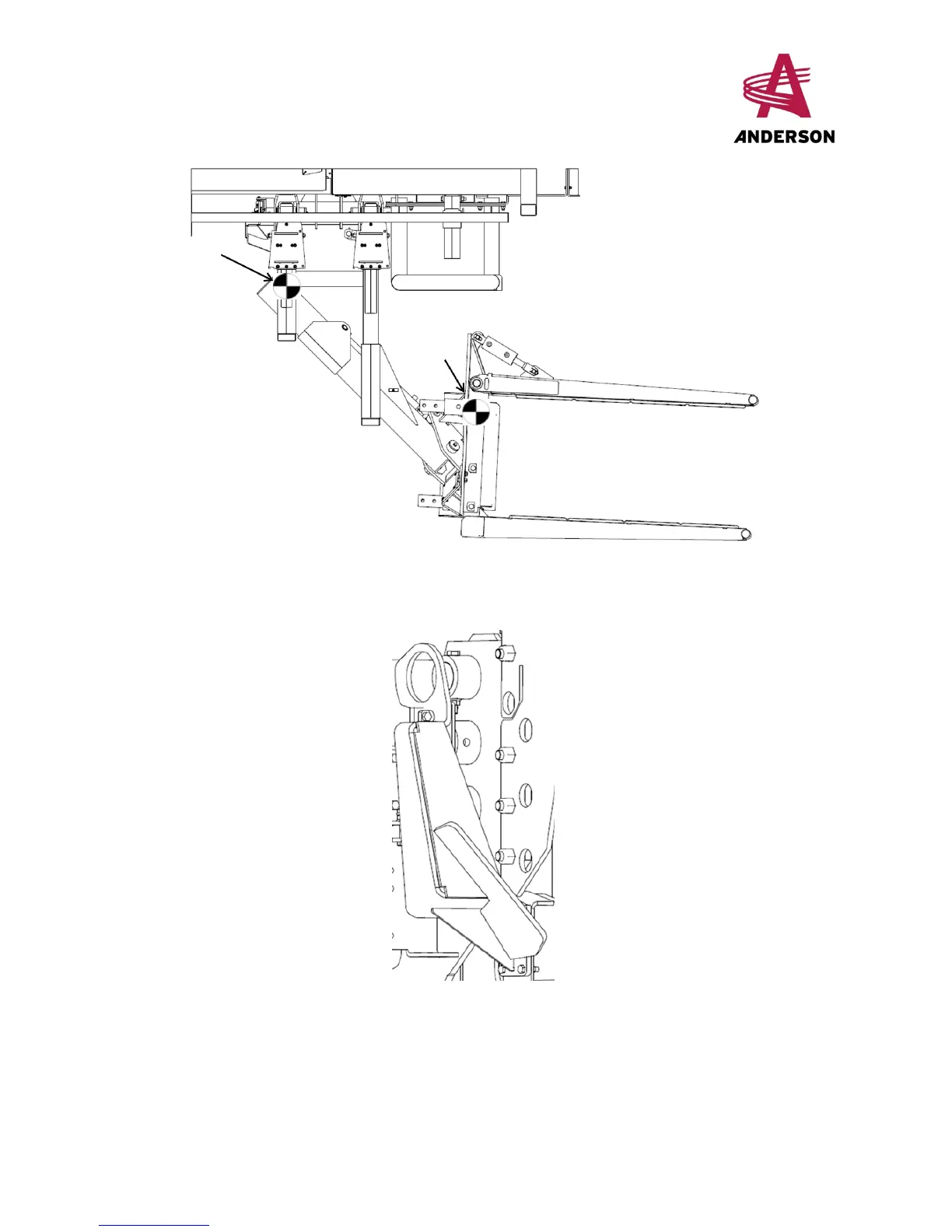

Figure 11– Chain Attachment Points
1. Remove the diverter valve cam (see Figure 12 - Diverter Valve Cam).
Figure 12- Diverter Valve Cam
2. Remove the bolts and washers for the two arm pivot pins, and then remove the pins.
3. Remove the pin screw at the base of the arm cylinder and remove the pin.
