Determining Remaining Battery Life
When the AC-DC adapter is disengaged from the Site Master, a battery
indicator symbol is continuously displayed at the top-right corner of the
display (Figure 2-9). A totally black bar indicates a fully charged bat-
tery.
2-29
Chapter 2 Operation

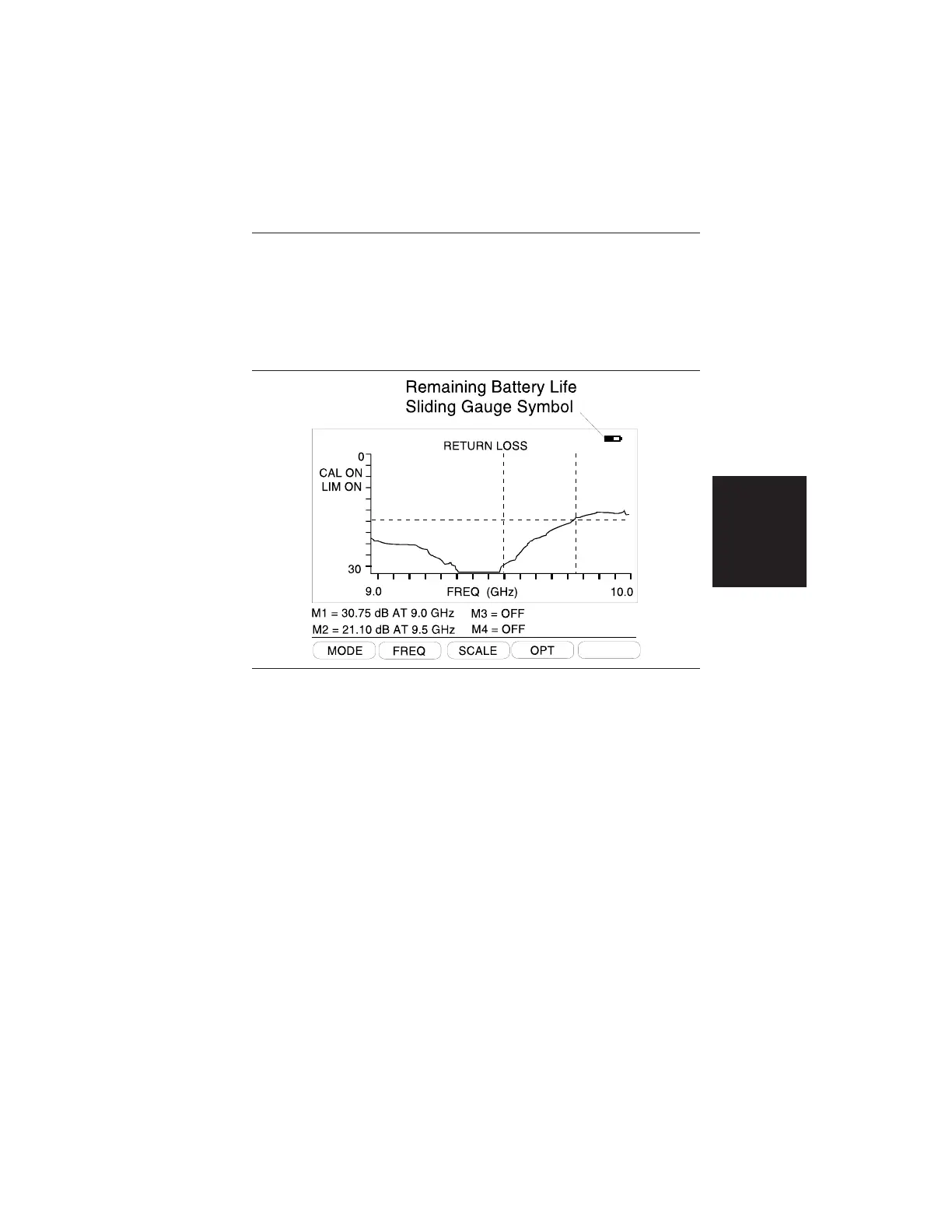

Figure 2-9. Battery Monitor
