Chapter 2 — Instrument Overview 2-11 Test Panel Connectors
MS272xB + MS8911B UG PN: 10580-00175 Rev. N 2-15
MS8911B
Connector Descriptions
Tracking Generator Output Connector
50 Ω Type-N female connector. This connector is unique to the MS2721B and is present when
Option 20 is installed. The Tracking Generator option is not available on models MS2723B,
MS2724B, and MS8911B. For Tracking Generator operation, refer to the Signal Generator
Measurement Guide (listed in Appendix A).
To prevent damage to your instrument, do not use pliers or a plain wrench to tighten the
Type-N connector. Do not overtighten the connector. The recommended torque is 12 lbf·in to
15 lbf·in (1.36 N·m to 1.70 N·m).

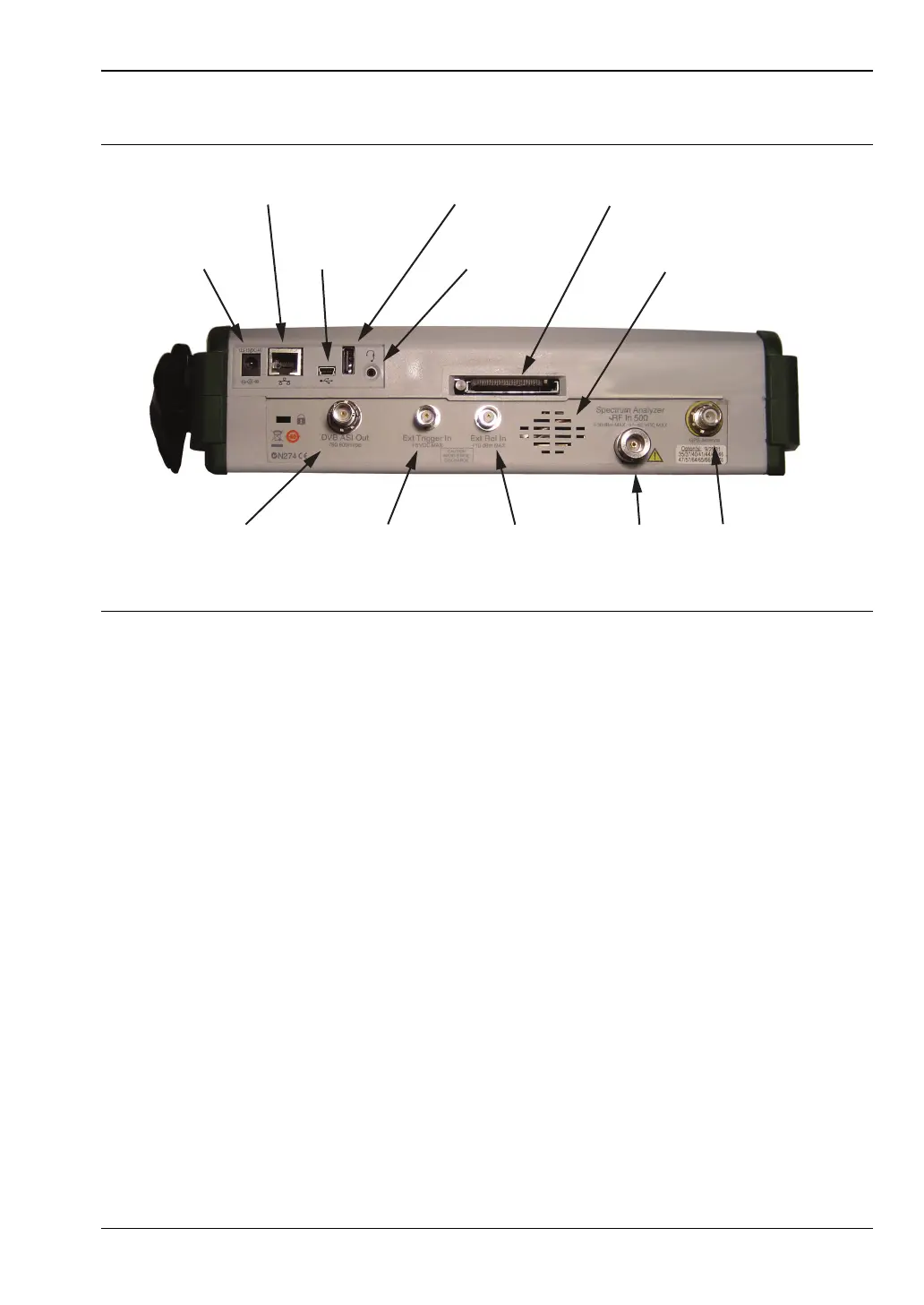

Figure 2-12. Test Panel Connectors for MS8911B
External
Power
USB Interface
Mini-B
USB Interface
Type-A
Headset
Jack
Compact Flash
Socket
Fan Exhaust Port
LAN
Connection
Digital
Signal
Output
External
Trigger
In
External
Reference
In
RF
In
GPS
Antenna
Connector
