Chapter 3 — Options Verification 3-3 Option 40 and/or 41, GSM/GPRS/EDGE Signal Analyzer Verification
MS272xC MM PN: 10580-00279 Rev. E 3-5
3-3 Option 40 and/or 41, GSM/GPRS/EDGE Signal Analyzer Verification
The tests in this section verify the optional GSM/GPRS/EDGE Signal Analyzer functions in Model MS272xC
Spectrum Master.
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model MA2482D
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
• Power Splitter, Aeroflex/Weinschel Model 1870A
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup

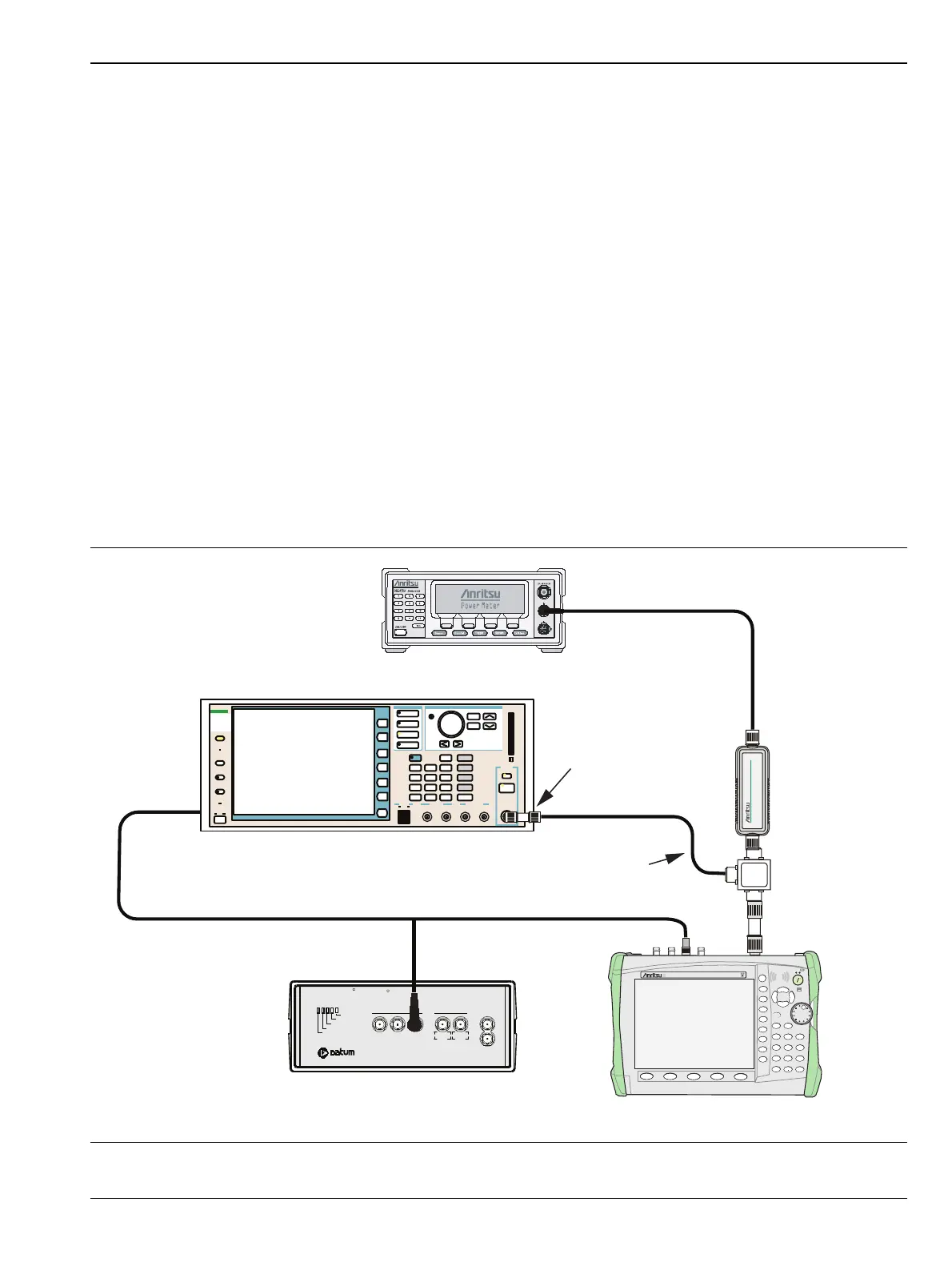

Figure 3-2. GSM/GPRS/EDGE, Test Setup
