TD-LTE Channel Power Accuracy Tests (Option 551 and Option 543)
The tests in this section verify the function of the optional TD-LTE Signal Analyzer in Model MS272xC.
Setup
Procedure
1. Connect the Power Sensor to the power meter and zero the sensor.
2. Set the Power Meter Measurement MODE to True RMS, set Averaging MODE to Moving, and set
Averaging NUMBER to 256.
3. Set the calibration factor frequency of the power sensor to 750 MHz.
4. Connect the Power Sensor, 1870A splitter, 6 dB attenuators (quantity 2), as shown in Figure 3-13.

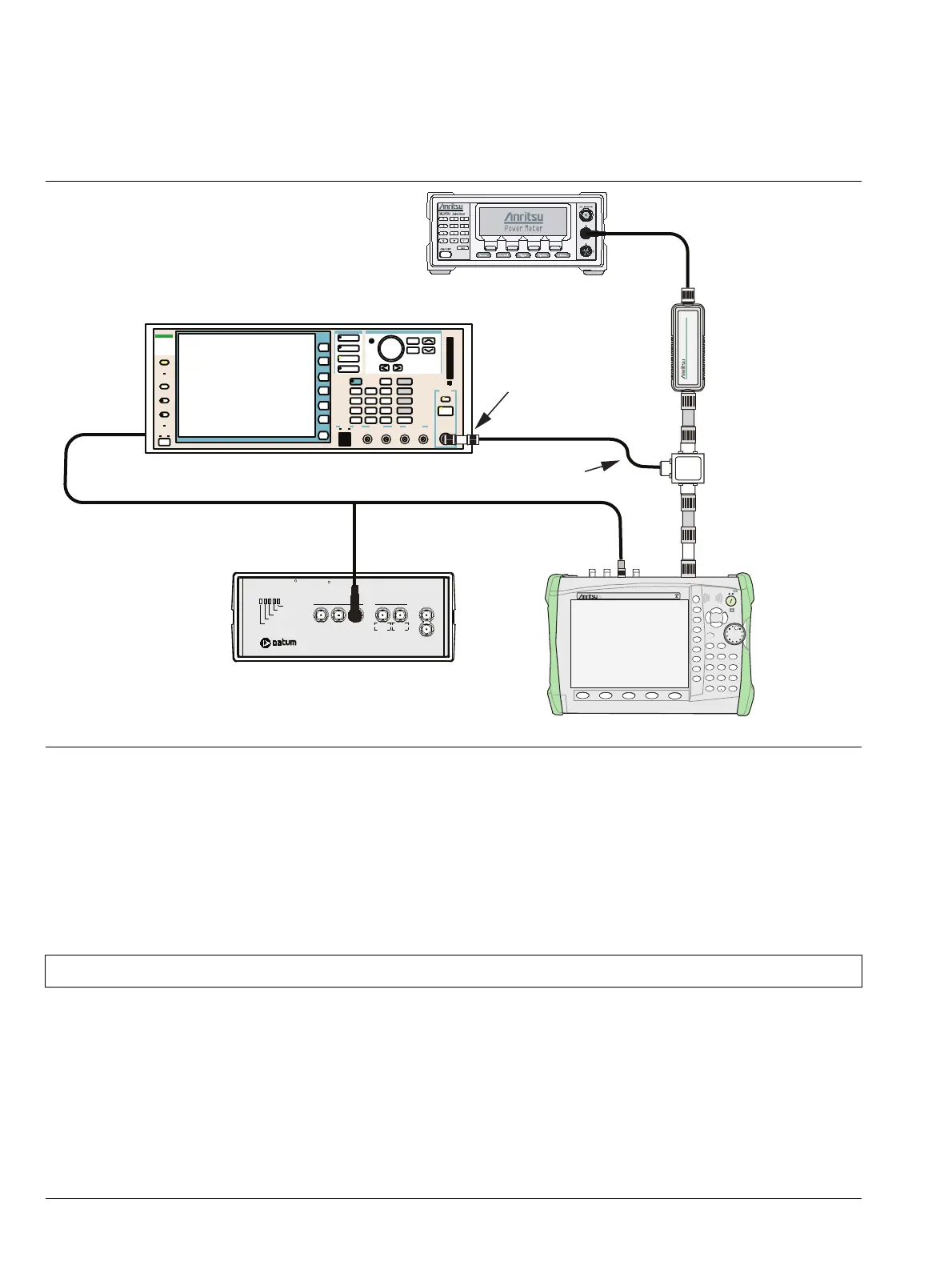

Figure 3-13. TD-LTE Signal Analyzer Option Verification
Note The TD-LTE pattern requires a Waveform Data license MX370110A that must be purchased.
