Anritsu Spectrum Master MS2722C - Option 62 And;Or Option 63, EVDO Signal Analyzer Option Verification

3-8 Option 62 and/or Option 63, EVDO Signal Analyzer Option Verification Chapter 3 — Options
3-30 PN: 10580-00279 Rev. E MS272xC MM
3-8 Option 62 and/or Option 63, EVDO Signal Analyzer Option Verification
The tests in this section verify the optional EVDO Signal Analyzer functions in Model MS272xC
Spectrum Master.
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model MA2482D
• Power Splitter, Aeroflex/Weinschel Model 1870A
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup

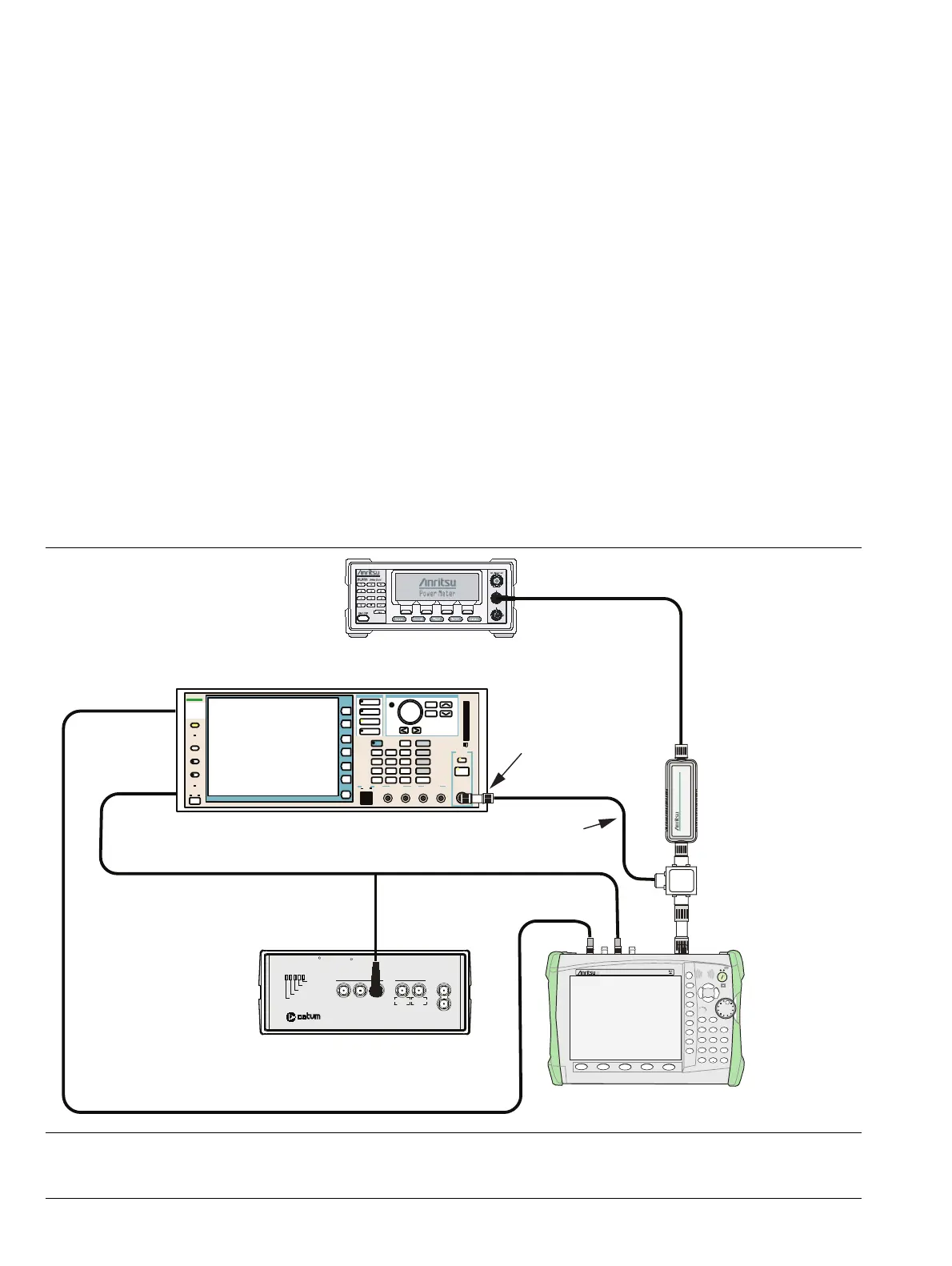

Figure 3-9. EVDO Signal Analyzer, Test Setup
MG3700A Vector Signal Generator
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
10 MHz Reference
Oscillator Warmup
Oscillator Ready
Failure
1 PPS Sync
1 PPS OUT
1 MH z 5 MHz 1 0 MH
5 MHz 10 MHz
Sine wave Out AUX
1 PPS IN
Power
TESTIME
PLUS
R
RubiSource T&M
R
10 MHz
Sine Out
0
1
Preset
4
Measure
7
File
2
Calibrate
5
Trace
8
System
3
Sweep
6
Limit
9
Mode
Shift
Enter
Back
On
+/-
Off
ESC
Fault
MS2722C
Spectrum Analyzer
MS272xC Spectrum Master
SpectrumMaster
From: VSG AUX Input/Output Connector 1
To: MS272xC Ext Trigger In
ML2438A Power Meter
MA2482D
Power Sensor
1870A
Power Splitter
N(m) to N(m) Adapter
Adapter
15NNF50-1.5B
Ext Ref In
(back panel)
Ext Ref In
