MS272xC MM PN: 10580-00279 Rev. E 5-1
Chapter 5 — Assembly Replacement
5-1 Replaceable Parts List
Refer to Table 1-4, “List of Replaceable Parts” on page 1-5 for the list of replaceable parts. Refer to the
following sections for basic replacement instructions.
5-2 Opening the Spectrum Master Case
This procedure provides instructions for opening the Spectrum Master case. With the case opened, the internal
assemblies can be removed and replaced, as detailed in the following sections.
1. Remove the battery door and battery as shown in Section 4-2 “Battery Pack Removal and Replacement ”
on page 4-2.
2. Units with Option 31: Carefully loosen and remove the lock nut and washer from the GPS SMA
connector. Carefully push the SMA into the case (Figure 5-1).
3. Place the Spectrum Master face down on a stable work surface that will not scratch the display.
Note
Many of the procedures in this section are generic, and apply to many similar instruments. Photos
and illustrations used are representative and may show instruments other than the Spectrum Master.
Caution
Electrostatic Discharge (ESD) can damage the highly sensitive circuits in the instrument.
Repair of damage that is found to be caused by electrostatic discharge is not covered under
warranty.

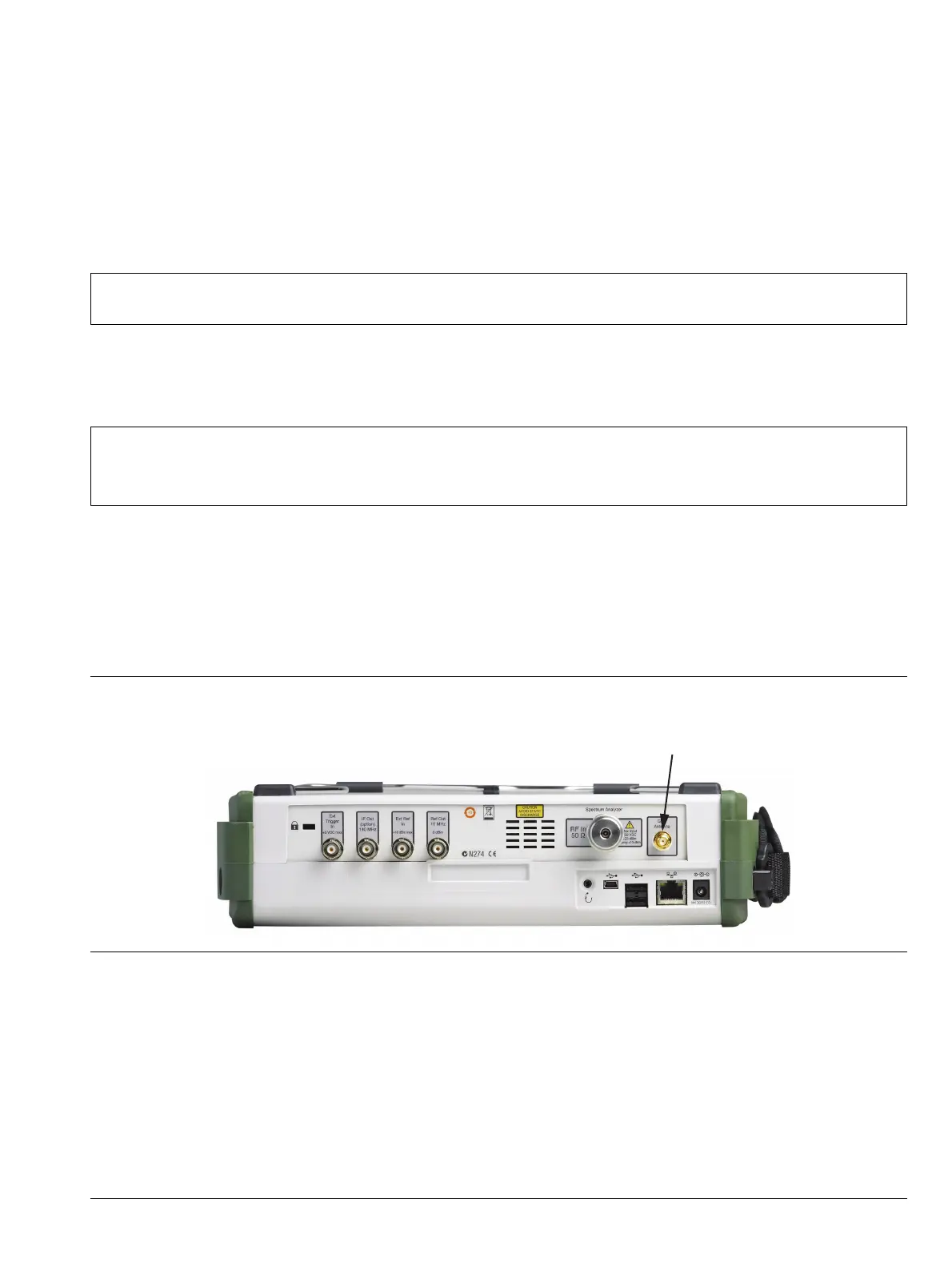

Figure 5-1. Remove Option 31 Lock Nut and Waster
Option 31
GPS Antenna
Connector
