2-6 Resolution Bandwidth Accuracy Verification
The following test is used to verify the resolution bandwidth accuracy of the spectrum analyzer in the
MS272xC Spectrum Master.
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3692x Synthesized Signal Source
• Frequency Reference Symmetricom Rubisource T&M
• Anritsu 34RKNF50 50 ohm Adapter
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2725C and MS2726C
• Anritsu MG3695C Synthesized Signal Source with options 2, 3, 4, 15, and 22
• Frequency Reference Symmetricom Rubisource T&M
• Anritsu 34VKF50 50 ohm Adapter
• Anritsu 3670K50-2 RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Setup

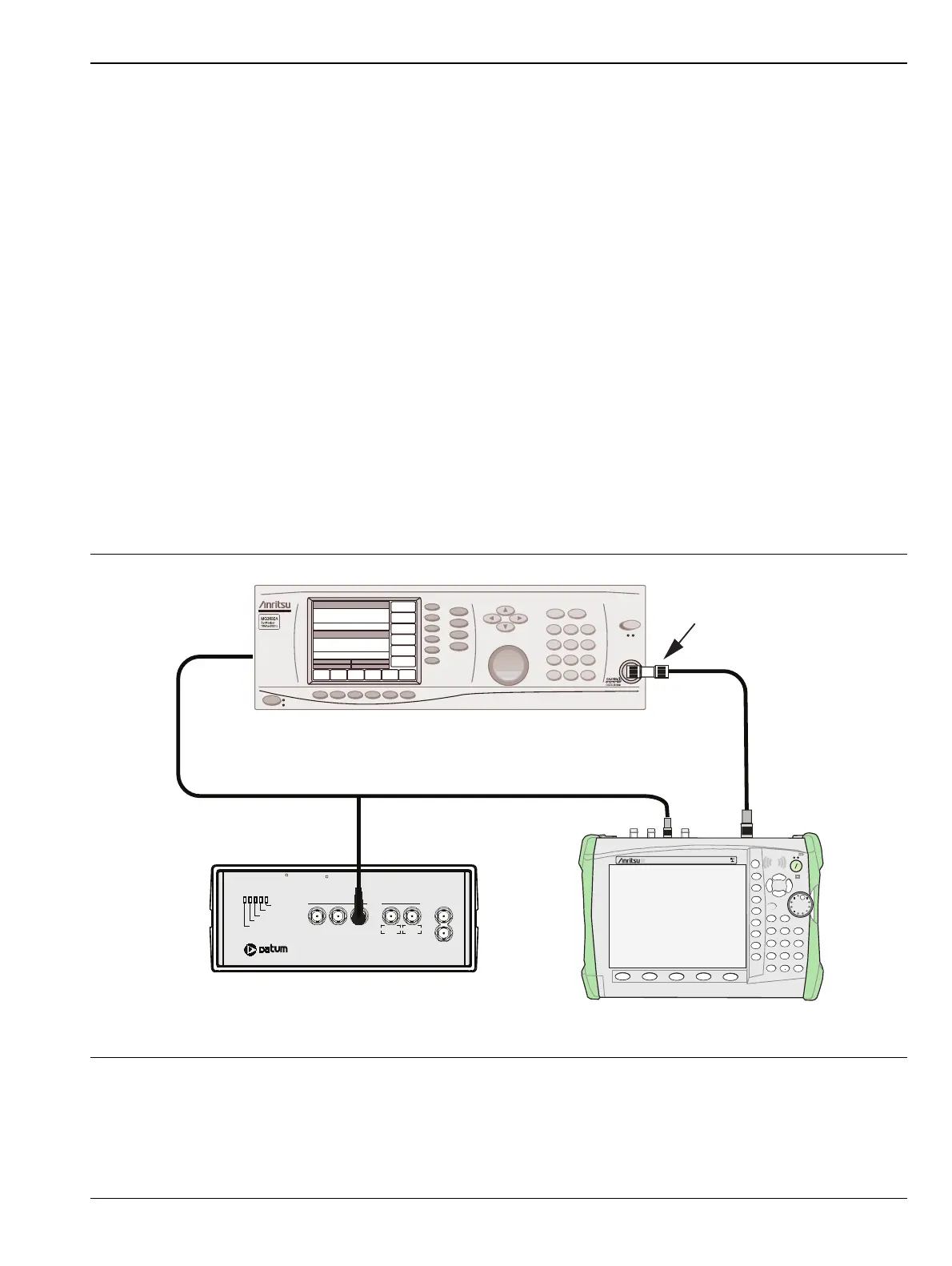

Figure 2-1. Resolution Bandwidth Accuracy Test Setup
