Anyview A8 - Screen Display

Patient monitor User’s manual
Chapter 3-5

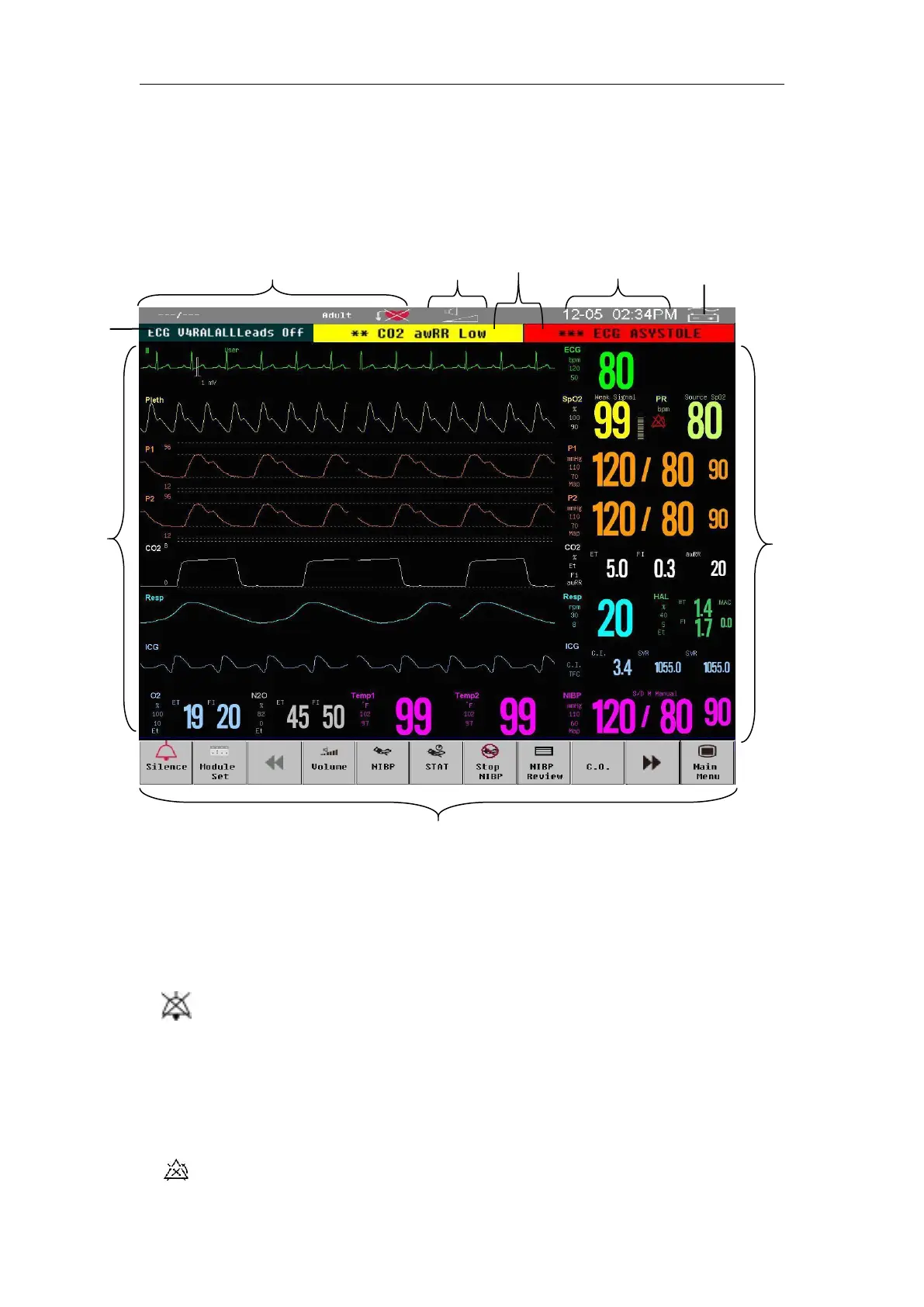

3.8 Screen Display
The monitor adopts a display screen of high-resolution TFT LCD.
Measurement numerics, waveforms, patient information, alarm area and menu
can be displayed on the screen. Standard screen is shown as follows:
1. Patient info area
Shows the room number, bed number, patient name, patient category and
paced status of patient.
2. Alarm status area
The alarm sound is off.
3. Physiological alarm area
Shows the physiological alarm messages, medium-level and low-level
alarm messages display on the left, while the high-level alarm messages
display on the right.
The alarm is suspended display on the high-level alarm area.
4
9
7
1
8
3
6
2
5
