If the【Paced】status has been set to【Yes】and the system detects paced
signal, the paced pulse “
︱
” will be marked on the ECG wave. （ As it shown
above）
 Parameter Display
If the monitor doesn’t obtain an effective HR value by ECG measuring,
the PR value will be displayed instead here.
7.5 Setting ECG
Select the ECG parameter area to enter the ECG parameter setting menu.
 Setting ECG Mode
The ECG mode can be selected as required, including 【 User 】 ,
【Diagnosis】,【Monitor】and【Surgery】.
【User】: Users can manually set the switches of various filters as required.
【
Diagnosis
】
: Use when diagnostic quality is required. The unfiltered ECG
wave is displayed so that changes of waveform are visible.
【Monitor】: Use under the normal measurement.
【 Surgery 】 :Use while the signal is distorted by high-frequency or
low-frequency interference. During a surgery, selecting the mode【Surgery】
can reduce artifacts and the interference from electro-surgical units. Under
normal measurement conditions, selecting
【
Surgery
】
may suppress the QRS
complexes too much so as to interfere the ECG analysis.
 The states of the filter under various ECG modes
Filter
ECG mode
Drift filter
HUM filter
EMG filter
Diagnosis
Off
Optional
Off
Surgery
Intense
On
Intense
Monitor
Mild
On
Mild
User
Optional
Optional
Optional

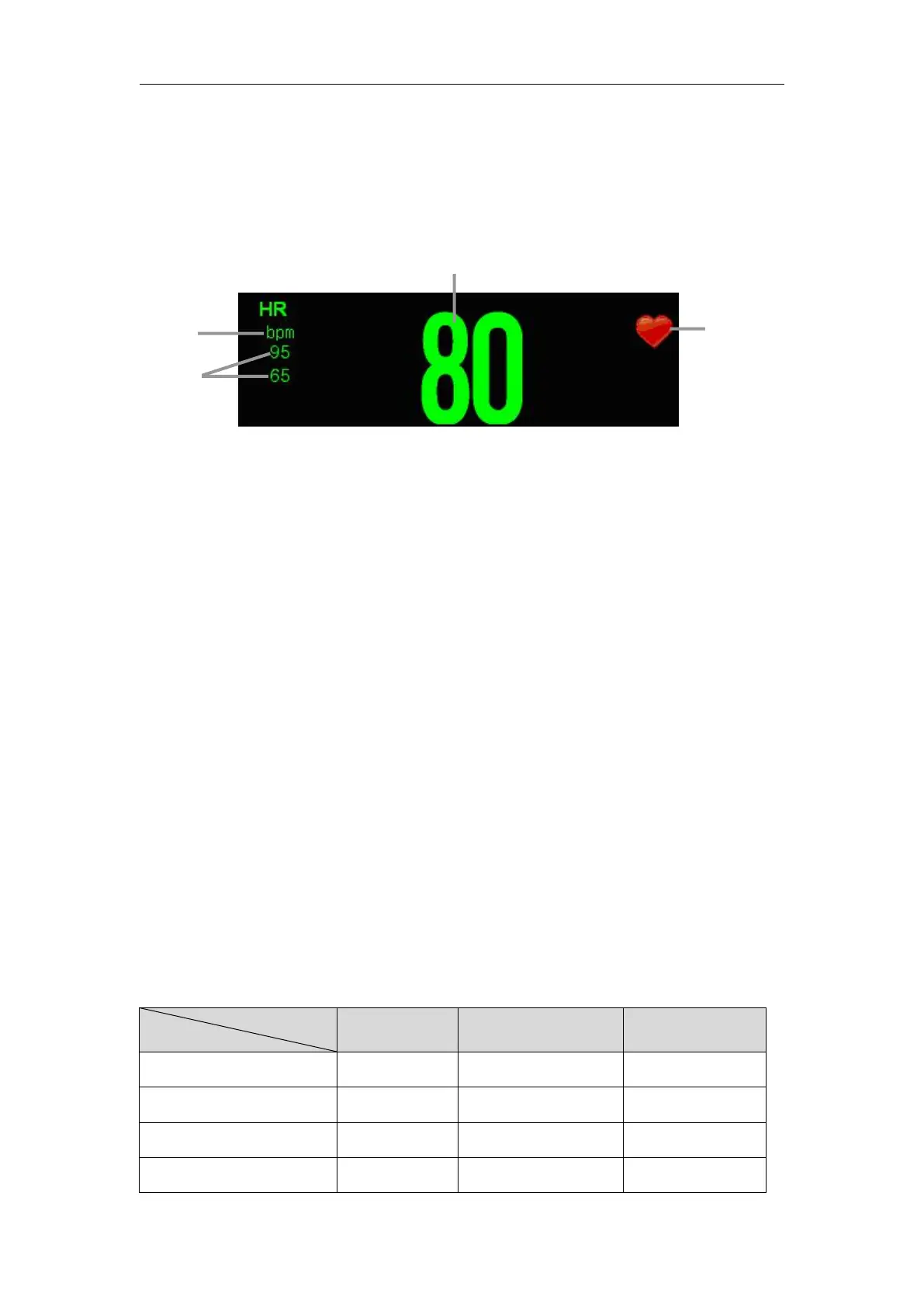

HR unit
HR alarm limit
HR value
Heartbeat icon
