AT682/683 User’s Manual
18
3.1.3 VFD

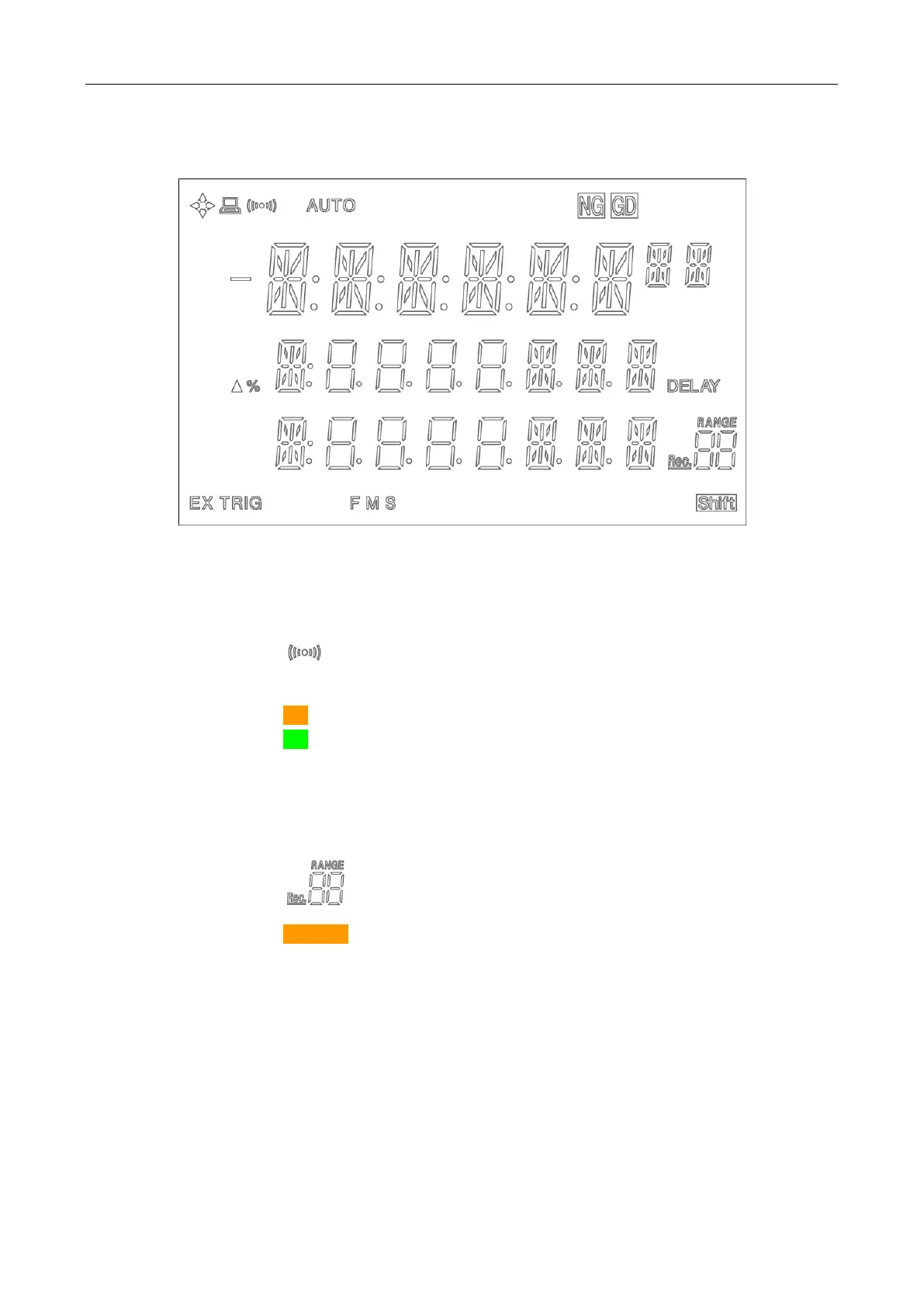

Figure 3-4 VFD
! Applent‟s Trade Mark.
  Remote Interface (RS232) ON
Beep Enabled.
AUTO Auto ranging enabled.
NG Pass.
GD Fail.
EX External Trigger enabled.
TRIG Manual (Remote) Trigger enabled.
F M S Rate (Fast, Medium and Slow)
DELAY Timer Started.
Current Range Number or Record Number.
Shift Shifted to the 2
nd
Function.
